- T Regulation - Outlander MAX 1000 EFI 4X4 - 3URA - XU+ Package - Platinum Silver Satin, 2024

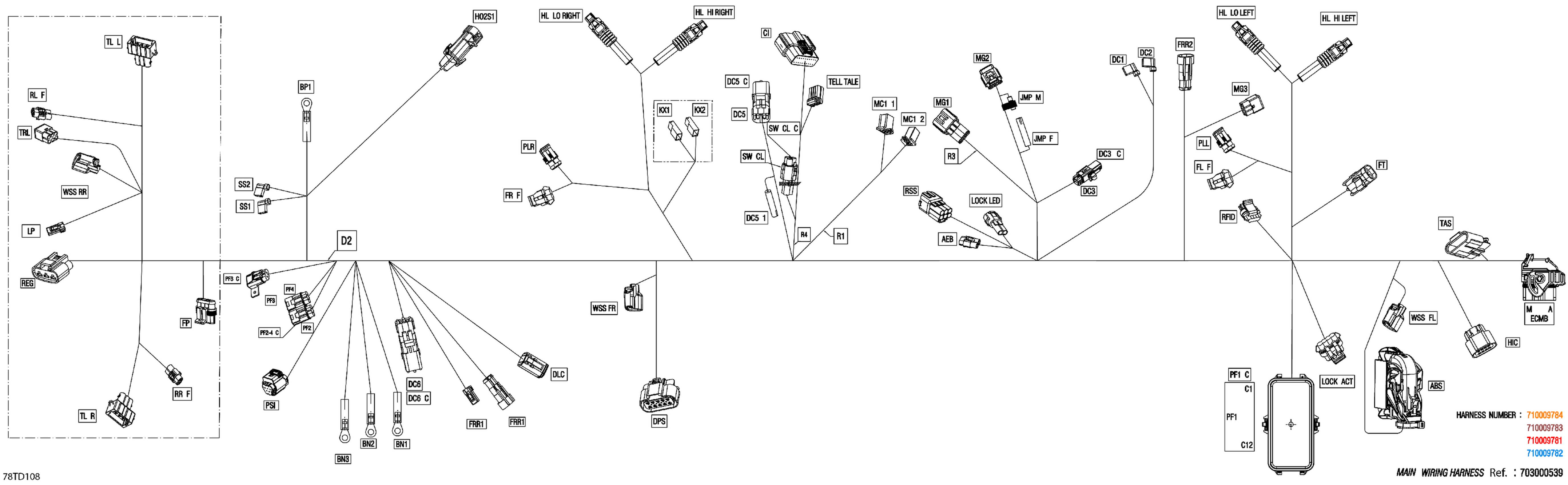

08- Electric - Main Harness - 710009784
Can-Am T Regulation - Outlander MAX 1000 EFI 4X4 - 3URA - XU+ Package - Platinum Silver Satin, 2024 08- Electric - Main Harness - 710009784 Diagram
#
200
Main Wiring Harness
710009784
Unavailable
AEB
Sumitomo Female Connector 2 Cavities
710008152
Unavailable
AEB
Wire Seal
710000402
Unavailable
AEB
Female Terminal
409012100
Unavailable
BN1
Terminal
710000913
Unavailable
BN2
Open Barrel Terminal
278001392
Unavailable
BP1
Open Barrel Terminal
278001392
Unavailable
Cl
Female Housing 20 Circuits
278002858
Unavailable
Cl
Sealing Cap
278002860
Unavailable
Cl
Female Terminal
515178018
Unavailable
D2
Diode
409012700
Unavailable
DC1
Female Terminal
409010300
Unavailable
DC2
Female Terminal
409010300
Unavailable
DC3
Female Housing, 2 Circuits
515175658
Unavailable
DC3
Female Terminal
515175231
Unavailable
DC3 C
Male Housing, 2 Circuits
710000667
Unavailable
DC5
Male Connector, 2 Circuits
278000220
Unavailable
DC5
Wire Seal
278001065
Unavailable
DC5
Female Terminal
278000223
Unavailable
DC5 1
Insulated Sheath
278001007
Unavailable
DC5 1
Female Terminal
710000421
Unavailable
DC5 C
Clip
710000992
Unavailable
DC5 C
Female Housing, 2 Circuits
278000217
Unavailable
DC5 C
Wire Seal
278000216
Unavailable
DC6
Male Connector, 2 Circuits
278000220
Unavailable
DC6
Wire Seal
278001065
Unavailable
DC6
Female Terminal
278000223
Unavailable
DC6 C
Clip
710000992
Unavailable
DC6 C
Female Housing, 2 Circuits
278000217
Unavailable
DC6 C
Wire Seal
278000216
Unavailable
DLC
Female Housing 6 Circuits
710002706
Unavailable
DLC
Lock
710002705
Unavailable
DLC
Female Terminal
710005438
Unavailable
DLC
Female Terminal
710005439
Unavailable
DPS
Female Housing
710004989
Unavailable
DPS
Lock
710001222
Unavailable
DPS
Lock | PACKARD 15430900
710005098
Unavailable
DPS
Plug
710002075
Unavailable
DPS
Wire Seal
278002186
Unavailable
DPS
Seal
710003153
Unavailable
DPS
Terminal
710001873
Unavailable
DPS
Female Terminal
278002187
Unavailable
ECMB
Cover, 48 positions
710001591
Unavailable
ECMB
Molex Housing, 48 Circuits
710001967
Unavailable
ECMB
Plug
710001592
Unavailable
ECMB
Plug
710001593
Unavailable
ECMB
Female Terminal
710001589
Unavailable
ECMB
Terminal
710001728
Unavailable
ECMB
Female Terminal
710001727
Unavailable
FL F
Housing
710002177
Unavailable
FL F
Lock
710002043
Unavailable
FL F
Seal
278001482
Unavailable
FL F
Female Terminal
710001134
Unavailable
FP
Female Housing, 4 Circuits
409209700
Unavailable
FP
Wire Seal
278001013
Unavailable
FP
Wire Seal
515176621
Unavailable
FP
Female Terminal
278001014
Unavailable
FP
Female Terminal
710001340
Unavailable
FR F
Housing
710002177
Unavailable
FR F
Lock
710002043
Unavailable
FR F
Seal
278001482
Unavailable
FR F
Female Terminal
710001134
Unavailable
FRR1
Female Housing, 2 Circuits
515175658
Unavailable
FRR1
Female Terminal
710003896
Unavailable
FT
Clip Bracket Connector (edge)
409210100
Unavailable
FT
Female Housing, 2 Circuits
278000217
Unavailable
FT
Wire Seal
278000218
Unavailable
FT
Male Terminal
409004300
Unavailable
HIC
Housing
710001928
Unavailable
HIC
Lock
710001222
Unavailable
HIC
Cap
710001225
Unavailable
HIC
Seal
710001233
Unavailable
HIC
Seal Wire
710001332
Unavailable
HIC
Terminal
710001229
Unavailable
HIC
Terminal
710001228
Unavailable
HL HI LEFT
Housing
710007660
Unavailable
HL HI LEFT
Lock
710001152
Unavailable
HL HI LEFT
Wire Seal
710001163
Unavailable
HL HI LEFT
Female Terminal
710001164
Unavailable
HL HI RIGHT
Housing
710007660
Unavailable
HL HI RIGHT
Lock
710001152
Unavailable
HL HI RIGHT
Wire Seal
710001163
Unavailable
HL HI RIGHT
Female Terminal
710001164
Unavailable
HL LO LEFT
Female Housing, 2 Circuits
515177192
Unavailable
HL LO LEFT
Lock
710001152
Unavailable
HL LO LEFT
Wire Seal
710001163
Unavailable
HL LO LEFT
Female Terminal
710001164
Unavailable
HL LO RIGHT
Female Housing, 2 Circuits
515177192
Unavailable
HL LO RIGHT
Lock
710001152
Unavailable
HL LO RIGHT
Wire Seal
710001163
Unavailable
HL LO RIGHT
Female Terminal
710001164
Unavailable
HO2S1
Housing
710002466
Unavailable
HO2S1
Lock
710002469
Unavailable
HO2S1
Seal
278001482
Unavailable
HO2S1
Terminal
710000736
Unavailable
HO2S1
Gold Terminal
710002597
Unavailable
JMP F
Insulated Sheath
278001007
Unavailable
JMP F
Female Terminal
710000421
Unavailable
JMP M
Insulated Sheath
278001008
Unavailable
JMP M
Female Terminal
278002261
Unavailable
KX1
Female Terminal Housing, 1 Circuit
409010400
Unavailable
KX1
Female Terminal
409010100
Unavailable
KX2
Female Terminal Housing, 1 Circuit
409010400
Unavailable
KX2
Female Terminal
409010100
Unavailable
LOCK LED
Wire Seal
710000402
Unavailable
LOCK LED
Male Terminal
409011300
Unavailable
LOCK ACT
Housing-Female
710005392
Unavailable
LOCK ACT
Lock
710005394
Unavailable
LOCK ACT
Seal
278001482
Unavailable
LOCK ACT
Female Terminal
710001134
Unavailable
LP
Female Housing, 2 Circuits
515175658
Unavailable
LP
Female Terminal
710003896
Unavailable
MC1 1
Female Housing
710004047
Unavailable
MC1 1
Terminal
710002315
Unavailable
MC1 2
Female Housing
710004048
Unavailable
MC1 2
Terminal
710002315
Unavailable
MG1
Connector
710007097
Unavailable
MG1
Wire Seal
710000402
Unavailable
MG1
Male Terminal
409011300
Unavailable
MG2
Connector
710007098
Unavailable
MG2
Seal
409012300
Unavailable
MG2
Wire Seal
710000402
Unavailable
MG2
Female Terminal
409012100
Unavailable
MG3
Female Housing 6 Circuits
710001445
Unavailable
MG3
Wire Seal
710000402
Unavailable
MG3
Female Terminal
409012100
Unavailable
PF1
Fuse Box Base Ass´y
415129856
Unavailable
PF1
Cap
710000840
Unavailable
PF1
Wire Seal
278000999
Unavailable
PF1
Seal
415128501
Unavailable
PF1
Female Terminal
515177009
Unavailable
PF1
Female Terminal
515177012
Unavailable
PF1 C
Fuse Cover
710001026
Unavailable
PF1 C
Fuses Decal
710008570
Unavailable
PF1 C
Foam
278002172
Unavailable
PF1 C-SP1
Little Fuse, 7.5 Amperes
710000743
Unavailable
PF1 C-SP2
Little Fuse, 10 Amperes
710000744
Unavailable
PF1 C-SP3
Little Fuse, 10 Amperes
710000744
Unavailable
PF1 C-SP4
Little Fuse, 20 Amperes
710000746
Unavailable
PF1-F1
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F10
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F12
Fuse, 25 Amps
710002590
Unavailable
PF1-F2
Little Fuse, 7.5 Amperes
710000743
Unavailable
PF1-F3
Little Fuse, 20 Amperes
710000746
Unavailable
PF1-F4
Little Fuse, 20 Amperes
710000746
Unavailable
PF1-F5
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F6
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F7
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F8
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-F9
Little Fuse, 10 Amperes
710000744
Unavailable
PF1-RY1
Relay, 30 AMP
515176774
Unavailable
PF1-RY2
Relay
715900824
Unavailable
PF1-RY3
Relay
715900824
Unavailable
PF1-RY4
Relay, 30 AMP
515176774
Unavailable
PF1-RY5
Relay, 30 AMP
515176774
Unavailable
PF1-RY6
Relay
715900824
Unavailable
PF2
Fuse
710001613
Unavailable
PF2
Fuse Holder
278001325
Unavailable
PF2
Female Terminal
710000113
Unavailable
PF4
Fuse
710001613
Unavailable
PF4
Fuse Holder
278001325
Unavailable
PF4
Female Terminal
710000357
Unavailable
PLL
Female Housing, 2 Circuits
409209500
Unavailable
PLL
Wire Seal
515176621
Unavailable
PLL
Female Terminal
710001340
Unavailable
PLR
Female Housing, 2 Circuits
409209500
Unavailable
PLR
Wire Seal
515176621
Unavailable
PLR
Female Terminal
710001340
Unavailable
R1
Resistor
710005179
Unavailable
R3
Resistor
710007300
Unavailable
R4
Resistor
710008735
Unavailable
REG
Female Housing, 3 Circuits
710000879
Unavailable
REG
Cap
710000882
Unavailable
REG
Seal
710001932
Unavailable
REG
Terminal
710001934
Unavailable
RFID
Housing
710001161
Unavailable
RFID
Lock
710001162
Unavailable
RFID
Wire Seal
710001163
Unavailable
RFID
Female Terminal
710001164
Unavailable
RL F
Wire Seal
710000402
Unavailable
RL F
Female Terminal
409012100
Unavailable
RR F
Wire Seal
710000402
Unavailable
RR F
Female Terminal
409012100
Unavailable
RSS
Male Terminal Housing, 6 Circuits
710000835
Unavailable
RSS
Wire Seal
710000402
Unavailable
RSS
Male Terminal
409011300
Unavailable
SS1
Female Terminal
409010300
Unavailable
SS2
Female Terminal
409010300
Unavailable
SW CL
Wire Seal
710000402
Unavailable
SW CL
Male Terminal
409011300
Unavailable
SW CL C
Female Terminal Housing, 3 Circ.
710000153
Unavailable
SW CL C
Cap
710000080
Unavailable
TAS
Housing
710001231
Unavailable
TAS
Lock 6 Positions
710005296
Unavailable
TAS
Seal
710001233
Unavailable
TAS
Terminal
710001224
Unavailable
TELL TALE
Female Terminal Housing, 4 Circuits
515175845
Unavailable
TELL TALE
Female Terminal
515175231
Unavailable
TL L
Connector, 3 Positions
710003167
Unavailable
TL L
Seal
415128501
Unavailable
TL L
Female Terminal
278000998
Unavailable
TL R
Connector, 3 Positions
710003167
Unavailable
TL R
Seal
415128501
Unavailable
TL R
Female Terminal
278000998
Unavailable
TRL
Female Housing, 6 Circuits
710000081
Unavailable
TRL
Wire Seal
710000402
Unavailable
TRL
Seal
409012300
Unavailable
TRL
Female Terminal
409012100
Unavailable
