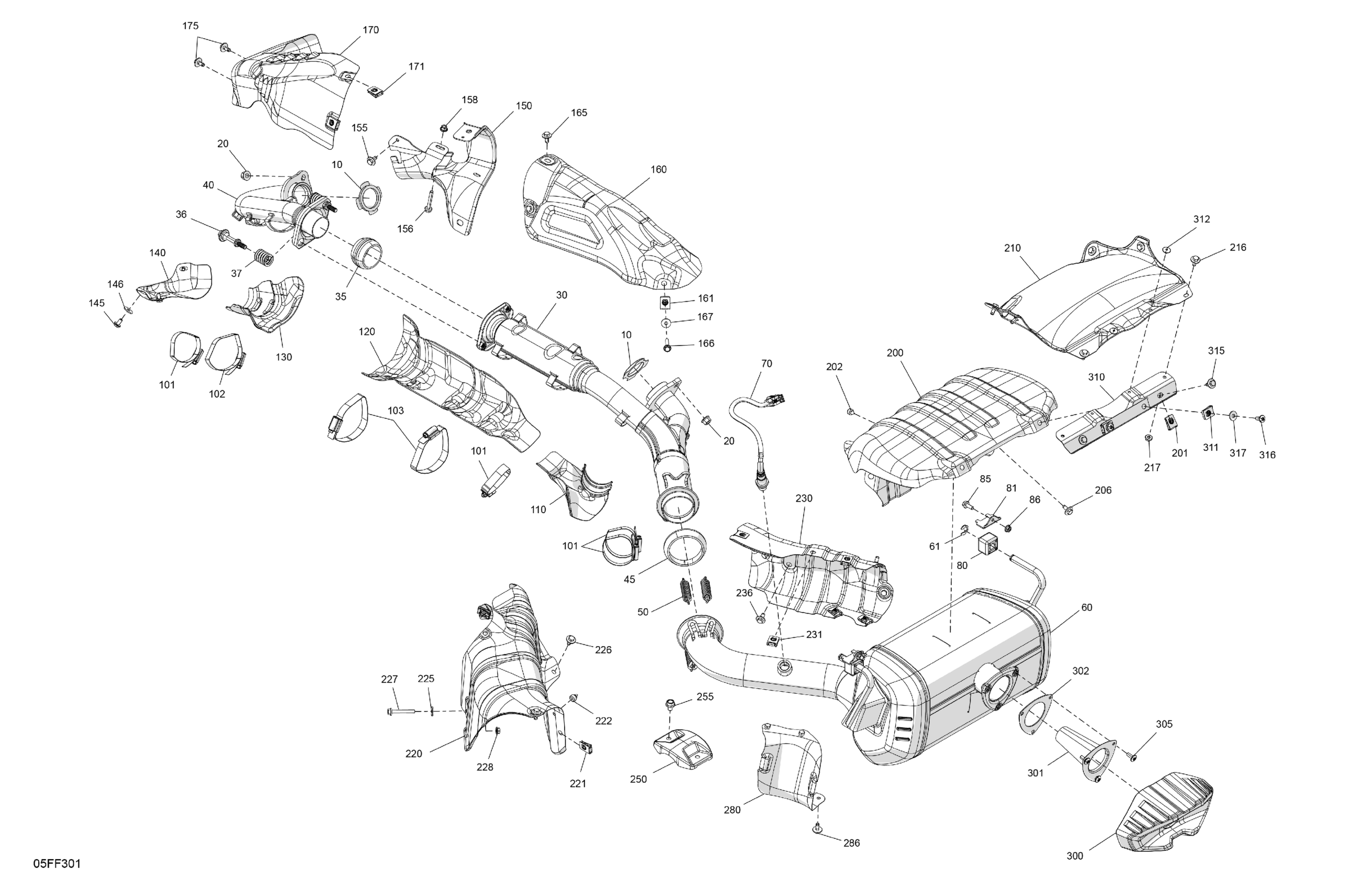

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LTC - Loft Green Satin - 2026 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Gasket

707602697

$5.38

20

Hex. Flange Nut M8

233081416

$1.63

30

Rear Exhaust Pipe

707603659

$642.28

35

Exhaust Gasket

707603774

$13.83

36

Hex. Flange Screw M8 X 38

250001306

$1.65

37

Compression Spring

707603775

$32.28

40

Front Exhaust Pipe

707602613

$134.58

45

Exhaust Gasket

707603179

$8.29

50

Spring

707601834

$6.20

60

Exhaust Muffler

707604193

$821.51

61

External Retaining Ring

293370184

$1.99

70

Oxygen Sensor

707600872

$115.67

80

Vibration Damper

707603000

$7.60

81

Muffler Support

707603200

$16.12

85

Hex Flange Screw M6 X 16

250000906

$4.39

86

Hex. Flange Nut M6

233161414

$1.74

101

Tridon Gear Clamp

293650337

$11.31

102

Tridon Gear Clamp

293650338

$12.91

103

Tridon Gear Clamp

293650339

$11.31

110

Heat Shield

707603823

$83.05

120

Heat Shield

707603822

$83.05

130

Heat Shield

707603821

$83.05

140

Heat Shield

707603845

$50.74

145

Hex. Flange Screw M6 X 12

250000574

$2.06

146

Flat Washer

250200082

$0.35

150

Heat Shield Support

707603607

$16.89

155

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

156

Hex. Flange Screw M6 X 45

207664544

$1.07

158

Hex. Flange Nut M6

233061414

$1.34

160

Heat Shield

707602584

$36.89

161

Panel Nut M6 X 1.0

250100208

$1.07

165

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

166

Hex. Flange Screw M6 X 45

207664544

$1.07

167

Flat Washer 6 mm

234062410

$0.64

170

Heat Shield

707603265

$36.89

171

Panel Nut M6 X 1.0

250100208

$1.07

175

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

200

Heat Shield

707603239

$36.89

201

Panel Nut M6 X 1.0

250100208

$1.07

202

Rubber Bumper

293830005

$5.33

206

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

210

Heat Shield

707603768

$64.99

216

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

217

Hex. Flange Nut M6

233161414

$1.74

220

Heat Shield

707603237

$36.89

221

Panel Nut M6 X 1.0

250100208

$1.07

222

Rubber Bumper

293830005

$5.33

225

Flat Washer 6 mm

234062410

$0.64

226

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

227

Hex. Flange Screw M6 X 45

207664544

$1.07

228

Hex. Flange Nut M6

233061414

$1.34

230

Heat Shield

707603003

$36.89

231

Panel Nut M6 X 1.0

250100208

$1.07

236

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

250

Heat Shield

707603005

$12.91

255

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

280

Heat Shield

707603006

$12.91

286

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

300

Muffler Trim

707603759

$83.05

301

Spark Arrestor

707603520

$9.29

302

Exhaust Gasket

707603102

$8.29

305

Torx Head Screw M6 X 16

250000717

$1.74

310

Heat Shield Support

707603767

$6.45

311

Panel Nut M6 X 1.0

250100208

$1.07

312

Pop Rivet

293150310

$0.57

315

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.09

316

Torx Head Screw M6 X 16

250000717

$1.74

317

Stainless Steel Flat Washer

234062670

$1.74
