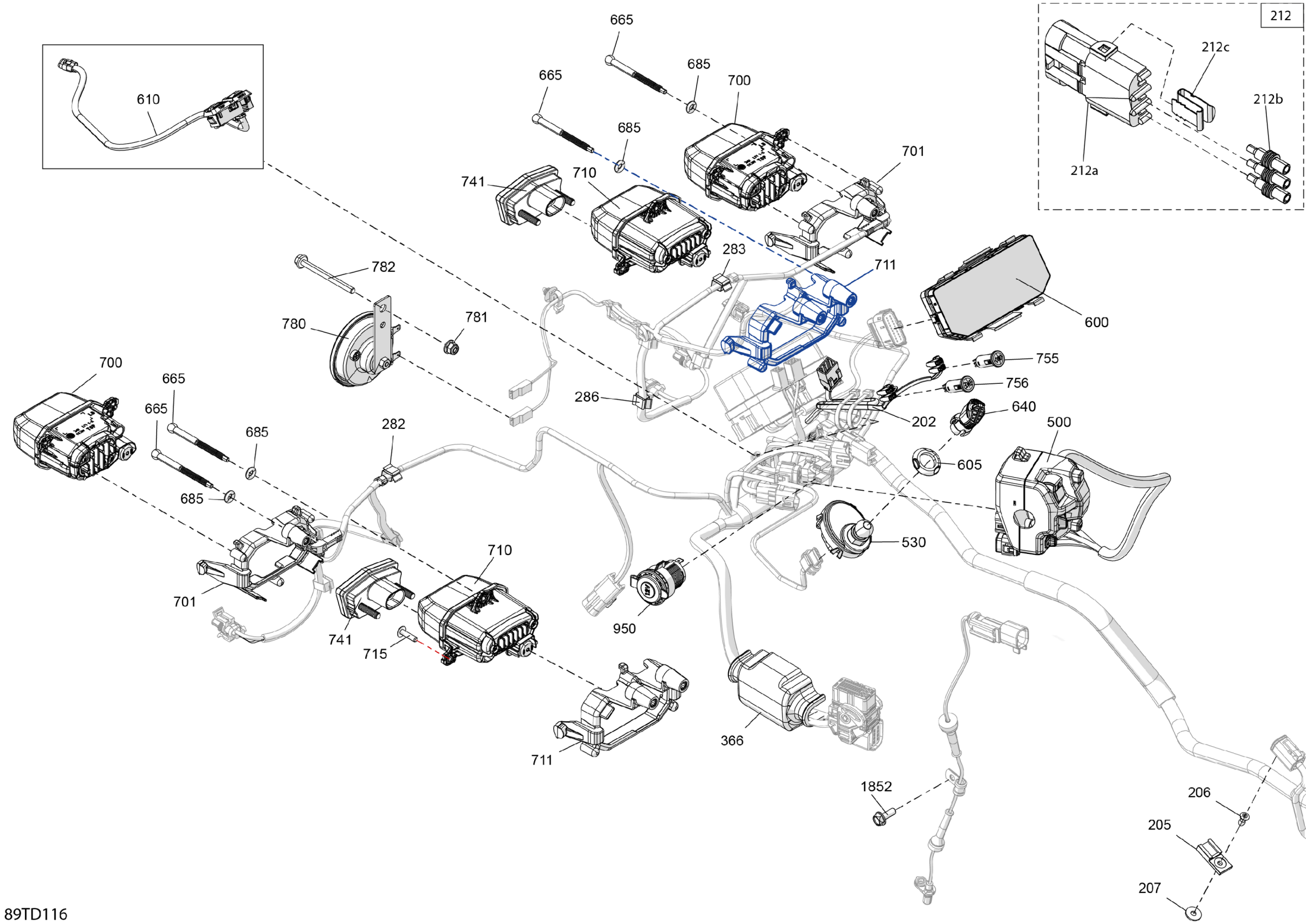

Can-Am Outlander 1000 EFI 4X4 - 3YRA - X XC Package - Chalk, 2024 Electric - Front Section Diagram

Description

Price

202

Tell Tale Wiring Harness

710007825

$23.05

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

282

Clip

710010204

$1.45

283

Clip

710010204

$1.45

286

Clip

710010204

$1.45

366

Soft Protection Sleeve

710007255

$2.98

500

LH Front Multifunction Switch

710006945

$239.97

530

Terminal DESS One Wire

515179305

$60.42

540

Flange Elastic Nut M5

233251434

$1.66

600

Multifunction Gauge Mid

710008297

$355.35

605

Specialized Nut

278004274

$2.72

610

Multifunction Switch

710008638

$64.58

640

Grey, Can-Am DESS Key

515179384

$55.35

665

Ajustment Screw

710005837

$6.45

685

O-Ring

293300192

$3.85

700

Low Beam Light

710008088

$156.89

701

Exterior Headlight Support

710008396

$27.66

710

HIgh Beam Light

710006910

$156.89

711

Interior Headlight Support

710008394

$9.22

715

Torx-Truss Pt K40 X 16

250000759

$1.74

741

Amber Light Turn Signal

710007217

$17.66

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

950

DC Outlet

710001248

$31.17

1852

Hex. Flange Screw M6 X 16

210261640

$1.74
