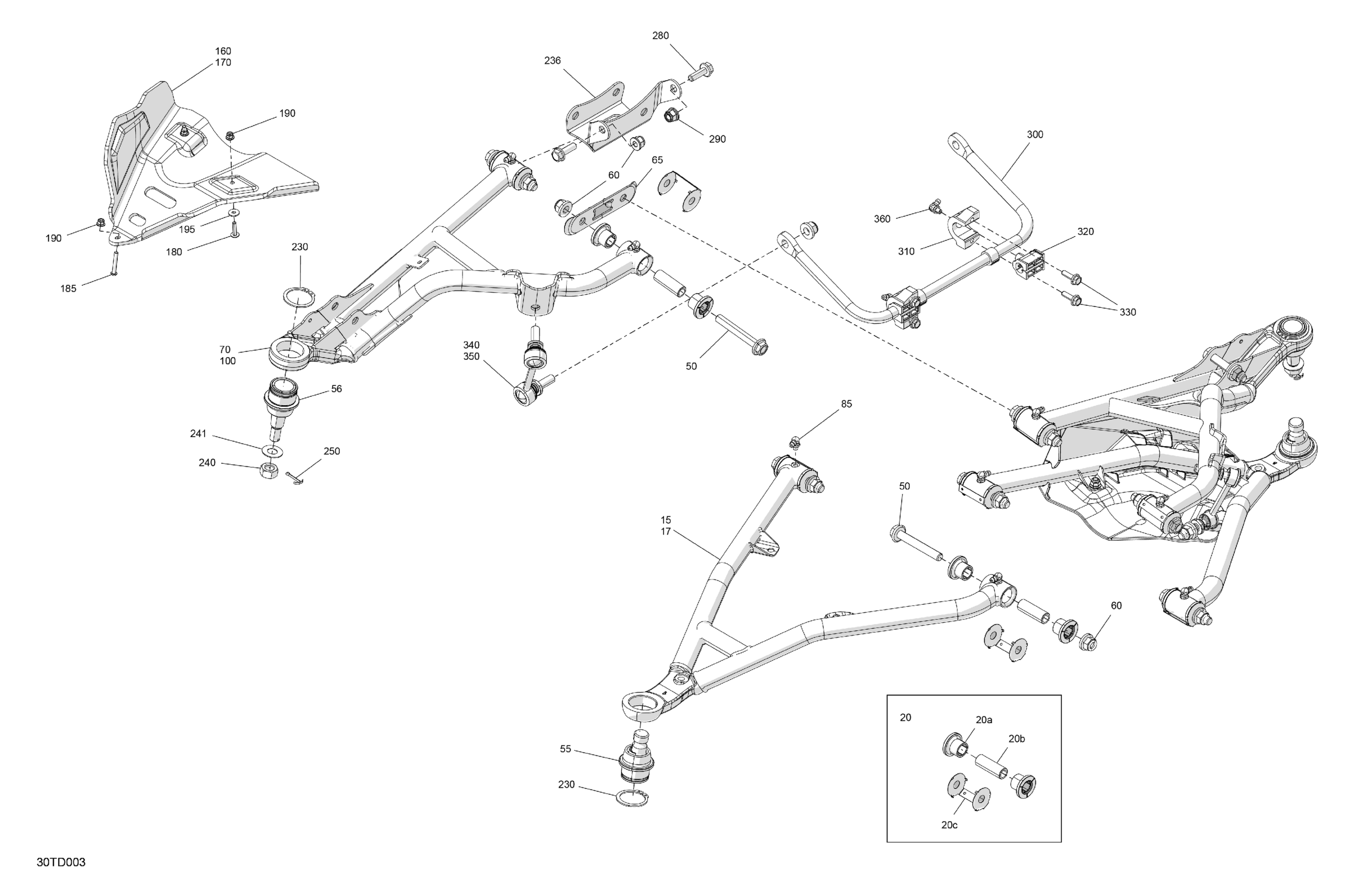

Can-Am Outlander 850 EFI 4X4 - 4SRA - Hunting Edition - Wildland Camo, 2024 Suspension - Front Components Diagram

LH Lower Suspension Arm

706204637

$156.89

RH Lower Suspension Arm

706204638

$156.89

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Hex. Flange Screw M10 X 70

207607046

$2.91

Ball Joint

706202045

$35.35

Ball Joint

706202044

$35.14

Hex. Flange Elastic Nut M10

233201436

$1.74

Front Suspension Cross Member

706205645

$4.91

RH Upper Suspension Arm

706204572

$156.89

Grease Fitting 90°

293550056

$1.37

LH Upper Suspension Arm

706204571

$156.89

LH Front A-Arm Protector | Hunting Edition

715004822

$156.74

LH Front A-Arm Protector | Hunting Edition

715004822

$156.74

Torx Screw M6 X 25

250000758

$1.74

Screw-torx Button Head M6 X 40

235564054

$6.46

Hex. Flange Elastic Nut M6

233261494

$1.26

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Circlip

293370035

$2.55

Upper Front Holder

705203247

$14.37

Hex Nut M12

250100239

$1.64

Hardened Washer

706200281

$2.34

Cotter Pin

211400017

$0.25

Hex. Flange Screw M8 X 25

207682544

$0.90

Hex. Flange Elastic Nut M8

233281414

$1.14

Sway Bar

706203715

$124.58

Clamp

706203929

$27.66

Stabilizer Bar Bushing

706204796

$9.22

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

LH Sway Bar Link

706203290

$67.66

RH Sway Bar Link

706203291

$67.66

Grease Fitting 90°

293550056

$1.37
