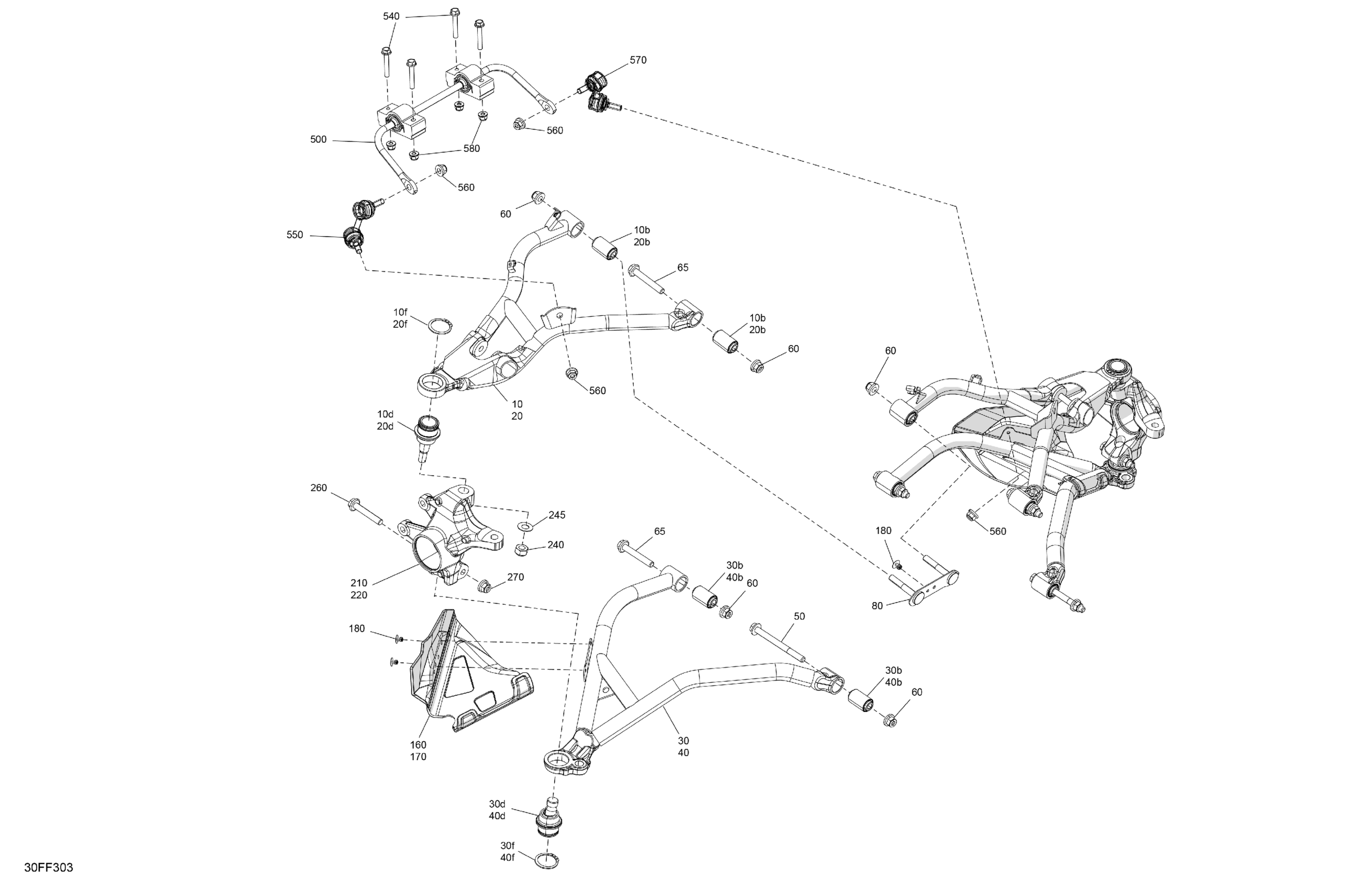

Can-Am OUTLANDER - 4X4 - BACKCOUNTRY - 1000R - 4NTA - CALI - Dark Camo - 2026 Suspension - Front Components Diagram

LH Upper Suspension Arm Ass'y | Includes 10 to 10f

715010989

$156.89

Suspension Arm Bushing

706004511

$12.82

Ball Joint

706202044

$35.14

Circlip

293370035

$2.55

RH Upper Suspension Arm Ass'y | Includes 20 to 20f

715010990

$156.89

Suspension Arm Bushing

706004511

$12.82

Ball Joint

706202044

$35.14

Circlip

293370035

$2.55

LH Lower Suspension Arm Ass'y | Includes 30 to 30f

715010948

$151.04

Suspension Arm Bushing

706004511

$12.82

Ball Joint

706202045

$35.35

Circlip

293370035

$2.55

RH Lower Suspension Arm As | Includes 40 to 40f

715010949

$156.89

Suspension Arm Bushing

706004511

$12.82

Ball Joint

706202045

$35.35

Circlip

293370035

$2.55

Hex Flange Screw DIN.6921

230601046

$2.20

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M10 X 65

207606536

$3.61

Suspension Arm Anchorage

705208352

$124.58

LH Front Suspension Arm Guard

706206374

$96.89

RH Front Suspension Arm Guard

706206375

$96.89

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

LH Knuckle

706203212

$175.35

RH Knuckle

706203213

$175.35

Hex. Elastic Hex. Nut M12

250100089

$0.39

Hardened Washer

706200281

$2.34

Hex. Flange Screw M10 X 60

207606044

$2.78

Hex. Flange Elastic Nut M10

233201436

$1.74

Stabilizer Bar Ass'y

706206392

$96.89

Hex. Flange Screw M8 X 50

207685044

$1.39

LH Stabilizer Bar Link

706204268

$67.66

Hex. Flange Elastic Nut M10

233201436

$1.74

RH Stabilizer Bar Link

706204269

$67.66

Hex. Flange Elastic Nut M8

233281414

$1.14
