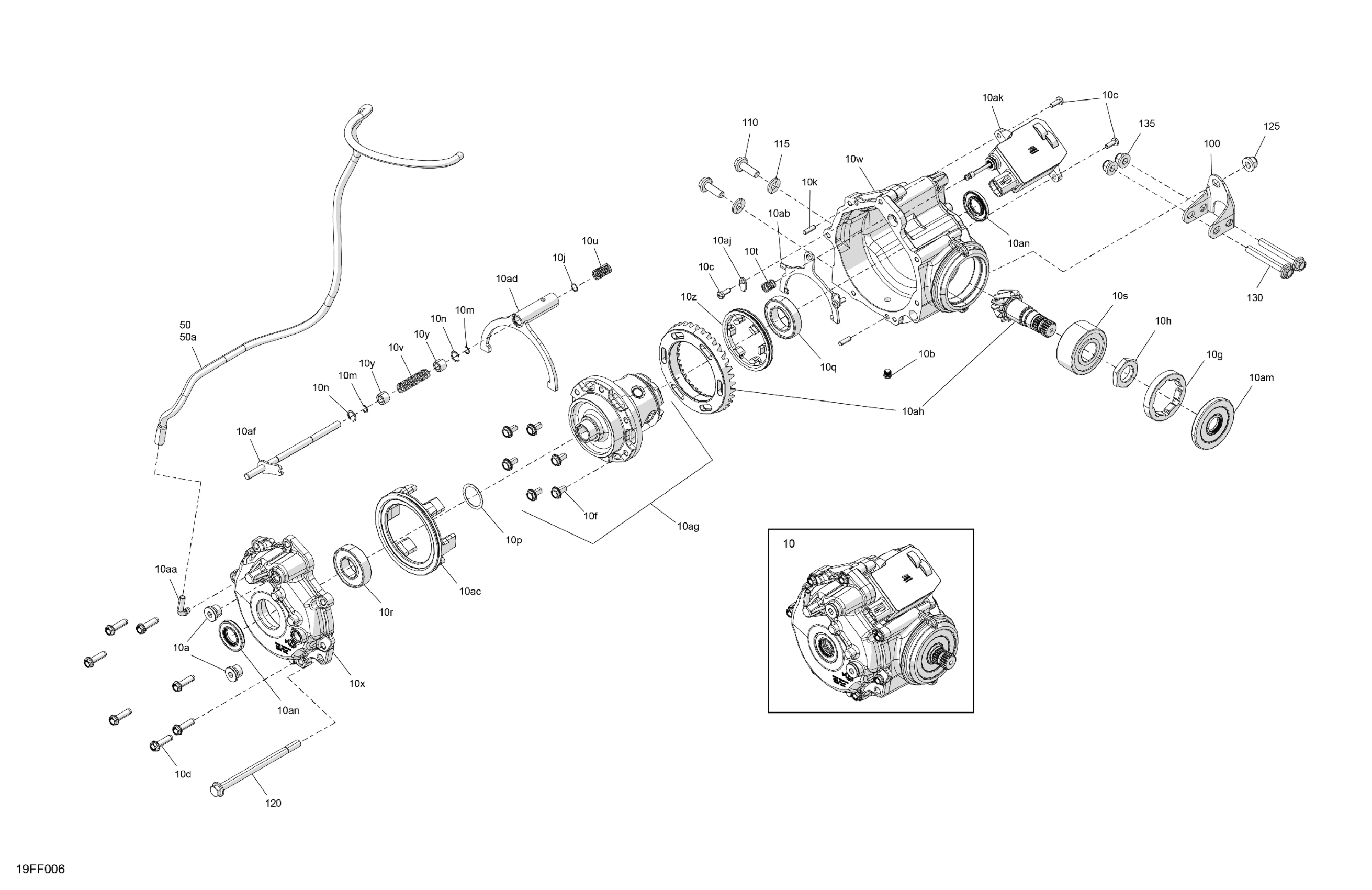

Can-Am Off-Road T Regulation - OUTL-PRO - 4X4 - XU - HD7 - 1MTD - Compass Green - 2026 04- Drive - Front - Differential Parts Diagram

Front Differential Ass'y | Includes 10 to 10an This part replaces 705403887.

705404272

Unavailable

Fill Level Plug

705501889

$20.49

Fill Level Plug M10

715900563

$27.49

Torx Screw M6 X 16

705402845

$11.05

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

Custom Hex Screw Flange Head

715900798

$2.99

Nut M75 X 1.5

705401819

$23.99

Nut M27 X 1.5

705401820

$20.99

Thrust Washer | Not Shown

715900801

$35.99

Dowel Pin

715900559

$6.67

Ring External Shaft

715900719

$28.99

Ring, Internal Spiral Housing

715900720

$28.99

Shim | 4X4

705401604

$57.99

Ball Bearing

705402847

$49.99

Ball Bearing | 4X4

705401606

$51.99

Ball Bearing

715900721

$67.99

Compression Spring | Not Shown

715900802

$31.99

Locker Spring | Not Shown

715900803

$11.99

Spring

715900722

$71.99

Cover

715901017

$144.99

Cover

715901019

$144.99

Bushing

715900725

$19.99

Dog Lock | Not Shown

715900806

$42.99

Vent Valve

705401935

$16.49

Front Differential Pivot Fork | Not Shown

715900807

$48.99

Ring Gear Connector

715900819

$184.99

Disconnect Fork

715900727

$83.99

Shift Rail

715900728

$31.99

Differential Sub-Assembly

715900832

$708.99

Ring Gear And Pinion Set

715900820

$419.99

Retainer Fork | Not Shown

715900766

$14.49

Actuator

715900952

$234.99

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

Oil Seal

705401836

$7.51

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

Not Available As Spare Parts

XXX

Unavailable

Support

705402706

$8.60

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

Conical Spring Washer 10 mm

234201474

$1.69

Hex. Flange Screw M10 X 160

230606046

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 75

207607544

$7.29

Hex. Flange Elastic Nut M10

233201436

$2.11
