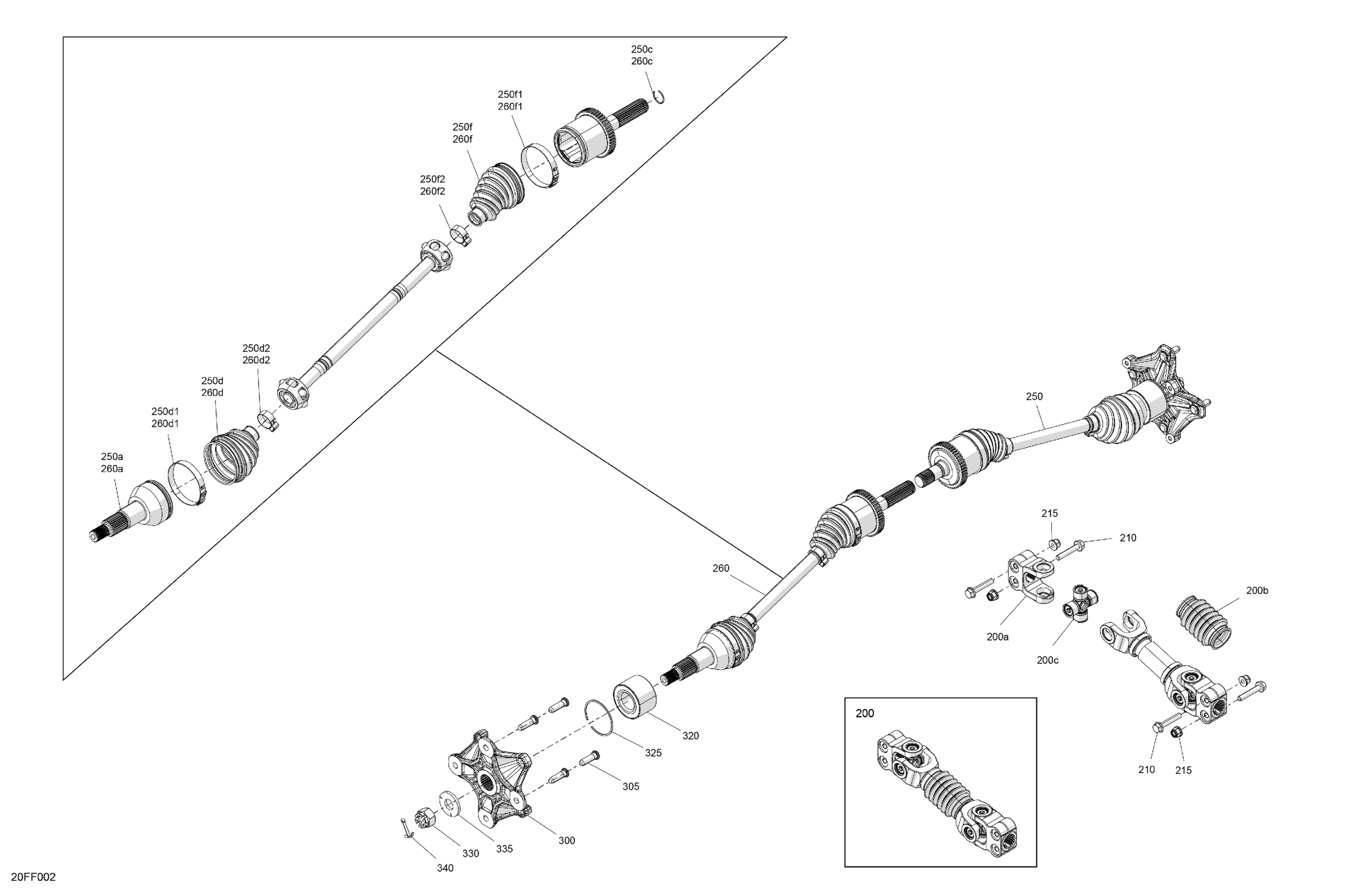

Can-Am OUTL-PRO - 4X4 - XU - HD7 - 1MTD - Compass Green - 2026 Drive - Front - Common Parts Diagram

Description

Price

200

Front Drive Axle

705403806

$184.58

200a

Connecting Yoke

715900998

$36.89

200b

Drive Shaft Boot Kit

715900999

$13.83

200c

Universal Joint Ass'y

715901000

$46.12

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

215

Hex. Elastic Flange Nut M8

233281416

$1.25

250

RH Front CV Joint | Includes 250 to 250f

705402613

$233.82

250a

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

250c

Circlip Joint

715500455

$5.52

250d

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$41.51

250d1

Clamp Large

715500472

$5.52

250d2

Clamp Small

715500473

$4.60

250f

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$41.51

250f1

Clamp Large

715500474

$5.52

250f2

Clamp Small

715500473

$4.60

260

LH Front CV Joint | Includes 260 to 260f

705402612

$233.82

260a

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

260c

Circlip Joint

715500455

$5.52

260d

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$41.51

260d1

Clamp Large

715500472

$5.52

260d2

Clamp Small

715500473

$4.60

260f

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$41.51

260f1

Clamp Large

715500474

$5.52

260f2

Clamp Small

715500473

$4.60

300

Wheel Hub

705503257

$101.51

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

320

Ball Bearing

293350150

$51.93

325

Circlip

293370019

$4.98

330

Hex. Flange Castellated Nut M18

232291413

$2.82

335

Conical Spring Washer M18

250200171

$5.28

340

Cotter Pin

250400071

$1.74
