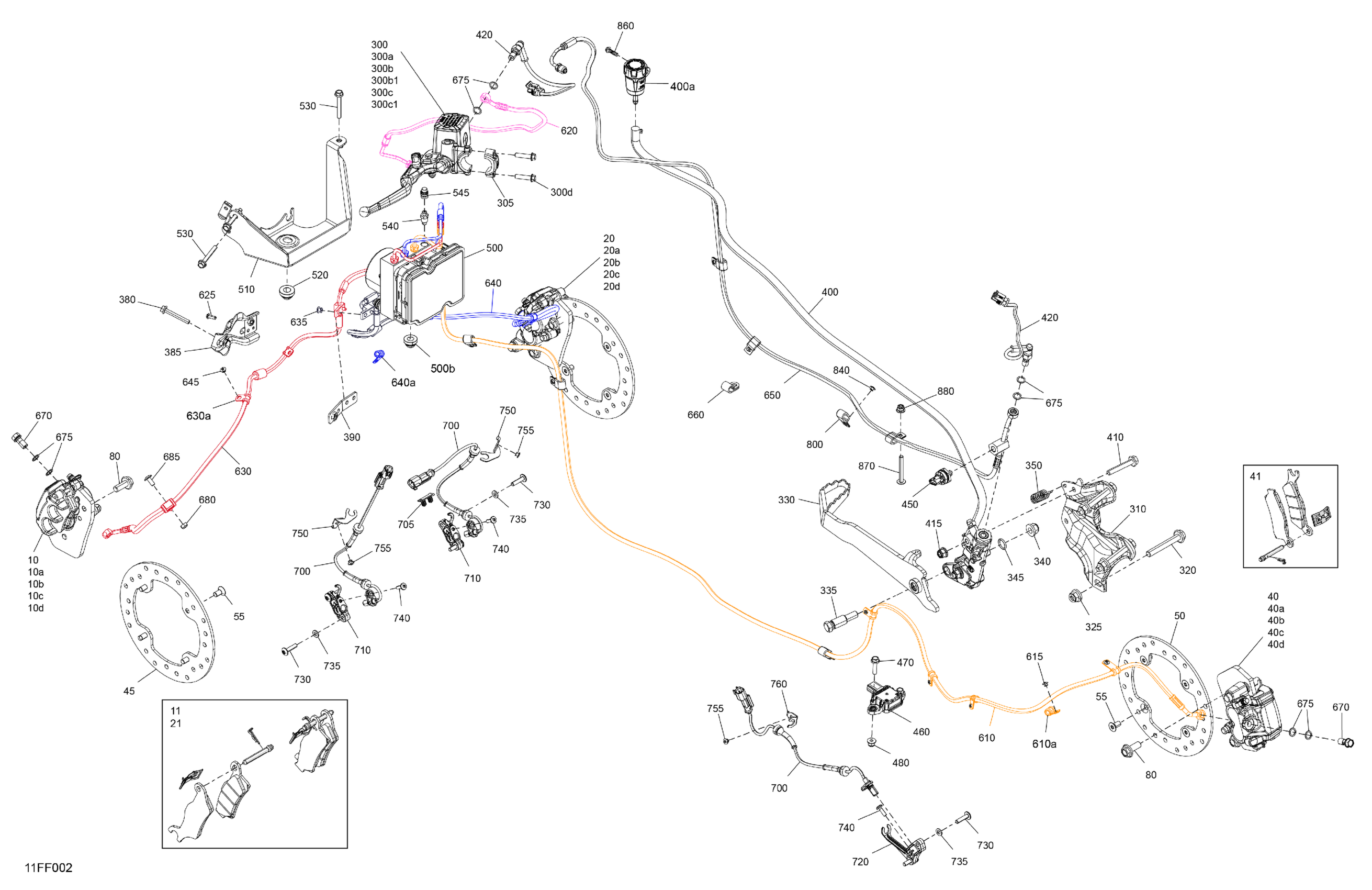

Can-Am OUTL-PRO - 4X4 - XU - HD7 - 1MTD - Compass Green - 2026 Mechanic - Brake System Diagram

LH Front Brake Caliper | Includes 10 to 10d

705601808

$250.72

LH Pad Brake

705602070

Unavailable

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$5.90

Retaining Spring

705601018

$7.55

LH/RH Pads Kit

705602167

$98.48

RH Front Brake Caliper | Includes 20 to 20d

705601809

$250.72

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$5.90

Retaining Spring

705601018

$7.55

LH/RH Pads Kit

705602167

$98.48

RH Rear Brake Caliper | Includes 40 to 40d

705601811

$250.72

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$5.90

Retaining Spring

705601018

$7.55

RH Pads Kit

705602168

$49.22

Brake Disc

705602348

$83.55

Brake Disc

705602348

$83.55

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

Hex. Flange Screw M10 X 25

207502546

$2.00

LH Front Brake Master Cylinder | Includes 300 to 300d

705602312

$216.39

Master Cylinder Lever

705602075

$49.22

Clamp And Screw Kit

507032477

$22.36

Hex. Flange Screw M6 X 25

250000447

$2.00

Cap Set

219800096

$20.12

Screw M4 X 20

415129356

$2.10

Hex Flange Screw M6 X 25

229000711

$1.96

Clamp And Screw Kit

507032477

$22.36

Master Cylinder Support

705207200

$30.57

Hex. Flange Screw M10 X 70

207607046

$2.82

Hex. Flange Elastic Nut M10

233201436

$2.00

Brake Pedal

705602192

$52.96

Shoulder Screw M10

250000513

$6.36

Hex. Flange Elastic Nut M10

233201436

$2.00

O-Ring Seal

293300285

$3.79

Brake Pedal Spring

705600792

$8.42

Hex. Flange Screw M6 X 45

207664544

$1.22

Hose Support

705602234

$6.63

Hose Support

705602235

$6.63

Rear Brake Master Cylinder Ass'y | Includes 400 to 400a

705602297

$241.76

Brake Fluid Reservoir

705602137

$216.39

Hex. Flange Screw M8 X 50

207685044

$1.60

Hex. Flange Elastic Nut M8

233281414

$1.31

Brake Switch

705601669

$47.73

Oil Pressure Sensor

705602044

$87.28

Yaw Rate Sensor

710005658

$158.18

Hex. Flange Screw M6 X 25

207662554

$1.43

Hex. Flange Elastic Nut M6

233261466

$1.91

MOD ESP WET PROG & GROMMET KIT | Includes 500 to 500b

703501266

$1,379.07

Vibration Damper

710009090

$9.28

Module Support

705602000

$21.61

Vibration Damper

710009090

$9.28

Hex. Flange Screw M6 X 45

207664544

$1.22

Purge Screw M12 X 1.0

705602133

$10.97

Bleeder Bolt Cap

705601190

$4.15

RH Rear Caliper Hose | Includes 610 to 610a

705602240

$73.10

Clamp

293650256

$5.00

Pop Rivet 3/16 X ,425

293150293

$0.30

LH Front Master Cylinder Hose

705602247

$80.57

Screw-Torx Button Head M5 X 14

235551454

$7.09

LH Front Caliper Hose | Includes 630 to 630a

705602236

$73.10

Clamp

293650256

$5.00

Pop Rivet 3/16 X ,425

293150293

$0.30

RH Front Caliper Hose | Includes 640 to 640a

705602237

$73.10

Clamp

293650256

$5.00

Pop Rivet 3/16 X ,425

293150293

$0.30

Rear Master Cylinder Hose

705601835

$80.57

Hose Clamp

293650257

$5.00

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

Washer

414920600

$1.75

Pop Rivet 3/16 X ,425

293150293

$0.30

Torx Truss M6X14

250000789

$5.06

Speed Sensor

710006981

$75.34

Clip (double dart)

278002910

$10.30

Molded Sensor Support

705402628

$2.51

Molded Sensor Support

705601955

$2.51

Torx Truss Screw M6 X 25

250000807

$2.00

Flat Washer 6 mm

234061410

$1.19

Torx Screw K50 X 16

250000720

$1.60

Sensor Support

705602166

$2.51

Pop Rivet 3/16 X ,425

293150293

$0.30

Sensor Support

705601986

$2.51

Clamp

293650220

$0.81

Pop Rivet 3/16 X ,425

293150293

$0.30

Hex. Flange Screw K50 X 20

241152060

$1.81

Torx Screw M6 X 50

250000317

$2.00

Hex. Flange Elastic Nut M6

233261466

$1.91
