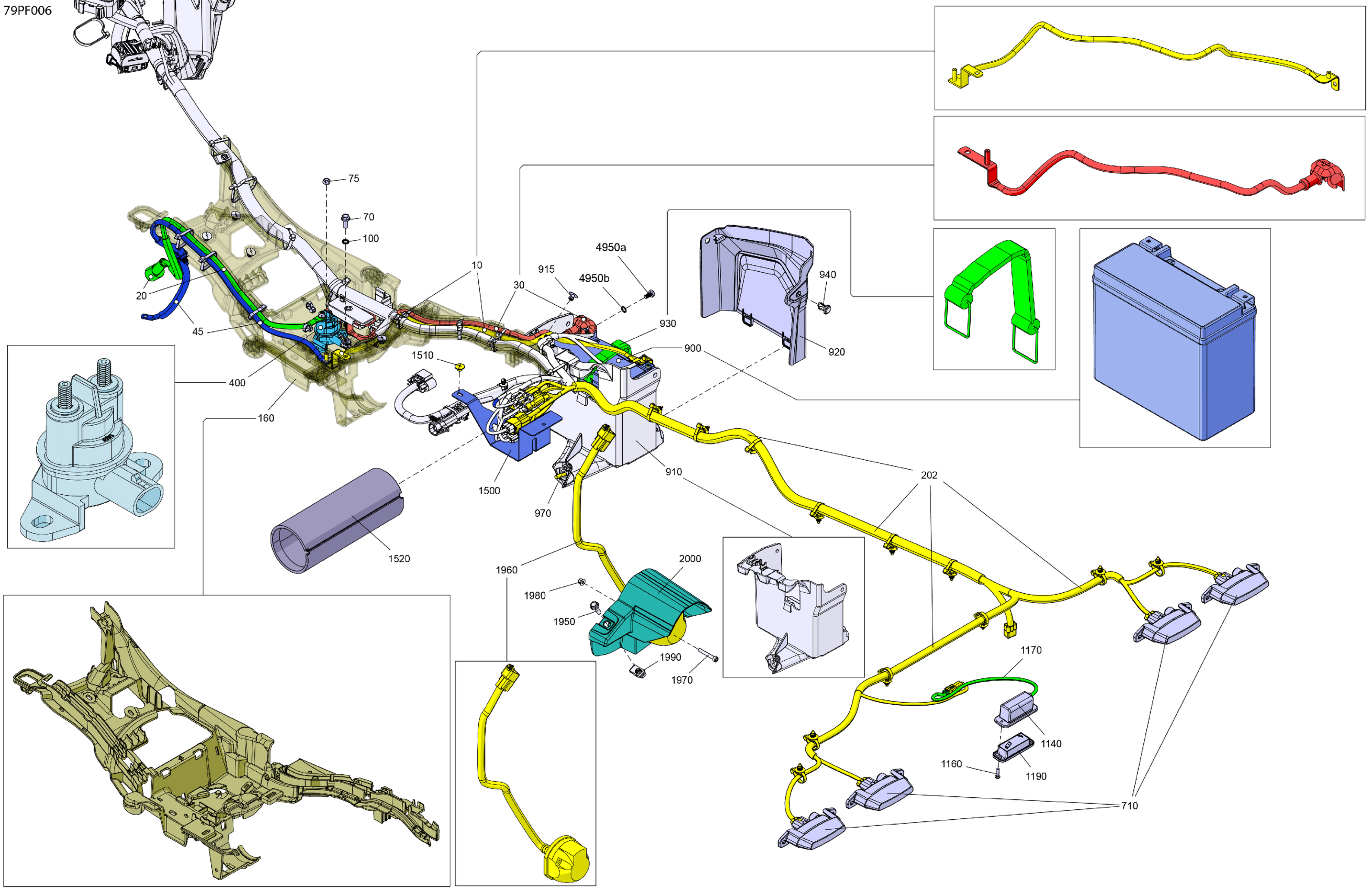

Can-Am OUT-MAX - 6X6 - DPS - 850 EFI - 2HTC - Granite Grey - 2026 Electric - Rear Section Diagram

Description

Price

Negative Cable

710009369

$38.99

Positive Cable

710011179

$48.99

Positive Cable

710009370

$48.99

Negative Cable

710009388

$38.99

Hex. Flange Screw M6 X 16

207661646

$1.49

Elastic Stop Nut M6

232561414

$1.78

100

External Serrated Lock Washer 6 mm

234461608

$1.49

160

Starter Relay Support

710009950

$43.99

202

Taillight Wiring Harness

710009702

$85.04

400

Starter Relay

278003012

$43.99

710

Tail Light

710010031

$63.99

900

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$121.08

910

Battery Support

710008195

$50.99

915

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

920

Battery Cover

710011427

$16.99

930

Fuel Tank Strap

293850087

$19.99

940

Tuflok Plastic Rivet

293150230

$1.49

970

Hex. Flange Screw M6 X 25

207562544

$1.69

1140

Rear Connector Guard

710008469

$8.43

1160

Flange Torx Screw K40 X 16

250000287

$2.19

1170

Rear Lighting Wiring Harness

710008956

$16.39

1190

License Light

710005501

$59.49

1500

Wiring Harness Support

710010954

$23.49

1510

Black, Pop Rivet 3/16 X ,425

293150291

$1.49

1520

Sheath | Not Shown

710004193

$21.99

1950

Hex. Flange Screw M6 X 20

207662046

$2.19

1960

Trailer Harness

710005846

$229.99

1970

Socket Head Screw M5 X 35

205053588

$1.99

1980

Hex. Flange Elastic Nut M5

233251414

$1.91

1990

Panel Nut M6 X 1.0

250100198

$2.19

2000

Trailer Hitch Support

710009909

$6.30

4950a

Screw | Not Shown

710009084

$1.48

4950b

Washer | Not Shown

710009082

$0.99

4950c

Elastic Stop Nut M6, Brass

232561200

$4.19
