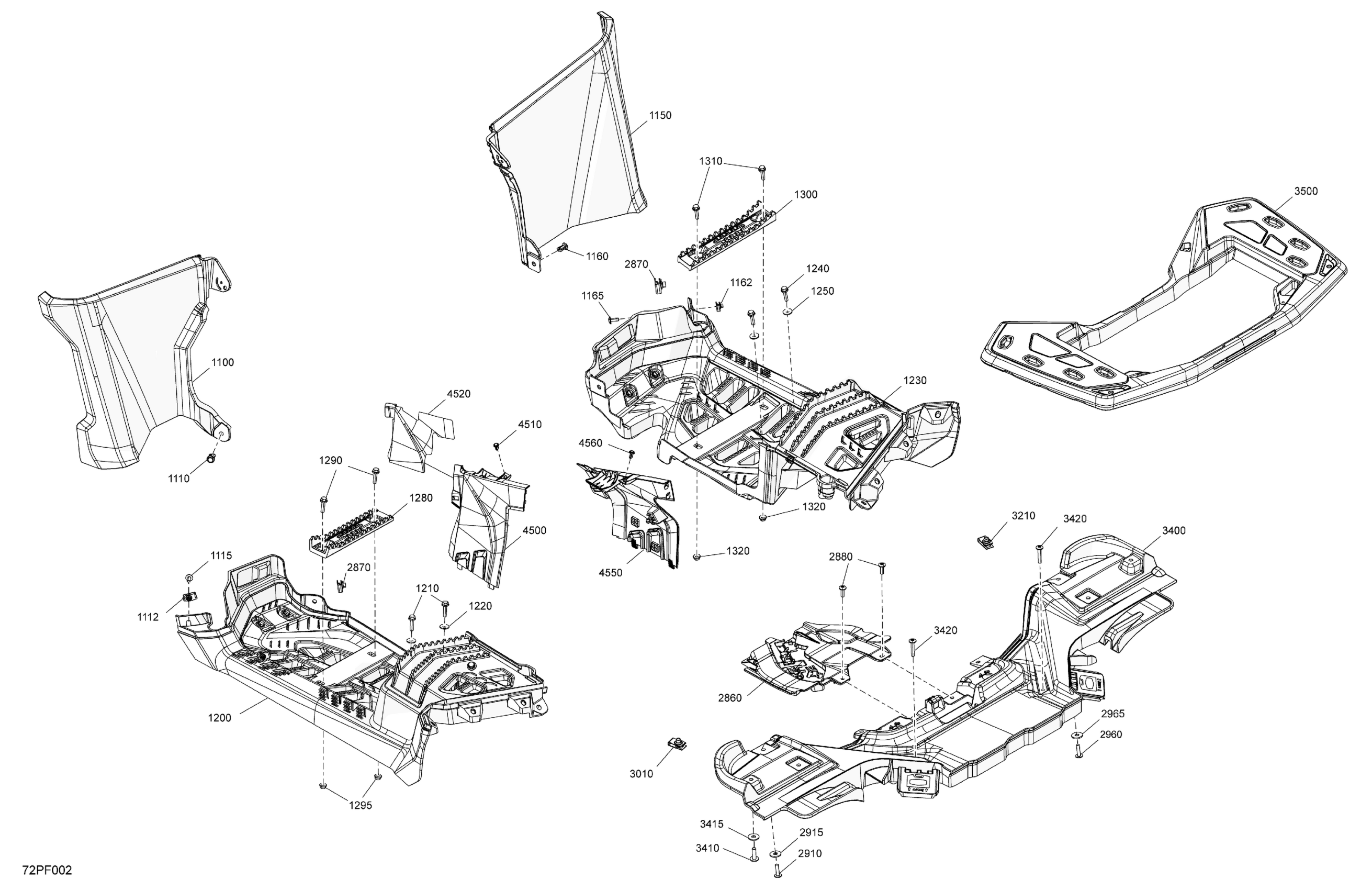

Can-Am OUT-MAX - 6X6 - BACKCOUNTRY - 1000R EFI - 2KTA - Stealth Black - 2026 Body - Rear Section Diagram

Description

Price

1100

LH Upper Footstep

705017657

$78.43

1110

Tuflok Plastic Rivet

293150230

$1.21

1112

Panel Nut M6 X 1.0

250100198

$1.73

1115

Torx Head Screw M6 X 16

250000717

$1.74

1150

RH Upper Footstep

705017659

$78.43

1160

Tuflok Plastic Rivet

293150230

$1.21

1162

Panel Nut M6 X 1.0

250100198

$1.73

1165

Torx Head Screw M6 X 16

250000717

$1.74

1200

LH Footboard

705014262

$175.35

1210

Hex Flange Screw M6 X 25

250000841

$6.15

1220

Stainless Steel Flat Washer

234062670

$1.74

1230

RH Footboard

705014263

$129.20

1240

Hex Flange Screw M6 X 25

250000841

$6.15

1250

Stainless Steel Flat Washer

234062670

$1.74

1280

Footrest

705013651

$3.98

1290

Hex Flange Screw M6 X 25

250000841

$6.15

1295

Hex. Flange Nut M6

233161414

$1.74

1300

Footrest

705013651

$3.98

1310

Hex Flange Screw M6 X 25

250000841

$6.15

1320

Hex. Flange Nut M6

233161414

$1.74

2860

Panel

709001696

$17.66

2870

Panel Nut M6 X 1.0

250100198

$1.73

2880

Screw Torx M6 X 20

250001257

$1.34

2910

Torx-Truss M/S M6 X 25

250001000

$4.33

2915

Flat Washer 6 mm

234062410

$0.64

2960

Torx-Truss M/S M6 X 25

250001000

$4.33

2965

Flat Washer 6 mm

234062410

$0.64

3010

Panel Nut M6 X 1.0

250100198

$1.73

3210

Panel Nut M6 X 1.0

250100198

$1.73

3400

Rear Multi Purpose Support

705018518

Unavailable

3410

Screw Torx M6 X 20

250001257

$1.34

3415

Flat Washer 6 mm

234062410

$0.64

3420

Screw Torx M6 X 35

250001258

$1.74

3500

Rear Luggage Rack Ass'y

705019089

Unavailable

4500

LH Extension Panel

705013653

$17.66

4510

Tuflok Plastic Rivet

293150230

$1.21

4520

LH Ext Heat Shield

705019157

$5.38

4550

RH Extension Panel

705013654

$17.66

4560

Tuflok Plastic Rivet

293150230

$1.21
