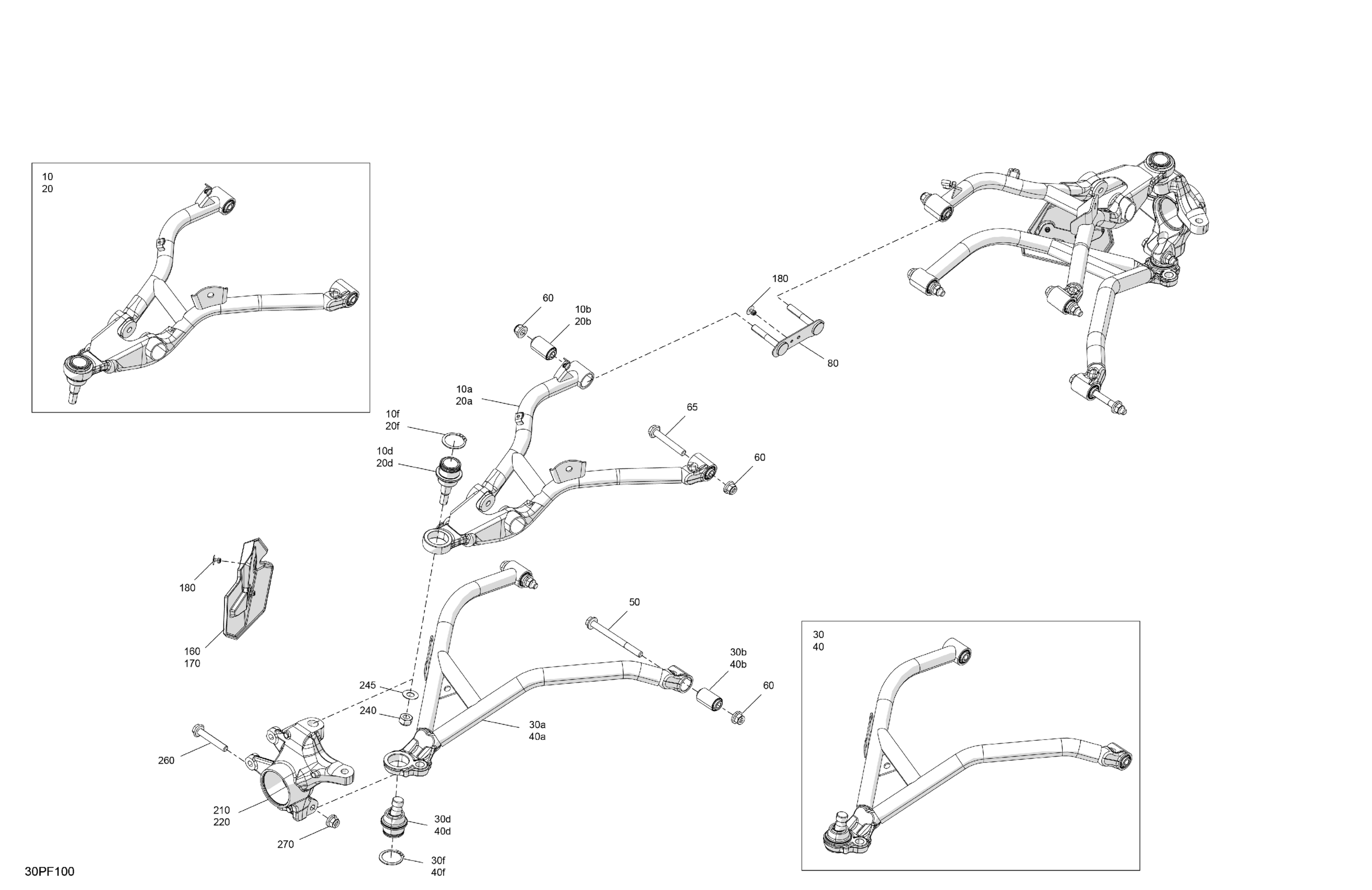

Can-Am OUT-MAX - 6X6 - DPS - 850 EFI - 2HTA - Granite Grey - 2026 Suspension - Front Components Diagram

Description

Price

LH Upper Suspension Arm Ass'y | Includes 10 to 10f

715010989

$147.73

10a

LH Upper Suspension Arm Ass'y | Includes 10 to 10f

715010989

$147.73

10b

Suspension Arm Bushing

706004511

$11.87

10d

Ball Joint

706202044

$34.30

10f

Circlip

293370035

$2.48

RH Upper Suspension Arm Ass'y | Includes 20 to 20f

715010990

$147.73

20a

RH Upper Suspension Arm Ass'y | Includes 20 to 20f

715010990

$147.73

20b

Suspension Arm Bushing

706004511

$11.87

20d

Ball Joint

706202044

$34.30

20f

Circlip

293370035

$2.48

LH Lower Suspension Arm Ass'y | Includes 30 to 30f

715010948

$147.73

30a

Not Available As Spare Parts

XXX

Unavailable

30b

Suspension Arm Bushing

706004511

$11.87

30d

Ball Joint

706202045

$34.30

30f

Circlip

293370035

$2.48

RH Lower Suspension Arm As | Includes 40 to 40f

715010949

$147.73

40a

Not Available As Spare Parts

XXX

Unavailable

40b

Suspension Arm Bushing

706004511

$11.87

40d

Ball Joint

706202045

$34.30

40f

Circlip

293370035

$2.48

Hex Flange Screw DIN.6921

230601046

$2.52

Hex. Flange Elastic Nut M10

233201436

$2.00

Hex. Flange Screw M10 X 65

207606536

$4.15

Suspension Arm Anchorage

705208352

$117.88

160

LH CV joint Guard

706202134

$8.48

170

RH CV joint Guard

706202135

$8.48

180

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

210

LH Knuckle

706203212

$164.15

220

RH Knuckle

706203213

$164.15

240

Hex. Elastic Hex. Nut M12

250100089

$0.45

245

Hardened Washer

706200281

$2.69

260

Hex. Flange Screw M10 X 60

207606044

$3.19

270

Hex. Flange Elastic Nut M10

233201436

$2.00
