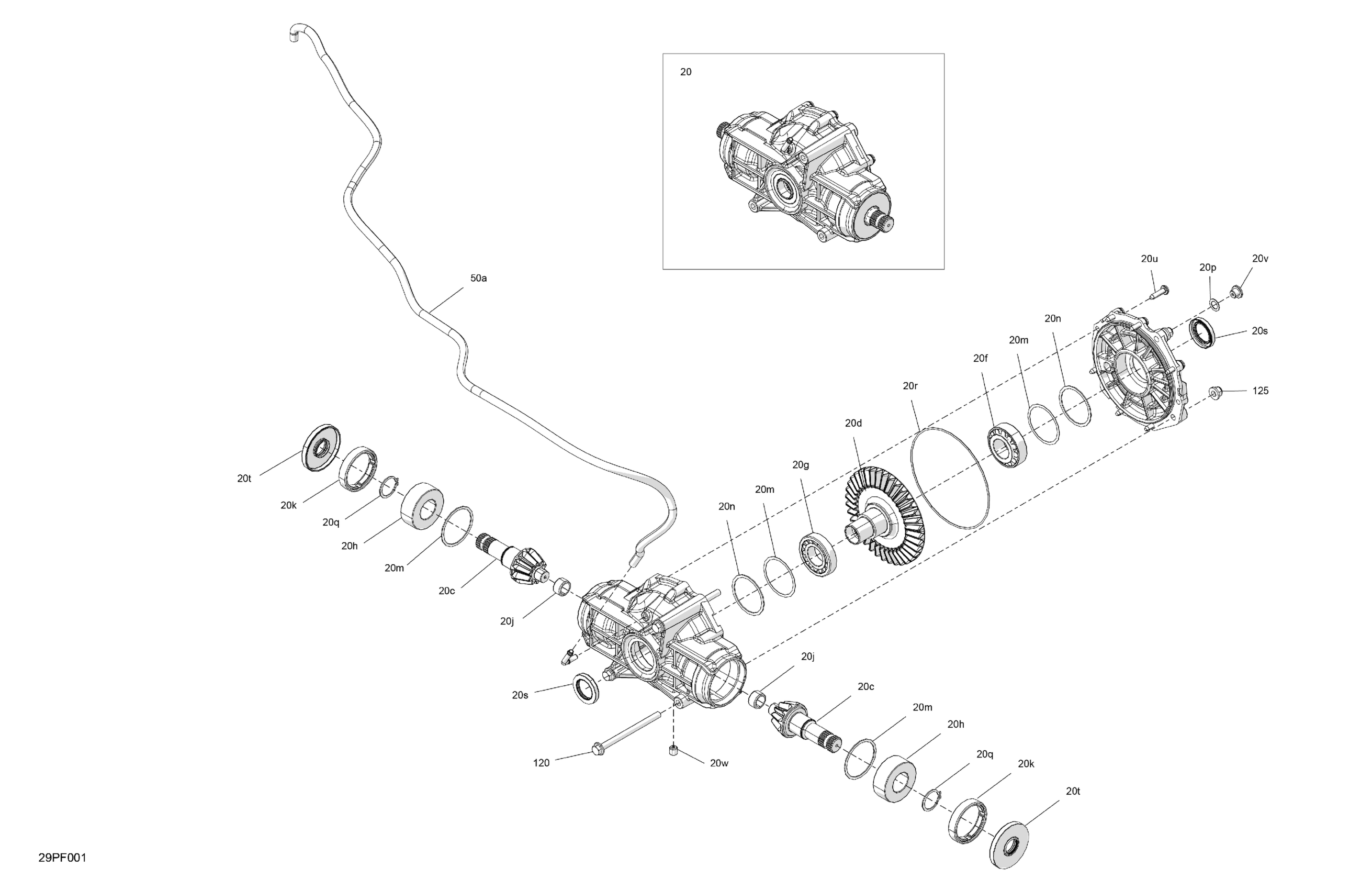

Can-Am OUT-MAX - 6X6 - BACKCOUNTRY - 1000R EFI - 2KTA - Stealth Black - 2026 Drive - Middle Drive Unit Diagram

Description

Price

Middle Drive Unit | Includes 20 to 20w

705503976

Unavailable

20c

Final Drive Pinion

705503725

Unavailable

20d

Helical Gear

705503726

Unavailable

20f

Roller Bearing | Not Shown

715500547

Unavailable

20g

Roller Bearing | Not Shown

715500548

Unavailable

20h

Ball Bearing

715901029

$26.09

20j

Needle Bearing

705501760

Unavailable

20k

Nut

705501549

$30.57

20m

Differential Shim

705501725

Unavailable

20n

Differential Shim

705501555

Unavailable

20p

Washer

715500485

$2.63

20q

Circlip

705502897

$4.28

20r

O-Ring Seal

705503886

$4.96

20s

Gasket

715500486

$18.63

20t

Final Drive Gasket

715500520

Unavailable

20u

Screw

705502063

$2.51

20v

Housing Fill Plug

715500488

$18.63

20w

Magnetic Drain Plug

715500489

$25.34

50a

Hose 6.35MM ID

219704534

$23.10

120

Hex. Flange Screw M10 X 135

250001041

$5.12

125

Hex. Flange Elastic Nut M10

233201436

$2.00
