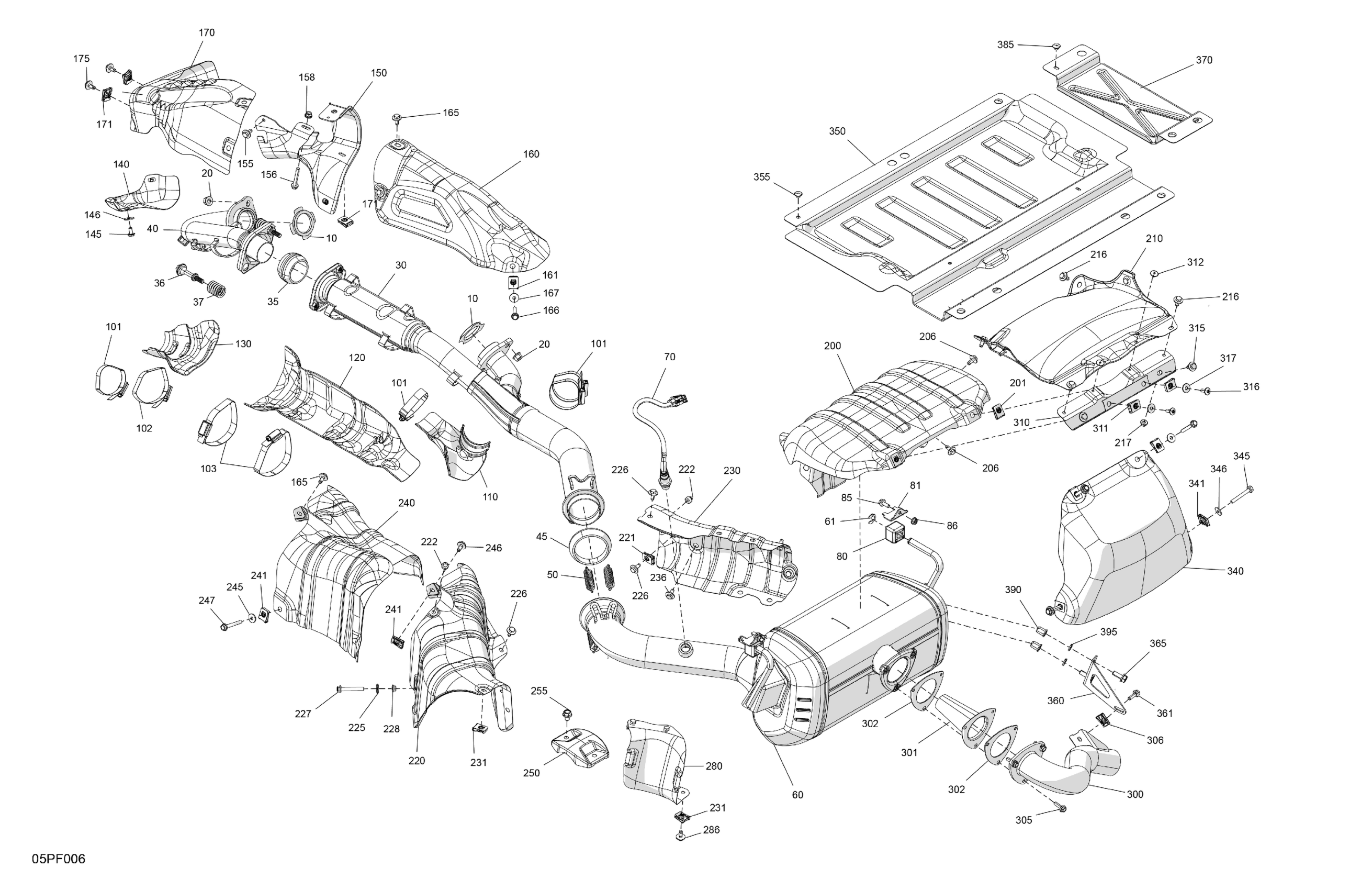

Can-Am OUT-MAX - 6X6 - DPS - 850 EFI - 2HTC - Granite Grey - 2026 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Gasket

707602697

$5.98

20

Hex. Flange Nut M8

233081416

$1.87

30

Rear Exhaust Pipe

707603633

$677.99

35

Exhaust Gasket

707603774

$14.49

36

Hex. Flange Screw M8 X 38

250001306

$2.19

37

Compression Spring

707603775

$33.99

40

Front Exhaust Pipe

707602613

$142.99

45

Exhaust Gasket

707603179

$8.57

50

Spring

707601834

$6.49

60

Exhaust Muffler

707604193

$783.55

61

External Retaining Ring

293370184

$1.89

70

Oxygen Sensor

707600872

$149.99

80

Vibration Damper

707603000

$7.90

81

Muffler Support

707603200

$18.54

85

Hex Flange Screw M6 X 16

250000906

$5.19

86

Hex. Flange Nut M6

233161414

$2.19

101

Tridon Gear Clamp

293650337

$12.49

102

Tridon Gear Clamp

293650338

$12.49

103

Tridon Gear Clamp

293650339

$12.49

110

Heat Shield

707603823

$85.99

120

Heat Shield

707603822

$85.99

130

Heat Shield

707603821

$85.99

140

Heat Shield

707603845

$53.99

145

Hex. Flange Screw M6 X 12

250000574

$2.19

146

Flat Washer

250200082

$1.49

150

Heat Shield Support

707603607

$19.02

155

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

156

Hex. Flange Screw M6 X 45

207664544

$1.49

158

Hex. Flange Nut M6

233061414

$1.69

160

Heat Shield

707602584

$36.99

161

Panel Nut M6 X 1.0

250100208

$1.49

165

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

166

Hex. Flange Screw M6 X 45

207664544

$1.49

167

Flat Washer 6 mm

234062410

$1.49

170

Heat Shield

707603265

$36.99

171

Panel Nut M6 X 1.0

250100208

$1.49

175

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

200

Heat Shield

707603239

$36.99

201

Panel Nut M6 X 1.0

250100208

$1.49

202

Rubber Bumper

293830005

$8.29

206

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

210

Heat Shield

707603768

$60.99

216

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

217

Hex. Flange Nut M6

233161414

$2.19

220

Heat Shield

707603237

$36.99

221

Panel Nut M6 X 1.0

250100208

$1.49

222

Rubber Bumper

293830005

$8.29

225

Flat Washer 6 mm

234062410

$1.49

226

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

227

Hex. Flange Screw M6 X 45

207664544

$1.49

228

Hex. Flange Nut M6

233061414

$1.69

230

Heat Shield

707603003

$36.99

231

Panel Nut M6 X 1.0

250100208

$1.49

236

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

240

Heat Shield

707603238

$36.99

241

Panel Nut M6 X 1.0

250100208

$1.49

245

Flat Washer 6 mm

234062410

$1.49

246

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

247

Hex. Flange Screw M6 X 45

207664544

$1.49

250

Heat Shield

707603005

$13.49

255

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.49

280

Heat Shield

707603006

$13.49

286

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

300

Tail Pipe

707603738

$87.99

301

Spark Arrestor

707603520

$10.11

302

Exhaust Gasket

707603102

$8.57

305

Hex. Flange Screw M6 X 20

207662054

$1.49

306

Panel Nut M6 X 1.0

250100208

$1.49

310

Heat Shield Support

707603767

$6.35

311

Panel Nut M6 X 1.0

250100208

$1.49

312

Pop Rivet

293150310

$1.49

315

Hex Sems Screw S.Grip Ht M6X16

250001162

$3.29

316

Torx Head Screw M6 X 16

250000717

$2.19

317

Stainless Steel Flat Washer

234062670

$2.19

340

Heat Shield

707603801

$36.99

341

Panel Nut M6 X 1.0

250100208

$1.49

345

Hex. Flange Screw M6 X 45

207664544

$1.49

346

Flat Washer 6 mm

234062410

$1.49

350

Heat Shield

707603834

$114.99

355

Black, Pop Rivet 3/16 X ,425

293150291

$1.49

360

Exhaust Support

707603859

$19.02

361

Hex. Flange Screw M6 X 20

207662054

$1.49

365

Hex. Flange Screw M8 X 20

207682044

$1.49

370

Heat Shield

707603955

$114.99

385

Black, Pop Rivet 3/16 X ,425

293150291

$1.49

390

Threaded Insert M8 X 1.25

250100238

$1.49

395

Lock Washer 8 mm

234181401

$1.49
