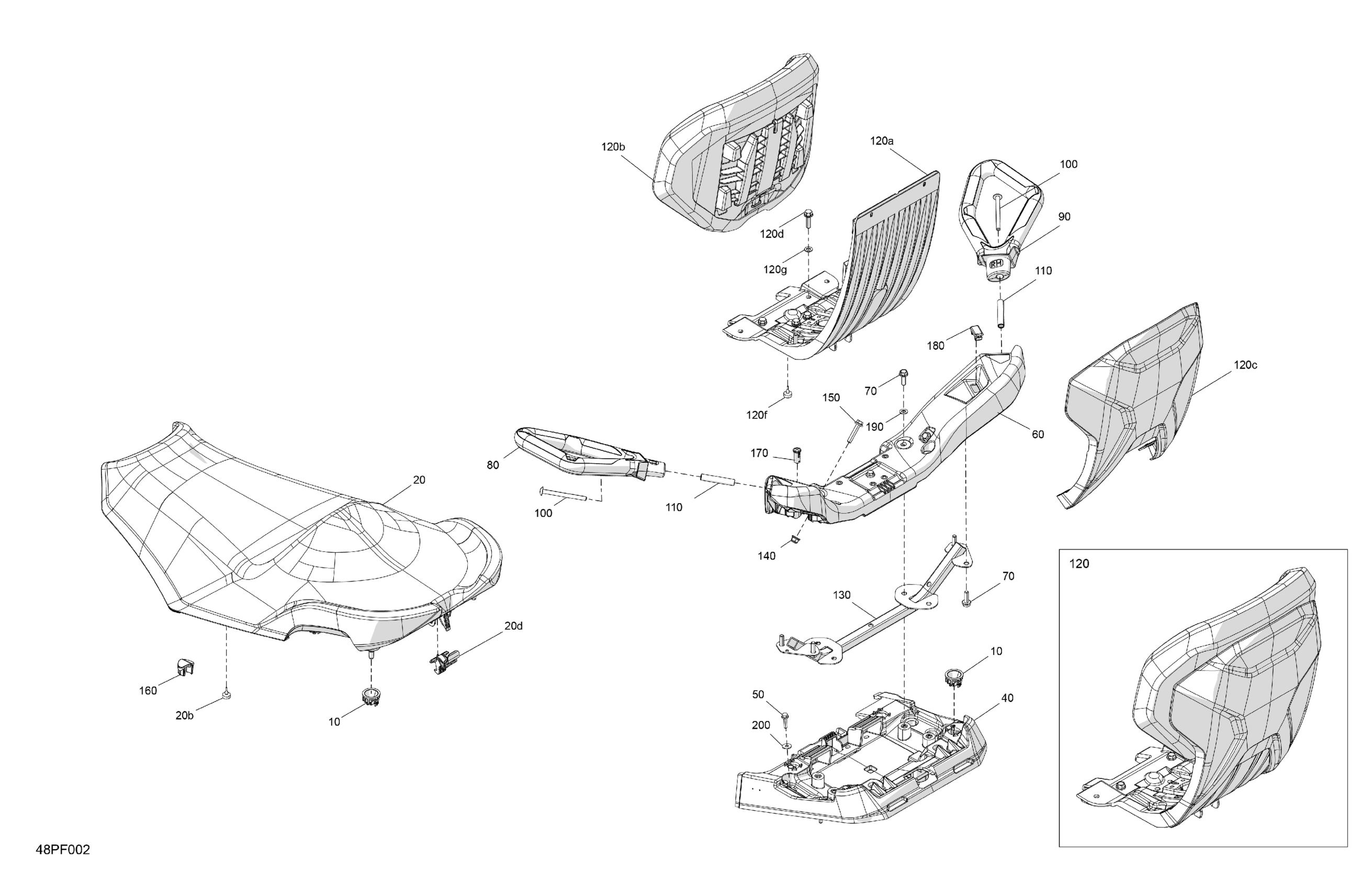

Can-Am OUT-MAX - 6X6 - DPS - 700 EFI - 2FTB - Granite Grey - 2026 Body - Seat Diagram

Description

Price

Seat Stopper

708003609

$9.11

2 Places Seat | Includes 30 to 30b

708003927

$323.05

20b

Seat Stopper

708003866

$3.61

20d

Seat Latch

708003926

$6.45

Seat Anchorage

708003811

$106.12

Hex. Flange Screw M6 X 25

207662544

$0.53

Handle Support

708004132

$69.20

Hex. Flange Screw M8 X 25

207682544

$0.90

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$64.58

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$64.58

100

Torx Truss M8 X 90

250000806

$6.15

110

Sleeve

705009248

$14.75

120

Backrest Support Ass'y | Includes 120 to 120g

708004004

$433.82

120a

Backrest Support

708003937

$184.58

120b

Passenger Backrest

708003112

$489.20

120c

Backrest Trim

708003191

$221.51

120d

Hex. Flange Screw M8 X 25

207682544

$0.90

120f

Seat Stopper

708003866

$3.61

120g

Flat Washer 8 mm

234081410

$0.69

130

Handle Support Reinforcement Ass'y

708003529

$36.89

140

Hex. Flange Elastic Nut M8

233281414

$1.14

150

Hex. Flange Screw M8 X 40

207684054

$2.06

160

Cap

708004198

$5.52

170

Pilot Lamp Cap

710003910

$3.85

180

Insert

708001511

$3.85

190

Flat Washer 8 mm

234081410

$0.69

200

Flat Washer 6 mm

234062410

$0.64
