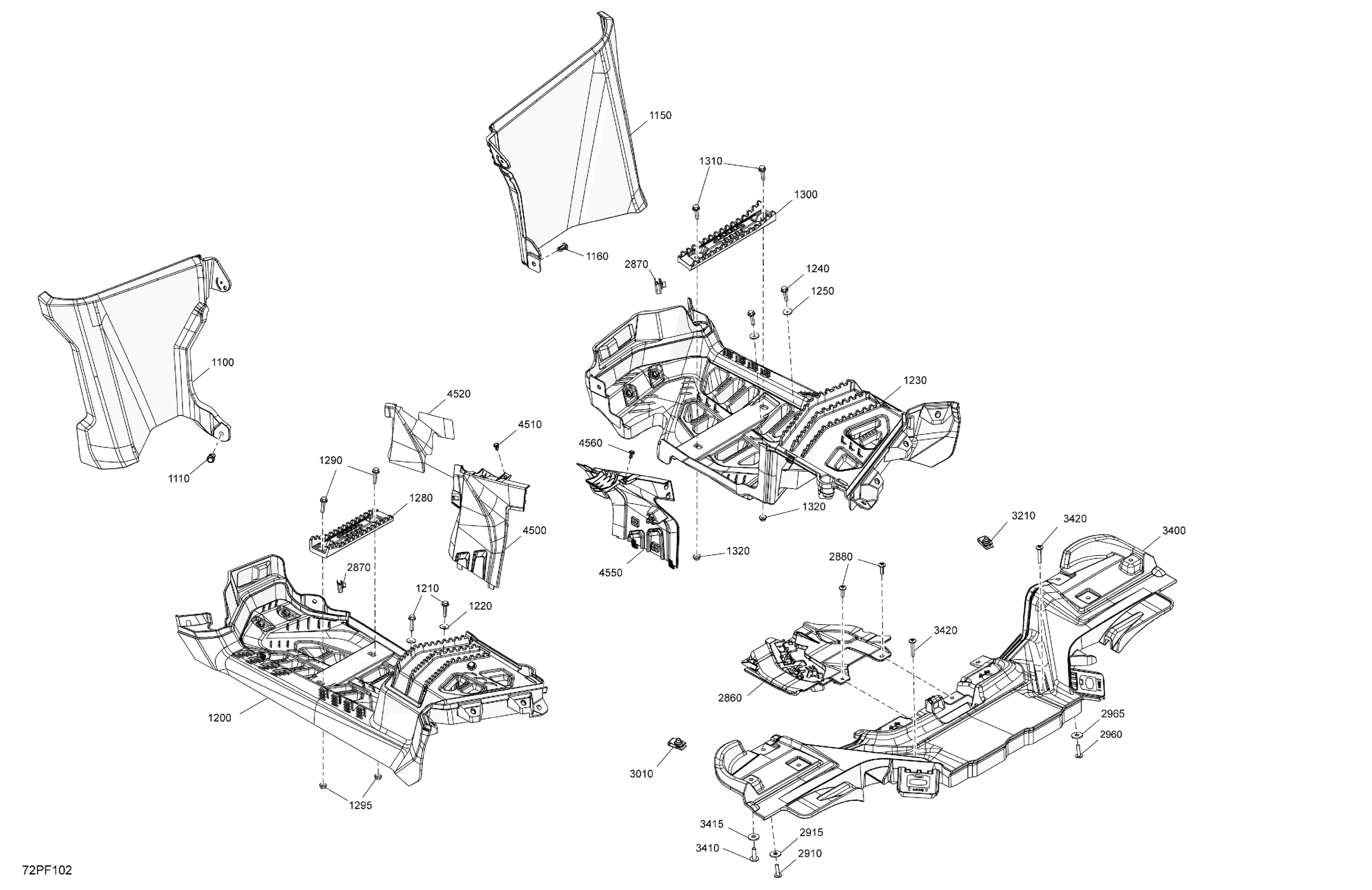

Can-Am OUT-MAX - 6X6 - DPS - 700 EFI - 2FTB - Granite Grey - 2026 Body - Rear Section Diagram

Description

Price

1100

LH Upper Footstep

705014745

$73.85

1110

Tuflok Plastic Rivet

293150230

$1.21

1150

RH Upper Footstep

705014746

$73.85

1160

Tuflok Plastic Rivet

293150230

$1.21

1200

LH Footboard

705014262

$167.13

1210

Hex Flange Screw M6 X 25

250000841

$6.15

1220

Stainless Steel Flat Washer

234062670

$1.74

1230

RH Footboard

705014263

$123.10

1240

Hex Flange Screw M6 X 25

250000841

$6.15

1250

Stainless Steel Flat Washer

234062670

$1.74

1280

Footrest

705013651

$3.94

1290

Hex Flange Screw M6 X 25

250000841

$6.15

1295

Hex. Flange Nut M6

233161414

$1.74

1300

Footrest

705013651

$3.94

1310

Hex Flange Screw M6 X 25

250000841

$6.15

1320

Hex. Flange Nut M6

233161414

$1.74

2860

Panel

709001696

$16.39

2870

Panel Nut M6 X 1.0

250100198

$1.73

2880

Screw Torx M6 X 20

250001257

$1.34

2910

Torx-Truss M/S M6 X 25

250001000

$4.33

2915

Flat Washer 6 mm

234062410

$0.64

2960

Torx-Truss M/S M6 X 25

250001000

$4.33

2965

Flat Washer 6 mm

234062410

$0.64

3010

Panel Nut M6 X 1.0

250100198

$1.73

3210

Panel Nut M6 X 1.0

250100198

$1.73

3400

Rear Multi Purpose Support Kit

715011232

$84.30

3410

Screw Torx M6 X 20

250001257

$1.34

3415

Flat Washer 6 mm

234062410

$0.64

3420

Screw Torx M6 X 35

250001258

$1.74

4500

LH Extension Panel

705013653

$16.39

4510

Tuflok Plastic Rivet

293150230

$1.21

4520

LH Ext Heat Shield

705019157

$5.18

4550

RH Extension Panel

705013654

$16.39

4560

Tuflok Plastic Rivet

293150230

$1.21
