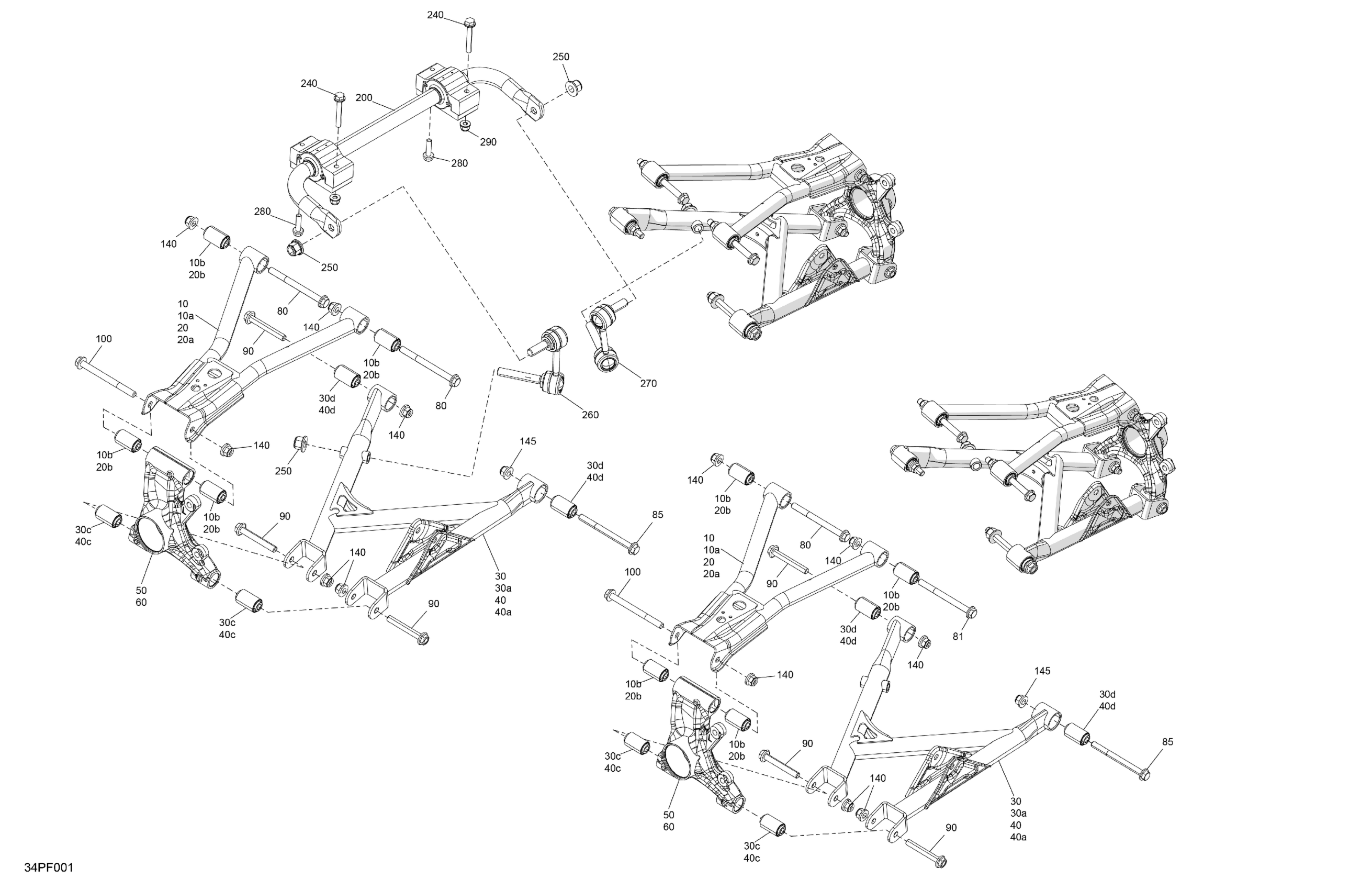

Can-Am OUT-MAX - 6X6 - DPS - 700 EFI - 2FTB - Granite Grey - 2026 Suspension - Rear Components Diagram

LH Upper Suspension Arm Ass'y

715010405

$147.73

LH Upper Suspension Arm

706003510

$147.73

Suspension Arm Bushing

706004511

$11.87

RH Upper Suspension Arm Ass'y

715010406

$147.73

RH Upper Suspension Arm

706003511

$147.73

Suspension Arm Bushing

706004511

$11.87

LH Lower Suspension Arm Ass'y With Bushing | Includes 30 to 30d

715010958

$147.73

LH Lower Suspension Arm Ass'y With Bushing | Includes 30 to 30d

715010958

$147.73

Suspension Arm Bushing

706004511

$11.87

Suspension Arm Bushing

706005631

$12.67

RH Lower Suspension Arm Ass'y With Bushing | Includes 40 to 40d

715010959

$147.73

RH Lower Suspension Arm Ass'y With Bushing | Includes 40 to 40d

715010959

$147.73

Suspension Arm Bushing

706004511

$11.87

Suspension Arm Bushing

706005631

$12.67

LH Rear Knuckle

706004297

$111.91

RH Rear Knuckle

706004298

$111.91

Hex.Flange Screw Din.6921

230601546

$2.52

Hex. Flange Screw M10 X 125

230602546

$6.08

Screw Flange M12 X 115

250000860

$5.47

Hex. Flange Screw M10 X 70

207607046

$2.82

Hex Flange Screw DIN.6921

230601046

$2.20

Hex. Flange Elastic Nut M10

233201436

$1.74

Elastic Flange Nut M12

233221416

$2.33

Stabilizer Bar Ass'y

706004983

$91.01

Hex. Flange Screw M8 x 60

207686044

$2.56

Elastic Flange Nut M12

233221416

$2.33

LH Rear Stabilizer Bar Link

706205989

$64.15

RH Rear Stabilizer Bar Link

706205990

$64.15

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.12

Hex. Flange Elastic Nut M8

233281414

$1.14
