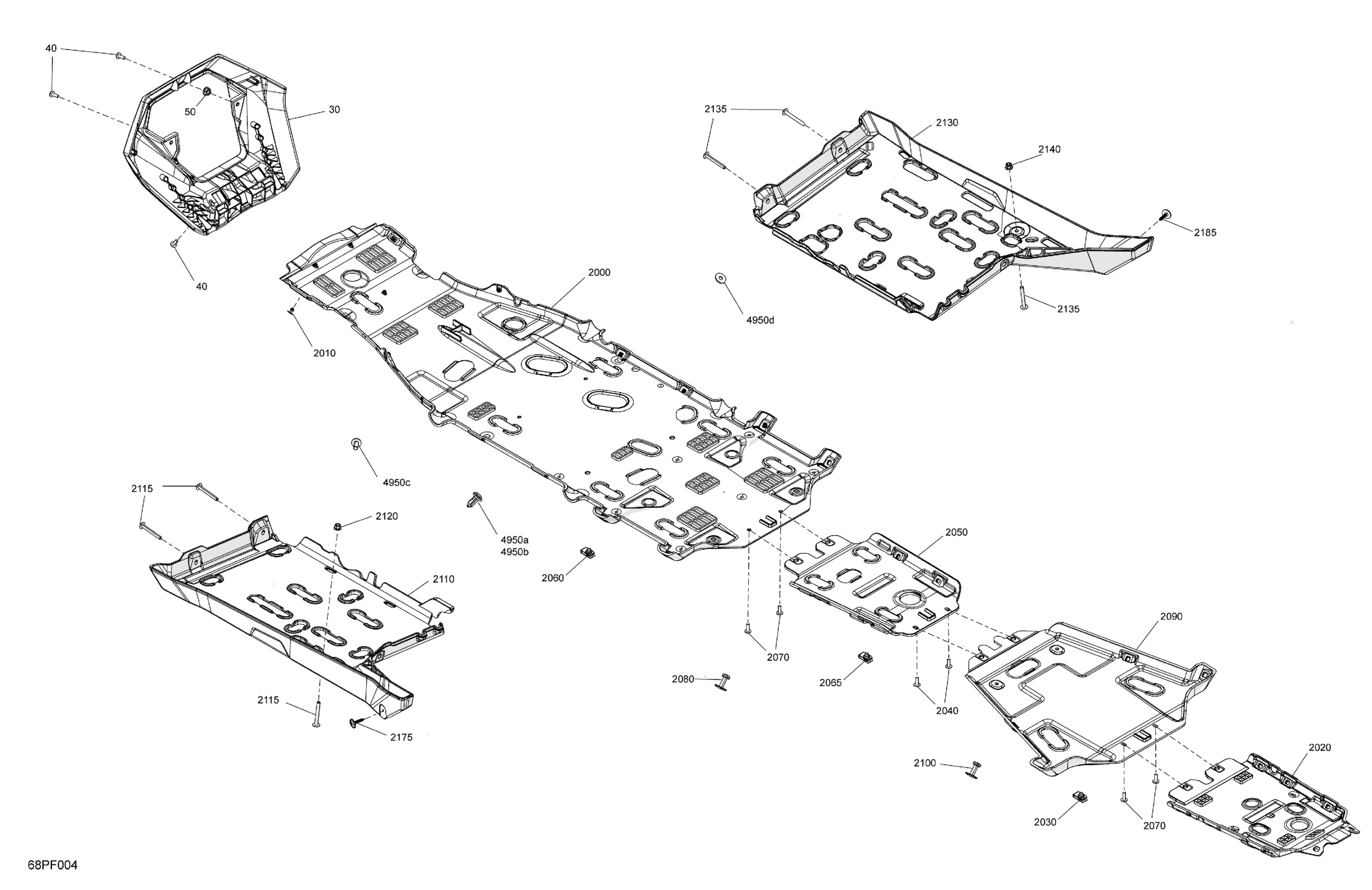

Can-Am Off-Road T Regulation - OUT-MAX - 6X6 - BACKCOUNTRY - 1000R EFI - 2KTB - Stealth Black - 2026 07- Body - Skid Plate Diagram

Description

Price

Front Skid Plate

715010536

$29.49

Screw Torx M6 X 20

250001257

$1.68

Hex. Flange Nut M6

233161414

$2.11

2000

Central Skid Plate Long

705018716

$98.49

2010

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2020

Lower Rear Skid Plate

705014893

$98.49

2030

Panel Nut M6 X 1.0

250100198

$2.11

2040

Screw Torx M6 X 20

250001257

$1.68

2050

Central Skid Plate

705018498

$98.49

2060

Panel Nut M6 X 1.0

250100198

$2.11

2065

Panel Nut M6 X 1.0

250100198

$2.11

2070

Screw Torx M6 X 20

250001257

$1.68

2080

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2090

Central Skid Plate

705018772

$98.49

2100

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2110

LH Skid Plate

705019453

$98.49

2115

Torx Truss Screw M6 X 50

250000749

$3.17

2120

Hex. Flange Elastic Nut M6

233261494

$1.58

2130

RH Skid Plate

705019454

$98.49

2135

Torx Truss Screw M6 X 50

250000749

$3.17

2140

Hex. Flange Elastic Nut M6

233261494

$1.58

2175

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

2185

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

4950a

Tuflok Plastic Rivet

293150230

$1.47

4950b

Tuflok Plastic Rivet

293150230

$1.47

4950c

Torx Head Screw M6 X 16

250000717

$2.11

4950d

Stainless Steel Flat Washer

234062670

$2.11
