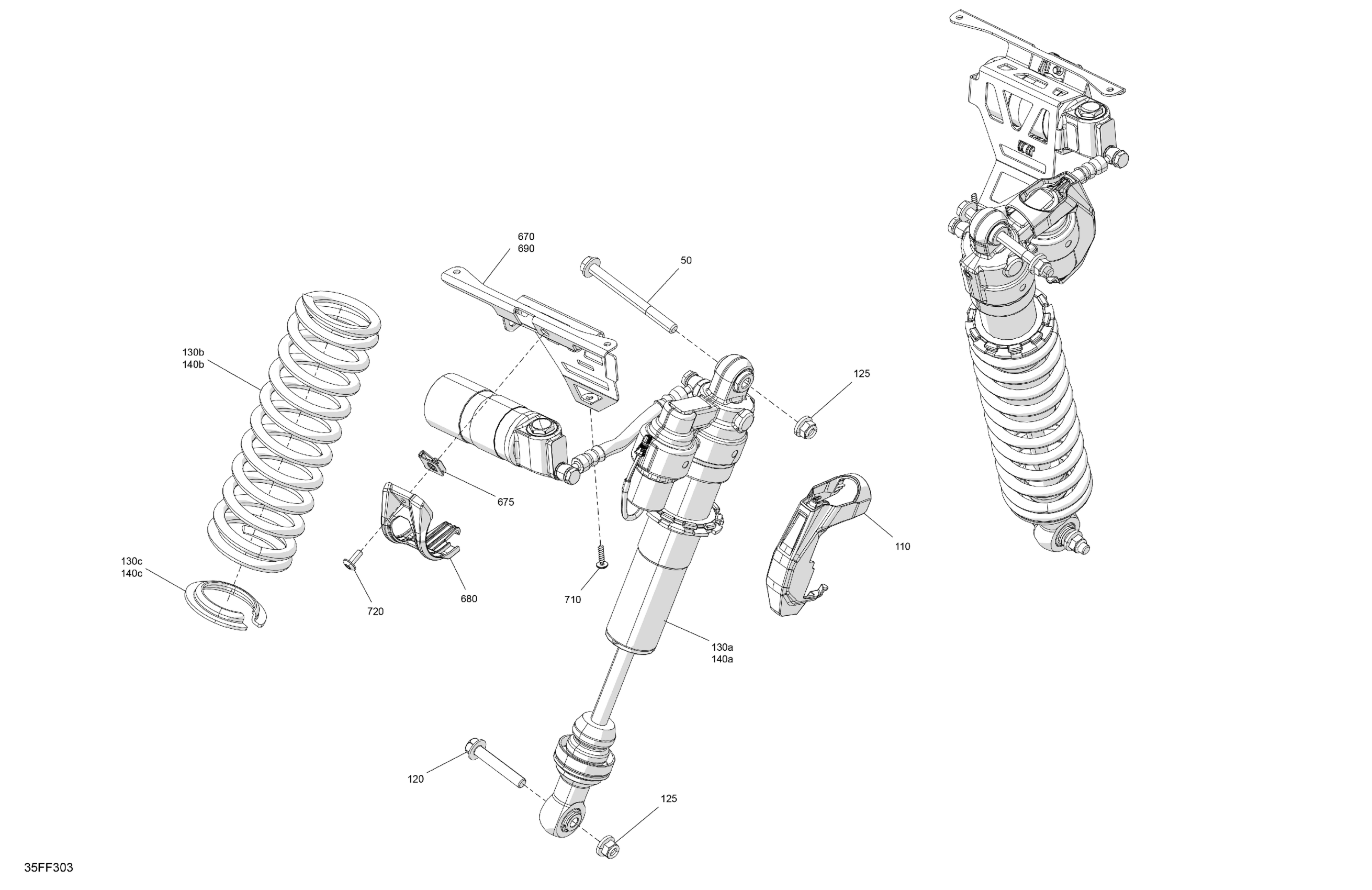

Can-Am OUTLANDER - 4X4 - XTP - 1000R - 4HTJ - Mineral Gray Satin - 2026 Suspension - Front Shocks Diagram

Hex Flange Screw DIN.6921

230601046

$2.52

Hex. Flange Screw M10 X 6

207606046

$3.88

Hex. Flange Elastic Nut M10

233201436

$2.00

LH Front Shock Absorber

706205627

$1,005.49

Orange Crush, Front Compression Spring

706205628

$57.43

Spring Guide

706206701

$13.36

RH Front Shock Absorber

706205413

$1,005.49

Orange Crush, Front Compression Spring

706205628

$57.43

Spring Guide

706206701

$13.36
