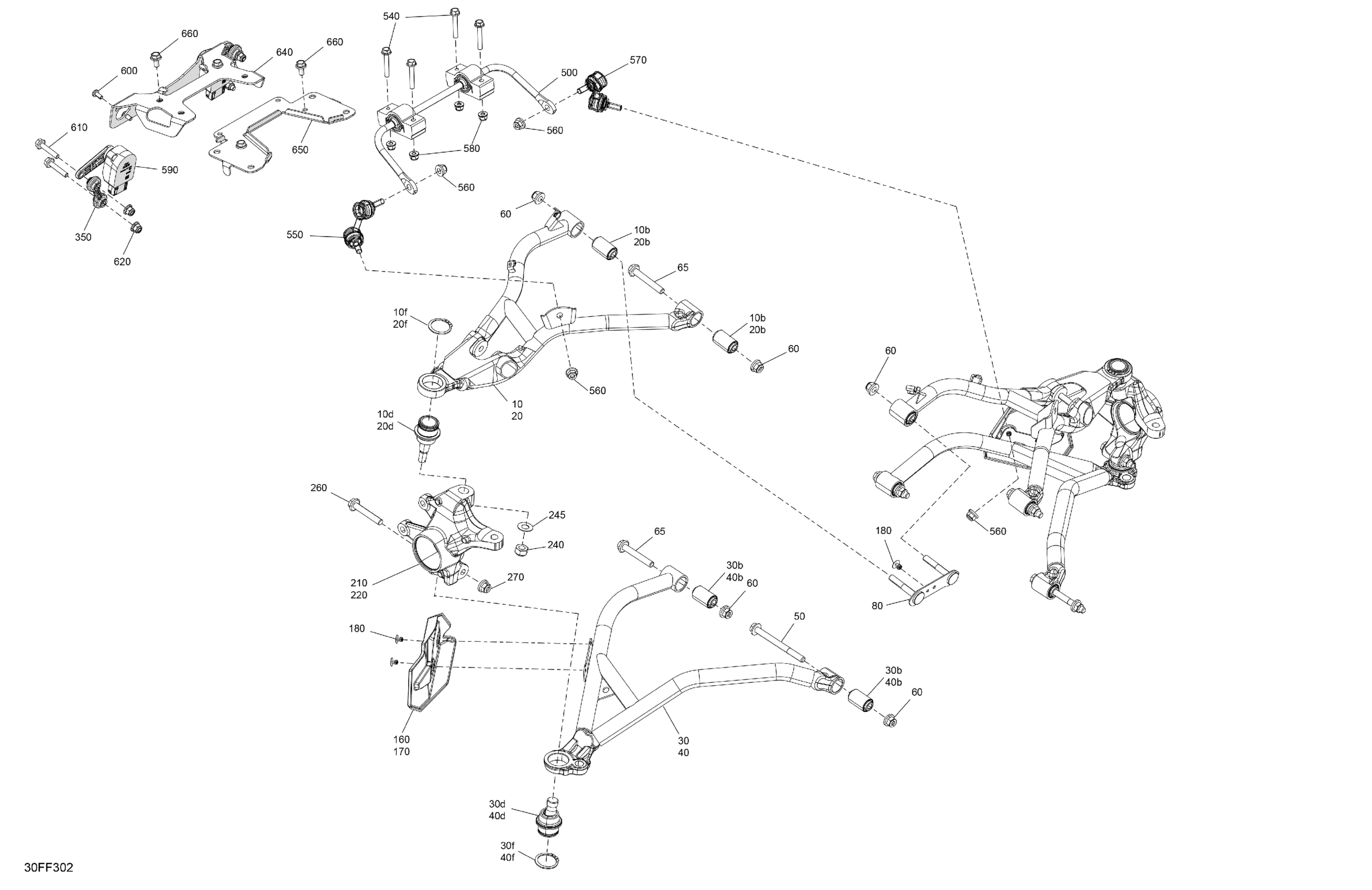

Can-Am OUTLANDER - 4X4 - XTP - 1000R - 4HTJ - Mineral Gray Satin - 2026 Suspension - Front Components Diagram

LH Upper Suspension Arm Ass'y | Includes 10 to 10f

715010950

$147.73

Suspension Arm Bushing

706004511

$11.87

Ball Joint

706202044

$34.30

Circlip

293370035

$2.48

RH Upper Suspension Arm Ass'y | Includes 20 to 20f

715010951

$147.73

Suspension Arm Bushing

706004511

$11.87

Ball Joint

706202044

$34.30

Circlip

293370035

$2.48

LH Lower Suspension Arm Ass'y | Includes 30 to 30f

715010948

$147.73

Suspension Arm Bushing

706004511

$11.87

Ball Joint

706202045

$34.30

Circlip

293370035

$2.48

RH Lower Suspension Arm As | Includes 40 to 40f

715010949

$147.73

Suspension Arm Bushing

706004511

$11.87

Ball Joint

706202045

$34.30

Circlip

293370035

$2.48

Hex Flange Screw DIN.6921

230601046

$2.52

Hex. Flange Elastic Nut M10

233201436

$2.00

Hex. Flange Screw M10 X 65

207606536

$4.15

Suspension Arm Anchorage

705208352

$117.88

LH CV joint Guard

706202134

$8.48

RH CV joint Guard

706202135

$8.48

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

LH Knuckle

706203212

$164.15

RH Knuckle

706203213

$164.15

Hex. Elastic Hex. Nut M12

250100089

$0.45

Hardened Washer

706200281

$2.69

Hex. Flange Screw M10 X 60

207606044

$3.19

Hex. Flange Elastic Nut M10

233201436

$2.00

Ball Joint

706005959

$16.39

Stabilizer Bar Ass'y

706206392

$91.01

Hex. Flange Screw M8 X 50

207685044

$1.60

LH Stabilizer Bar Link

706204268

$62.66

Hex. Flange Elastic Nut M10

233201436

$2.00

RH Stabilizer Bar Link

706204269

$62.66

Hex. Flange Elastic Nut M8

233281414

$1.31

Suspension Position Sensor

706206376

$140.27

Socket Head Screw M5 X 10

205951046

$2.31

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

Hex. Flange Elastic Nut M6

233261466

$1.91

Front Sensor Support

706205657

$24.60

Support Anchorage

706206433

$24.60

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79
