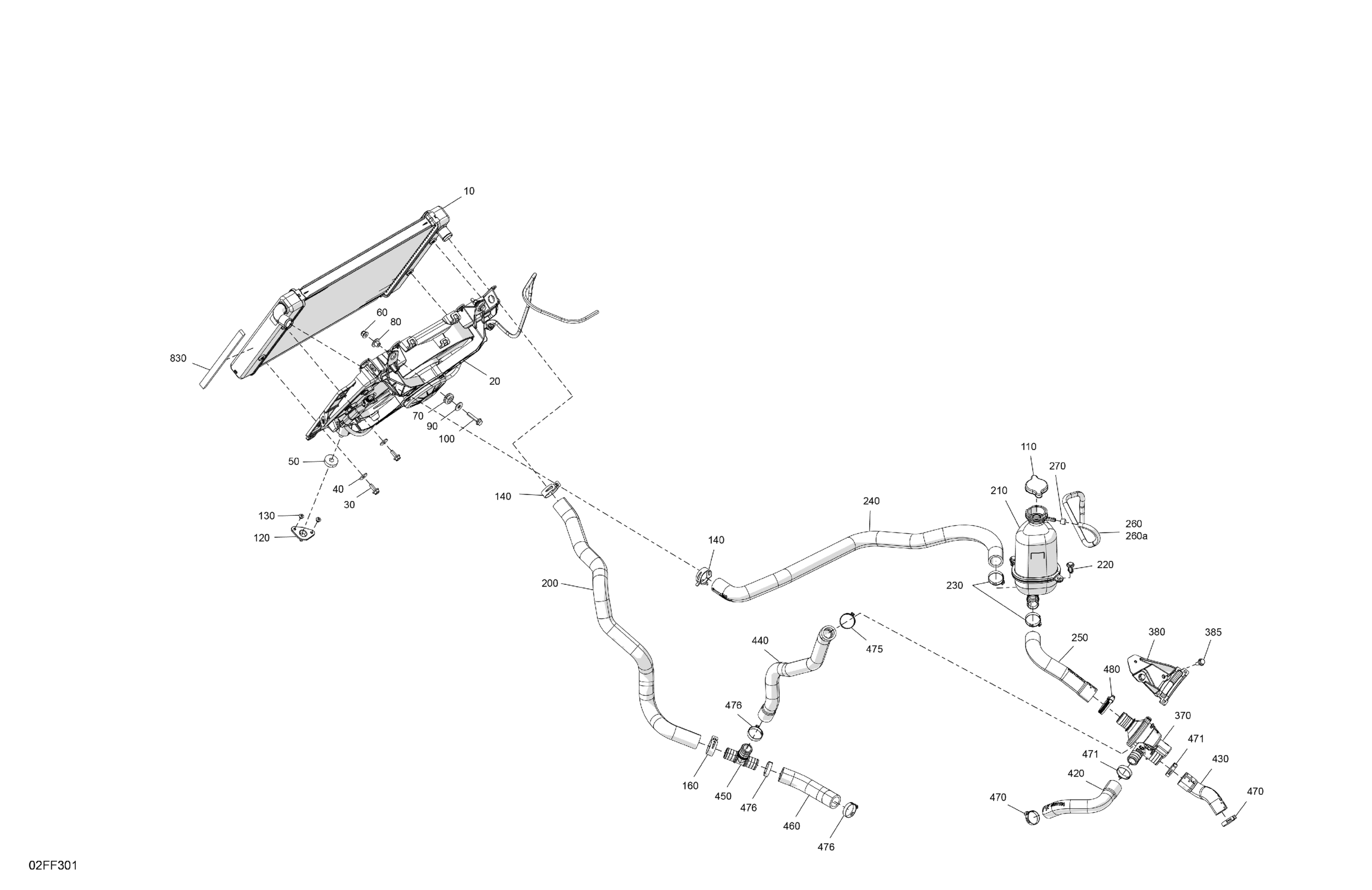

Can-Am OUTLANDER - 4X4 - BACKCOUNTRY - 1000R - 4NTA - CALI - Dark Camo - 2026 Engine - Cooling Diagram

Description

Price

Radiator

709201126

$409.20

Cooling Fan

709201622

$239.97

Hex Flange Screw M6 X 16

250000906

$4.39

Flat Washer 6 mm

234062410

$0.64

Grommet

709200948

$7.09

Hex. Flange Elastic Nut M6

233261466

$1.66

Overmolded Grommet

293720130

$4.38

Bushing

709001288

$7.71

Flat Washer

250200082

$0.35

100

Hex. Flange Screw M6 X 30

207663046

$1.42

110

Radiator Pressure Cap

709200207

$18.82

120

Radiator Support

709201149

$7.37

130

Pop Rivet 3/16 X ,425

293150293

$0.26

140

Norma Spring Clamp

293650108

$4.00

160

Norma Spring Clamp

293650108

$4.00

200

Radiator Hose

709201590

$23.05

210

Coolant Tank

715009560

$96.89

220

Tuflok Plastic Rivet

293150230

$1.21

230

Crimp Clamp

293650331

$4.28

240

Radiator Hose

709201592

$23.05

250

Hose

709201594

$23.05

260

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

260a

Not Available As Spare Parts

XXX

Unavailable

270

Spring Clamp

414554800

$0.83

370

Housing

709201279

$92.28

380

Thermostat Support

709201282

$4.60

385

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

420

Thermostat Hose

709201596

$9.29

430

Thermostat Hose

709201597

$9.29

440

Thermostat Hose

709201598

$16.12

450

T-Fitting

709201420

$15.35

460

Water Pump Hose

709201599

$16.12

470

Crimp Clamp

293650099

$3.55

471

Crimp Clamp

293650331

$4.28

475

Crimp Clamp

293650331

$4.28

476

Crimp Clamp

293650331

$4.28

480

Norma Gear Clamp

293650098

$4.28

830

Seal 3000MM Long

219704386

$27.07
