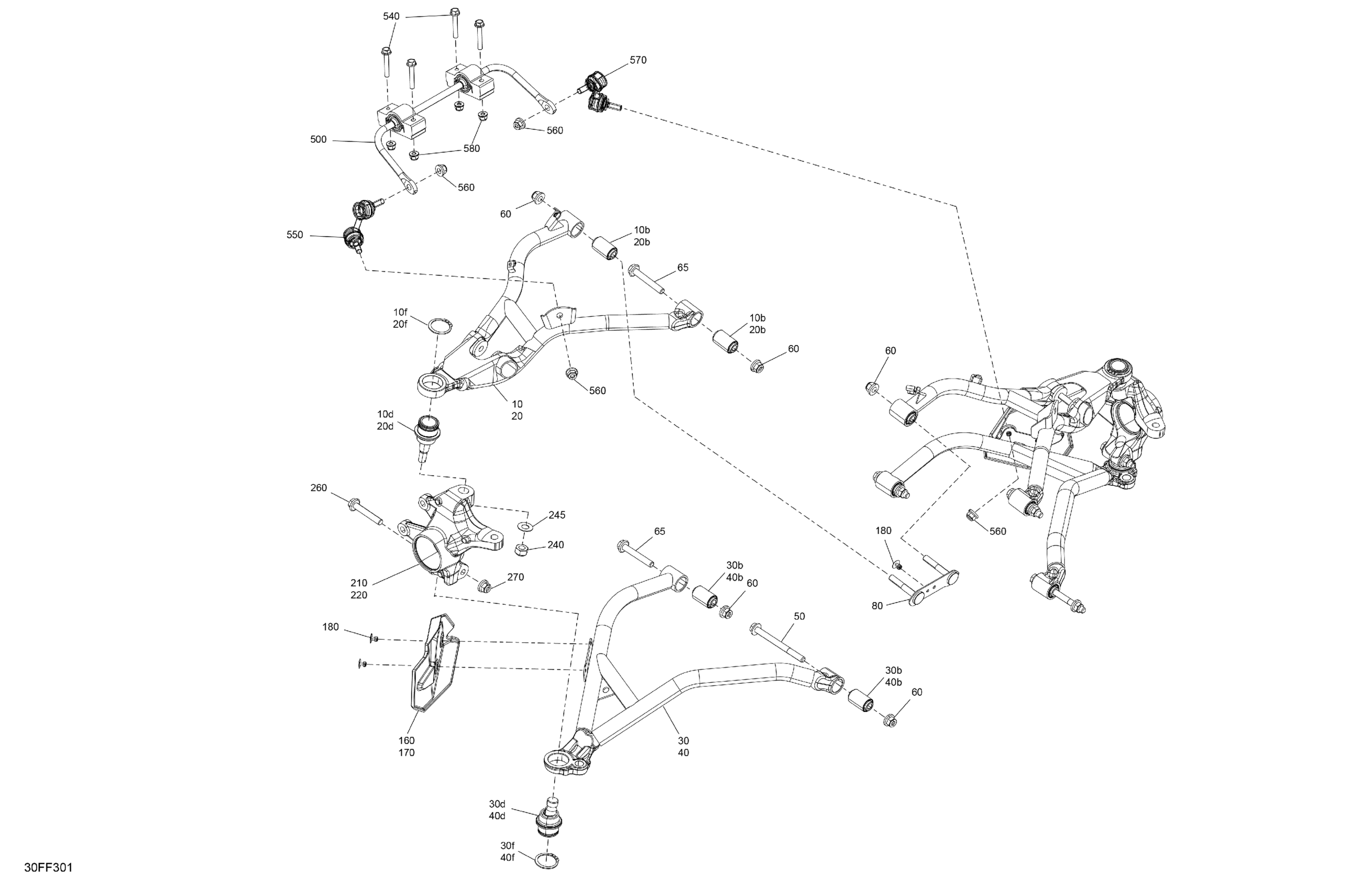

Can-Am OUTLANDER - 4X4 - XT - 1000R - 4FTB - CALI - Platinum Silver Satin - 2026 Suspension - Front Components Diagram

LH Upper Suspension Arm Ass'y | Includes 10 to 10f

715010989

$158.99

Suspension Arm Bushing

706004511

$13.49

Ball Joint

706202044

$35.99

Circlip

293370035

$2.64

RH Upper Suspension Arm Ass'y | Includes 20 to 20f

715010990

$158.99

Suspension Arm Bushing

706004511

$13.49

Ball Joint

706202044

$35.99

Circlip

293370035

$2.64

LH Lower Suspension Arm Ass'y | Includes 30 to 30f

715010948

$158.99

Suspension Arm Bushing

706004511

$13.49

Ball Joint

706202045

$35.99

Circlip

293370035

$2.64

RH Lower Suspension Arm As | Includes 40 to 40f

715010949

$158.99

Suspension Arm Bushing

706004511

$13.49

Ball Joint

706202045

$35.99

Circlip

293370035

$2.64

Hex Flange Screw DIN.6921

230601046

$2.64

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 65

207606536

$4.44

Suspension Arm Anchorage

705208352

$134.99

LH CV joint Guard

706202134

$11.01

RH CV joint Guard

706202135

$11.01

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

LH Knuckle

706203212

$179.99

RH Knuckle

706203213

$179.99

Hex. Elastic Hex. Nut M12

250100089

$0.46

Hardened Washer

706200281

$2.85

Hex. Flange Screw M10 X 60

207606044

$3.38

Hex. Flange Elastic Nut M10

233201436

$2.11

Stabilizer Bar Ass'y

706206392

$98.49

Hex. Flange Screw M8 X 50

207685044

$1.69

LH Stabilizer Bar Link

706204268

$72.99

Hex. Flange Elastic Nut M10

233201436

$2.11

RH Stabilizer Bar Link

706204269

$72.99

Hex. Flange Elastic Nut M8

233281414

$1.47
