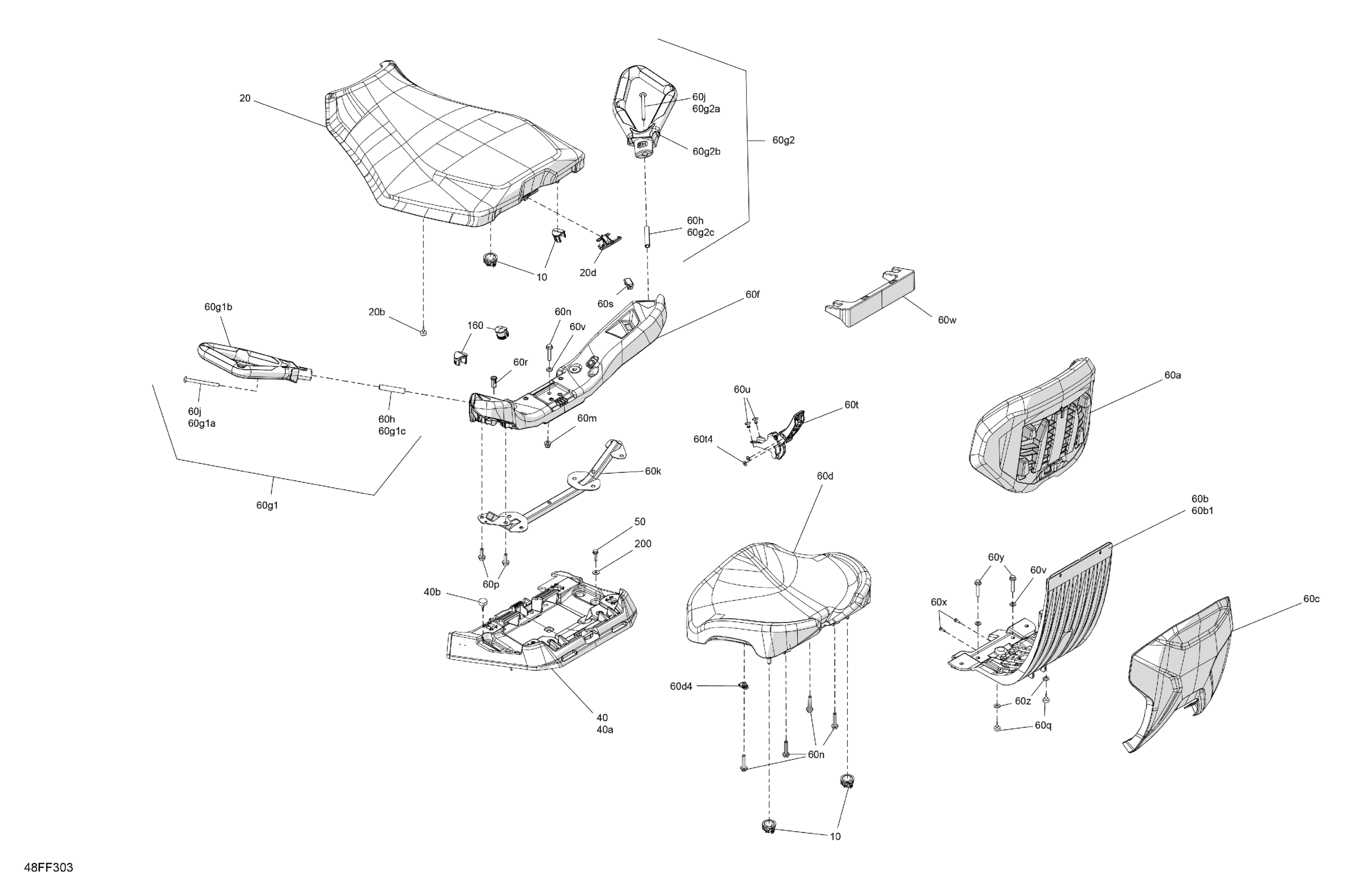

Can-Am CE - OUT-MAX - 4X4 - DPS - 1000R - 4RTB - Granite Grey - 2026 Body - Seat Diagram

Seat Stopper

708003609

$9.11

Driver Seat | Includes 20 to 20d

708003665

$341.51

Seat Stopper

708003866

$3.61

Latch

708000909

$5.89

Seat Anchorage Kit

715010537

$106.12

Seat Anchorage

708003746

Unavailable

Seat Stopper

708003866

$3.61

Hex. Flange Screw M6 X 25

207662544

$0.53

Passenger Backrest

708003747

$489.20

Backrest Support

708003937

$184.58

Backrest Support

708003937

$184.58

Backrest Trim

708003191

$221.51

Seat Cushion Ass'y | Includes 60d to 60d4

708003272

$274.58

Panel Nut M8 X 1.25

250100069

$4.00

Handle Support

708004009

$73.82

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$63.17

Torx Truss M8 X 90

250000806

$6.15

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$63.17

Sleeve

705006129

$14.75

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$63.17

Torx Truss M8 X 90

250000806

$6.15

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$63.17

Sleeve

705006129

$14.75

Sleeve

705009248

$14.75

Torx Truss M8 X 90

250000806

$6.15

Handle Support Reinforcement Ass'y

708004010

$36.89

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 40

207684054

$2.06

Hex. Flange Screw M8 X 25

207682544

$0.90

Seat Stopper

708003866

$3.61

Pilot Lamp Cap

710003910

$3.85

Insert

708001511

$3.85

Seat Latch Ass'y | Includes 60t to 60t4

708003935

$59.97

Stainless Flat Washer M6

234061600

$0.25

Pop Rivet 3/16”

293150108

$1.23

Flat Washer 8 mm

234081410

$0.69

Backrest Support Reinforcement

708004106

$17.66

Torx Screw K50 X 16

250000720

$1.39

Hex. Flange Screw S.GRIP M8 X 30

207583054

$1.75

Stainless Steel Flat Washer

234062670

$1.74

Cap

708004198

$5.52

Flat Washer 6 mm

234062410

$0.64
