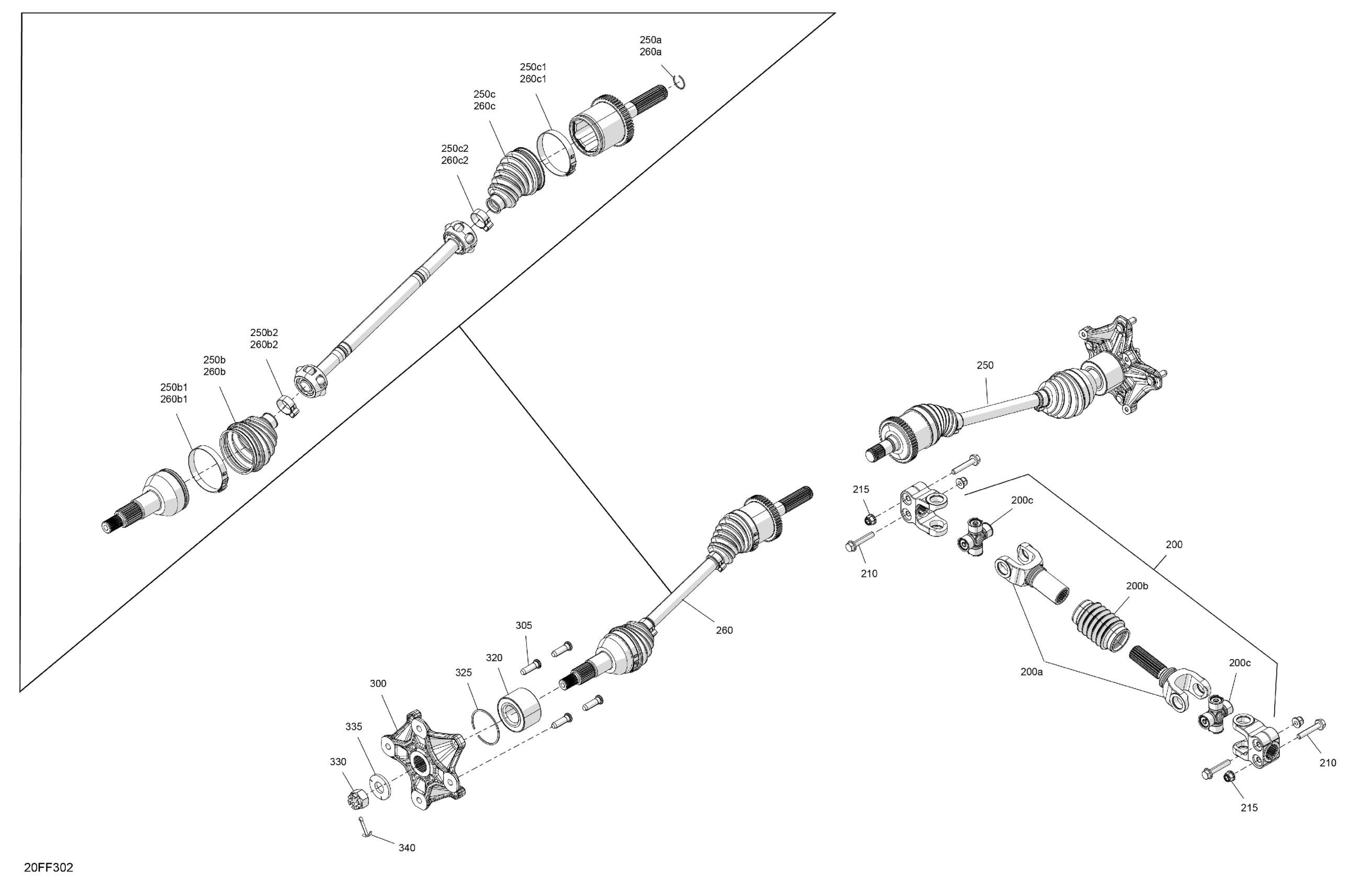

Can-Am OUT-MAX - 4X4 - XT - 850 - 4STD - Fiery Red Metallic - 2026 Drive - Front - Common Parts Diagram

Description

Price

200

Front Drive Axle

705403806

$175.34

200a

Connecting Yoke

715900998

$35.79

200b

Drive Shaft Boot Kit

715900999

$13.28

200c

Universal Joint Ass'y

715901000

$43.25

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

215

Hex. Elastic Flange Nut M8

233281416

$1.25

250

RH Front CV Joint | Includes 250 to 250c2

705403563

$226.84

250a

Circlip Joint

715500455

$4.19

250b

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$39.52

250b1

Clamp Large

715500472

$4.94

250b2

Clamp Small

715500473

$4.45

250c

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$39.52

250c1

Clamp Large

715500474

$4.94

250c2

Clamp Small

715500473

$4.45

260

LH Front CV Joint | Includes 260 to 260c2

705403564

$226.84

260a

Circlip Joint

715500455

$4.19

260b

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$39.52

260b1

Clamp Large

715500472

$4.94

260b2

Clamp Small

715500473

$4.45

260c

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$39.52

260c1

Clamp Large

715500474

$4.94

260c2

Clamp Small

715500473

$4.45

300

Wheel Hub

705503257

$94.00

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

320

Ball Bearing

293350150

$52.21

325

Circlip

293370019

$4.68

330

Hex. Flange Castellated Nut M18

232291413

$2.82

335

Conical Spring Washer M18

250200171

$5.28

340

Cotter Pin

250400071

$1.74
