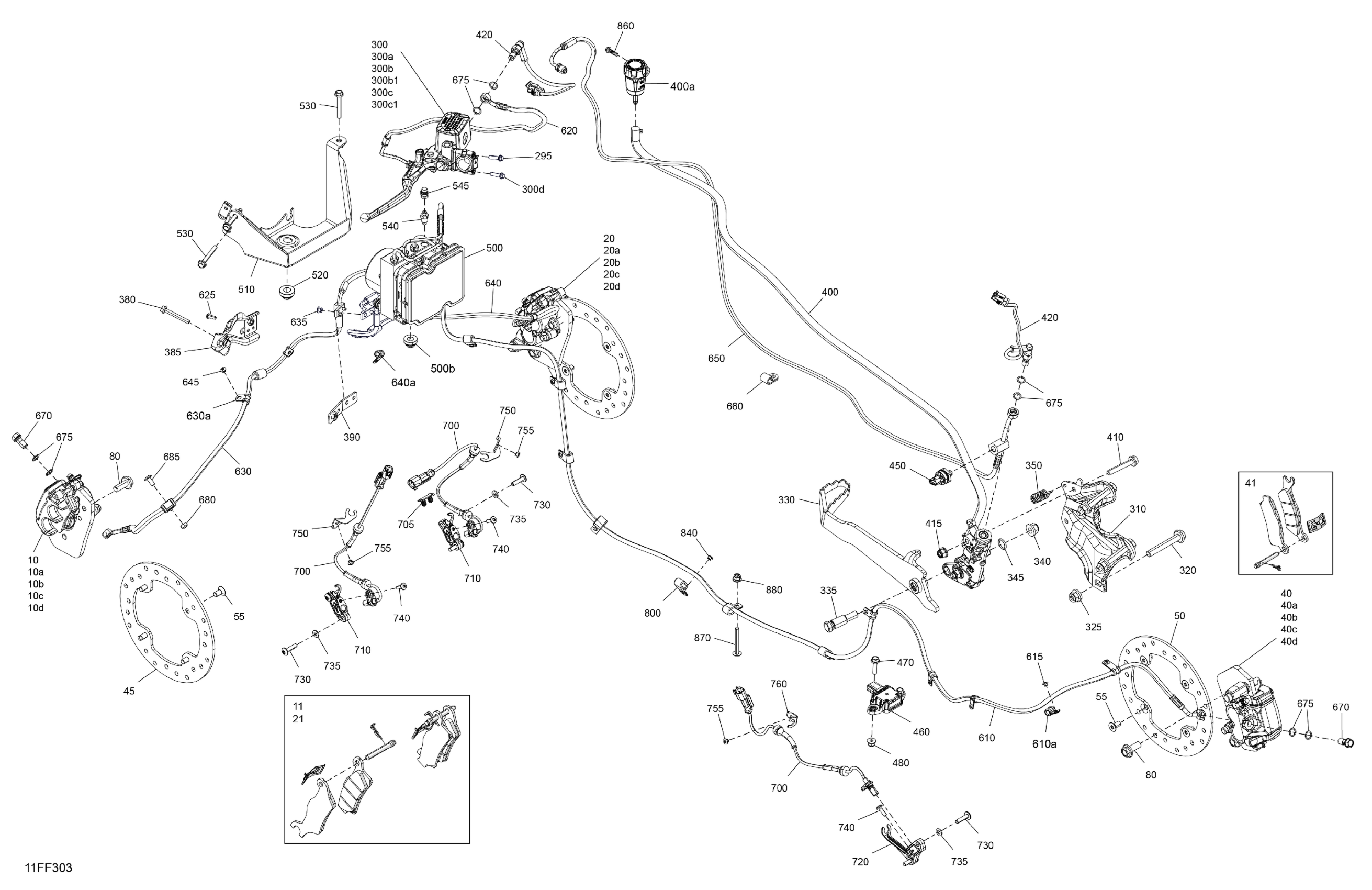

Can-Am OUT-MAX - 4X4 - XT - 850 - 4STD - Fiery Red Metallic - 2026 Mechanic - Brake System Diagram

LH Front Brake Caliper | Includes 10 to 10d

705601808

$269.99

LH Pad Brake

705602070

Unavailable

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

LH/RH Pads Kit

705602167

$105.99

RH Front Brake Caliper | Includes 20 to 20d

705601809

$269.99

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

LH/RH Pads Kit

705602167

$105.99

RH Rear Brake Caliper | Includes 40 to 40d

705601811

$269.99

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

RH Pads Kit

705602168

$52.99

Brake Disc

705602348

$89.99

Brake Disc

705602348

$89.99

Torx Screw M8 X 16, Scotch Grip

235381646

$2.59

Hex. Flange Screw M10 X 25

207502546

$2.19

Hex Flange Screw M6 X 25

229000711

$2.11

LH Front Brake Master Cylinder | Includes 300 to 300d

705602312

$244.99

Master Cylinder Lever

705602075

$54.99

Clamp And Screw Kit

507032477

$23.99

Hex. Flange Screw M6 X 25

250000447

$2.19

Cap Set

219800096

$21.99

Screw M4 X 20

415129356

$2.29

Hex Flange Screw M6 X 25

229000711

$2.11

Master Cylinder Support

705207200

$32.99

Hex. Flange Screw M10 X 70

207607046

$2.99

Hex. Flange Elastic Nut M10

233201436

$2.19

Brake Pedal

705602192

$64.99

Shoulder Screw M10

250000513

$6.89

Hex. Flange Elastic Nut M10

233201436

$2.19

O-Ring Seal

293300285

$3.82

Brake Pedal Spring

705600792

$9.10

Hex. Flange Screw M6 X 45

207664544

$1.49

Hose Support

705602234

$7.19

Hose Support

705602235

$6.63

Rear Brake Master Cylinder Ass'y | Includes 400 to 400a

705602297

$241.76

Brake Fluid Reservoir

705602137

$216.39

Hex. Flange Screw M8 X 50

207685044

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.49

Brake Switch

705601669

$51.99

Oil Pressure Sensor

705602044

$87.28

Yaw Rate Sensor

710005658

$184.99

Hex. Flange Screw M6 X 25

207662554

$1.49

Hex. Flange Elastic Nut M6

233261466

$2.09

MOD ESP WET PROG & GROMMET KIT | Includes 500 to 500b

703501266

$1,379.07

Vibration Damper

710009090

$9.28

Module Support

705602000

$21.61

Vibration Damper

710009090

$9.28

Hex. Flange Screw M6 X 45

207664544

$1.49

Purge Screw M12 X 1.0

705602133

$10.97

Bleeder Bolt Cap

705601190

$4.49

RH Rear Caliper Hose | Includes 610 to 610a

705602241

$73.10

Clamp

293650256

$5.59

Pop Rivet 3/16 X ,425

293150293

$1.49

LH Front Master Cylinder Hose

705602247

$80.57

Screw-Torx Button Head M5 X 14

235551454

$7.69

LH Front Caliper Hose | Includes 630 to 630a

705602236

$73.10

Clamp

293650256

$5.59

Pop Rivet 3/16 X ,425

293150293

$1.49

RH Front Caliper Hose | Includes 640 to 640a

705602237

$73.10

Clamp

293650256

$5.59

Pop Rivet 3/16 X ,425

293150293

$1.49

Rear Master Cylinder Hose

705601835

$80.57

Hose Clamp

293650257

$6.09

Banjo Bolt (M10 x 1.25 thread)

705600609

$1.49

Washer

414920600

$1.90

Pop Rivet 3/16 X ,425

293150293

$1.49

Torx Truss M6X14

250000789

$5.49

Speed Sensor

710006981

$83.99

Clip (double dart)

278002910

$11.12

Molded Sensor Support

705402628

$2.51

Molded Sensor Support

705601955

$2.51

Torx Truss Screw M6 X 25

250000807

$2.19

Flat Washer 6 mm

234061410

$1.49

Torx Screw K50 X 16

250000720

$1.69

Sensor Support

705602166

$2.51

Pop Rivet 3/16 X ,425

293150293

$1.49

Sensor Support

705601986

$2.51

Clamp

293650220

$1.49

Pop Rivet 3/16 X ,425

293150293

$1.49

Hex. Flange Screw K50 X 20

241152060

$1.99

Torx Screw M6 X 50

250000317

$2.19

Hex. Flange Elastic Nut M6

233261466

$2.09
