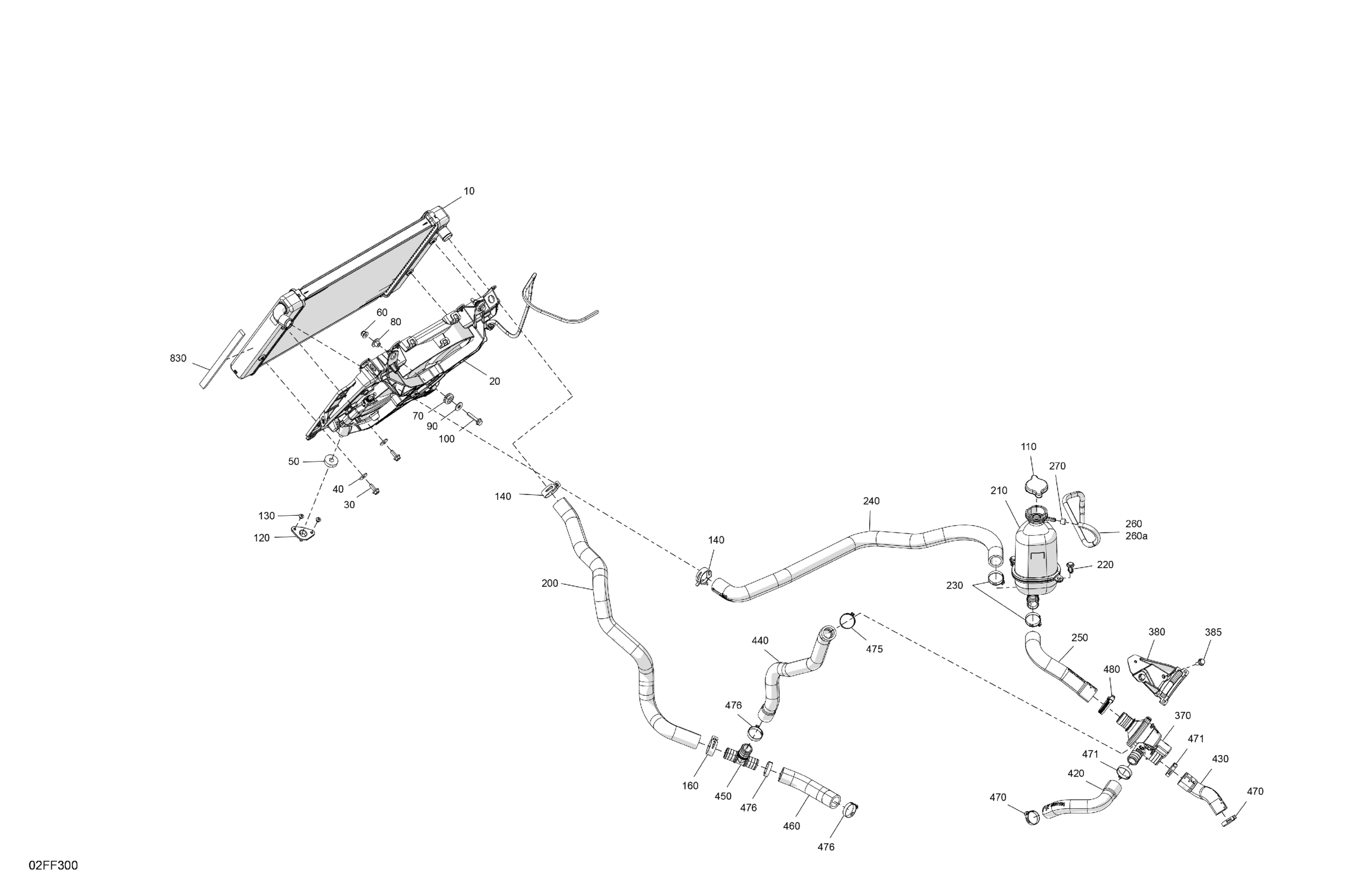

Can-Am OUTLANDER - 4X4 - DPS - 850 - 4CTA - Granite Grey - 2026 Engine - Cooling Diagram

Description

Price

Radiator

709201126

$419.99

Cooling Fan

709201623

$259.99

Hex Flange Screw M6 X 16

250000906

$5.29

Flat Washer 6 mm

234062410

$0.77

Grommet

709200948

$8.89

Hex. Flange Elastic Nut M6

233261466

$2.00

Overmolded Grommet

293720130

$4.69

Bushing

709001288

$9.09

Flat Washer

250200082

$0.42

100

Hex. Flange Screw M6 X 30

207663046

$1.69

110

Radiator Pressure Cap

709200207

$25.49

120

Radiator Support

709201149

$7.19

130

Pop Rivet 3/16 X ,425

293150293

$0.35

140

Norma Spring Clamp

293650108

$4.12

160

Norma Spring Clamp

293650108

$4.12

200

Radiator Hose

709201590

$23.99

210

Coolant Tank

715009560

$99.99

220

Tuflok Plastic Rivet

293150230

$1.47

230

Crimp Clamp

293650331

$4.44

240

Radiator Hose

709201592

$23.99

250

Hose

709201594

$23.99

260

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

260a

Not Available As Spare Parts

XXX

Unavailable

270

Spring Clamp

414554800

$0.88

370

Housing

709201279

$98.99

380

Thermostat Support

709201282

$4.44

385

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

420

Thermostat Hose

709201596

$10.11

430

Thermostat Hose

709201597

$10.11

440

Thermostat Hose

709201598

$18.56

450

T-Fitting

709201420

$16.40

460

Water Pump Hose

709201599

$18.56

470

Crimp Clamp

293650099

$4.29

471

Crimp Clamp

293650331

$4.44

475

Crimp Clamp

293650331

$4.44

476

Crimp Clamp

293650331

$4.44

480

Norma Gear Clamp

293650098

$4.44

830

Seal 3000MM Long

219704386

$28.49
