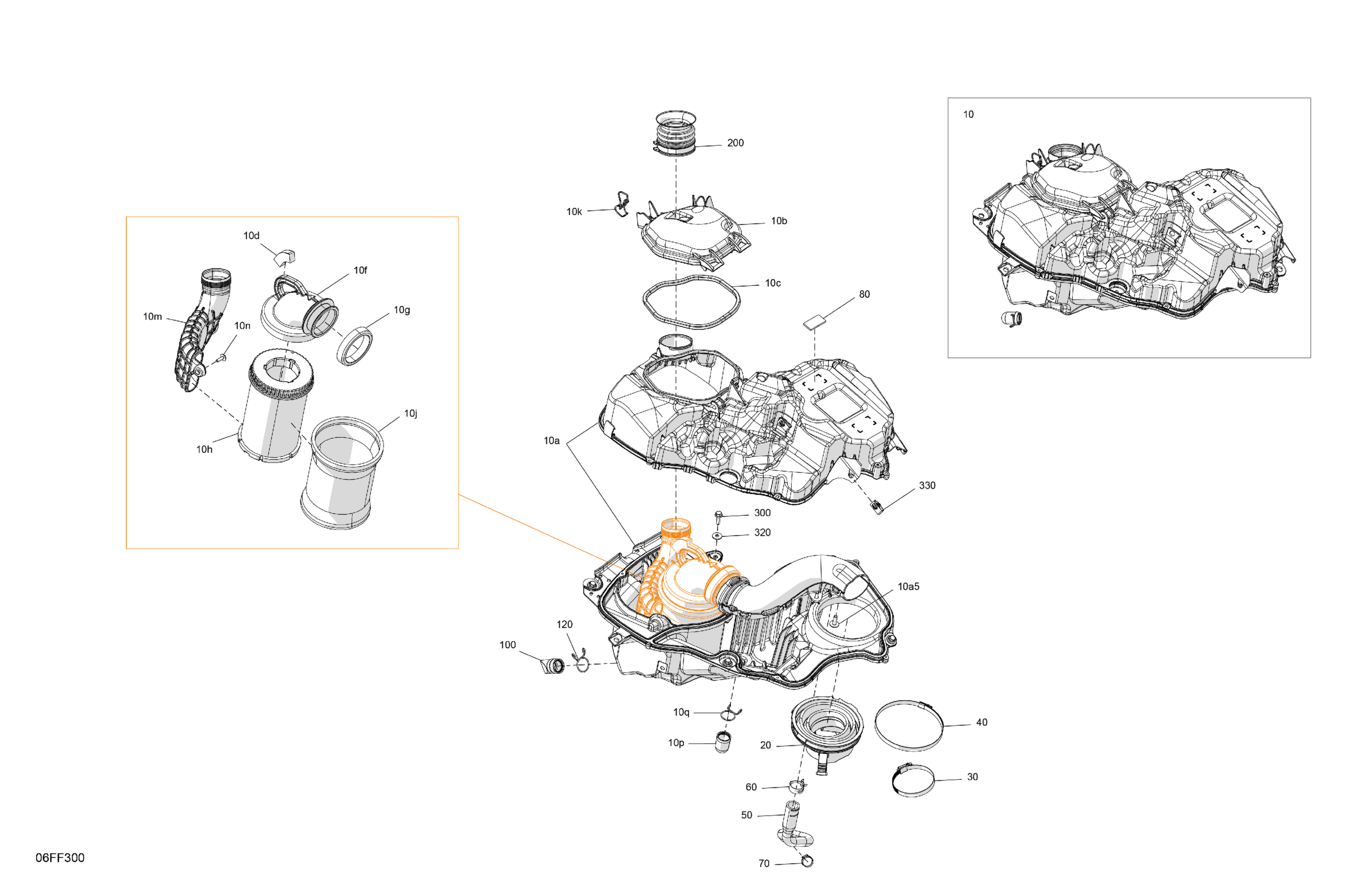

Can-Am OUTLANDER - 4X4 - BACKCOUNTRY - 1000R - 4NTA - CALI - Dark Camo - 2026 Engine - Air Intake Diagram

Description

Price

Intake Silencer Cover Kit | Includes 10 to 10c

715010544

$29.99

10a

Intake Silencer | Includes 10a to 10a5

707801083

$184.99

10a5

Screw PT Type K-50 X 16

250000959

$2.11

10b

Access Cover

707801087

Unavailable

10c

Neoprene Seal

293250630

$3.59

10d

Gasket

293250698

$19.99

10f

Rigid Adapter

707801092

$3.59

10g

Gasket

707801088

$19.99

10h

Air Filter With Prefilter | Includes 10h - 10j

703501249

$51.99

10j

Prefilter

707800887

$27.49

10k

Latch

293730117

$10.49

10m

Secondary Tube

707801086

$22.49

10n

Screw PT Type K-50 X 16

250000959

$2.11

10p

Cap

293000135

$7.79

10q

Spring Clamp

707801043

$13.99

Intake Boot

707801094

$19.99

Norma Clamp

293650091

$11.12

Gear Clamp (Norma)

514052861

$8.29

Crankcase Hose

707801089

$24.99

Norma Spring Clamp

293650213

$3.17

Oetiker Clamp | Europe

293650030

$5.19

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

100

Split Drain Plug

707801098

$2.89

120

Spring Clamp

707801043

$13.99

200

Intake Tip

707801090

$22.99

300

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

320

Flat Washer 6 mm

234062410

$0.77

330

Panel Nut M6 X 1.0

250100198

$2.11
