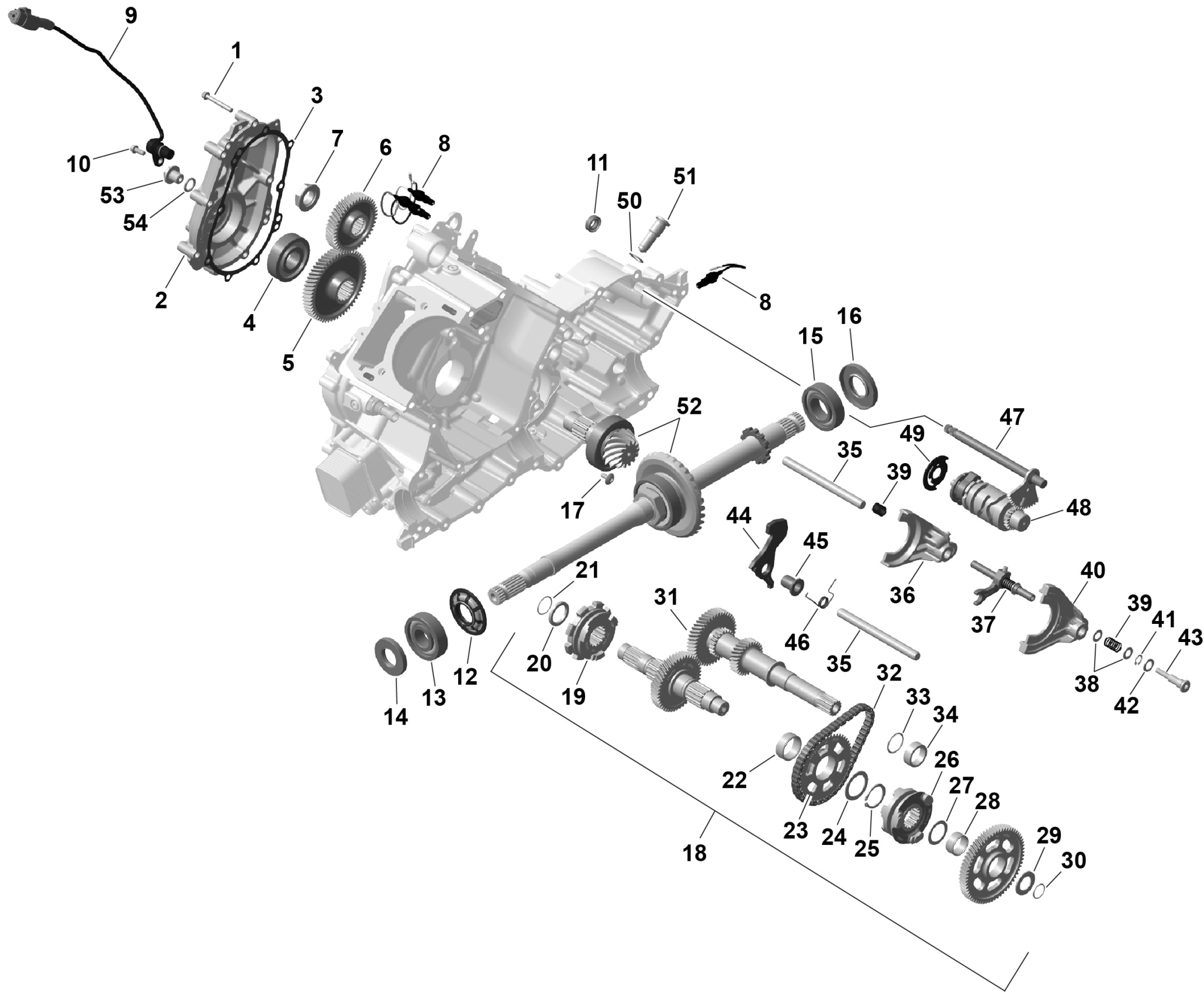

Can-Am OUTLANDER - 4X4 - DPS - 850 - 4CTA - Granite Grey - 2026 ROTAX - GearBox Diagram

#

Description
Price

1

Torx Flange Screw M6 X 45

420440324

$0.81

2

Gear Box Cover

420686891

$55.35

3

Gasket | Included in gasket kit

420651275

$18.43

4

Ball Bearing

420932822

$28.97

5

Intermediate Gear 49 Teeth

420235773

$73.82

6

Intermediate Gear 47 Teeth

420235771

$73.82

7

Hex. Flange Nut M22X1

420842245

$16.89

8

3 Position Switch

420640192

$41.51

9

Camshft Position Sensor Ass'y

420265727

$104.49

10

Torx Flange Screw M6 X 16

420440164

$2.31

11

Oil Seal

420250455

$15.22

12

Oil Seal | Included in engine gasket set

420931941

Unavailable

13

Ball Bearing

420932822

$28.97

14

Oil Seal

420831178

$34.19

15

Ball Bearing

420932580

$9.09

16

Oil Seal 32X60X7 | Included in gasket kit

420830753

$36.89

17

Torx Screw M6X13

420240051

$0.85

18

Main Shaft Ass'y

420820420

$264.99

19

Shifting Sleeve

420257255

$46.12

20

Thrust Washer

420227864

$8.29

21

O-Ring

420931391

$10.14

22

Needle Bearing

420632359

$7.00

23

Pinion Gear 49 Teeth

420934190

$102.28

24

Thrust Washer

420626875

$3.68

25

Retaining Ring

420945620

$4.60

26

Shifting Sleeve

420257244

$46.12

27

Thrust Washer

420427012

$3.68

28

Needle Bearing

420632075

$7.00

29

Thrust Washer

420627301

$7.37

30

O-Ring

420230371

$9.29

31

Countershaft

420820415

$129.20

32

Distance Ring

420247591

$18.43

33

O-Ring | Included in gasket kit

420631616

$3.47

34

Distance Ring

420247591

$18.43

35

Dowel Pin 12X140

420229242

$7.37

36

Shift Fork

420657695

$41.51

37

Shifting Block Ass'y

420657707

$36.89

38

Thrust Washer

420827590

$3.86

39

Spring

420638151

$4.60

40

Gearshift Fork Ass'y

420657685

$41.51

41

Snap Ring

420245330

$1.43

42

Aluminum Sealing Ring

420250016

$4.41

43

Bearing Screw M12X1.5

420240921

$11.06

44

Parking Lock Lever

420657760

$78.43

45

Collar Sleeve

420647132

$36.89

46

Helical Spring

420638185

$7.37

47

Shift Shaft Ass'y

420820346

$91.51

48

Shifting Drum Ass'y

420657666

$290.74

49

Isolating Washer

420637955

$5.52

50

Gasket Ring

420430624

$1.51

51

Index Screw Ass'y M16X1.5

420441395

$14.75

52

Not Available As Spare Parts

XXX

Unavailable

53

Plug Screw M14 X 1.5

420241662

$14.37

54

O-Ring

420650352

$0.88
