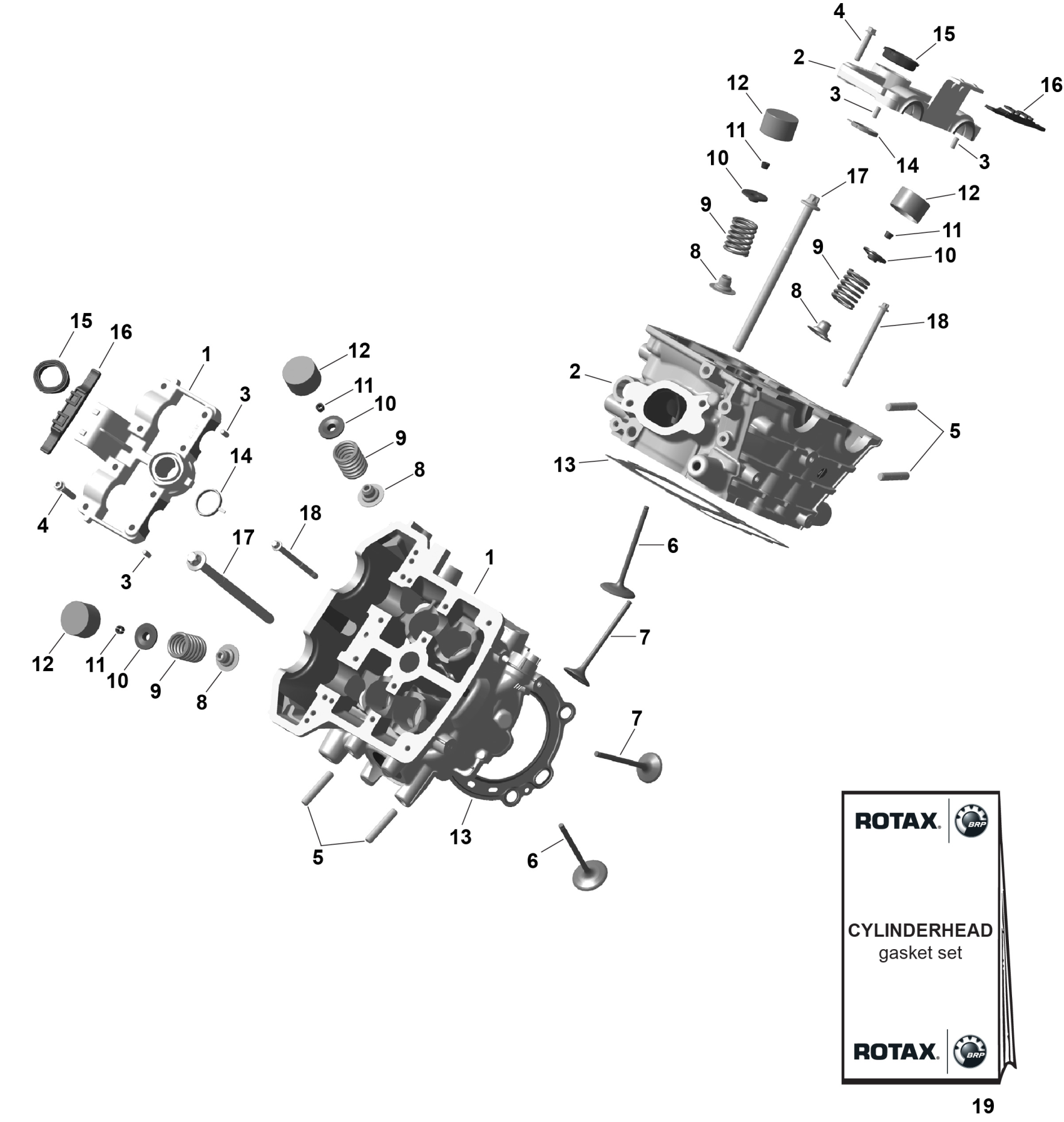

Can-Am OUTLANDER - 4X4 - DPS - 850 - 4CTA - Granite Grey - 2026 ROTAX - Cylinder Head Diagram

#

Description
Price

1

Front Cylinder Head Ass'y | Includes no. 1 and 3-5

420613533

$668.63

2

Rear Cylinder Head Ass'y | Includes no. 2-5

420413563

$668.63

3

NEEDLE PIN - Call your local BRP dealership

420232710

Unavailable

4

Torx Flange Screw M6 X 30

420440647

$1.91

5

Stud M8 x 26

420941014

$12.15

6

Intake Valve 36.5 MM

420254421

$38.03

7

Exhaust Valve 31 MM

420254425

$41.76

8

Valve Stem Seal | Included in engine gasket set

420630252

$4.96

9

Valve Spring

420939585

$9.19

10

Valve Spring Retainer

420855191

$8.72

11

Valve Cotter

420254602

$1.88

12

Valve Lifter Bucket 34/3.00

420954200

$7.90

12

Valve Lifter Bucket 34/3.04

420954202

$7.90

12

Valve Lifter Bucket 34/3.06

420954203

$7.90

12

Valve Lifter Bucket 34/3.08

420954204

$7.90

12

Valve Lifter Bucket 34/3.02

420954201

$7.90

12

Valve Lifter Bucket 34/3.20

420954210

$7.90

12

Valve Lifter Bucket 34/3.22

420954211

$7.90

12

Valve Lifter Bucket 34/3.24

420954212

$7.90

12

Valve Lifter Bucket 34/3.18

420954209

$7.90

12

Valve Lifter Bucket 34/3.10

420954205

$7.90

12

Valve Lifter Bucket 34/3.16

420954208

$7.90

12

Valve Lifter Bucket 34/3.14

420954207

$7.90

12

Valve Lifter Bucket 34/3.12

420954206

$7.90

12

Valve Lifter Bucket 34/3.26

420954213

$7.90

12

Valve Lifter Bucket 34/3.40

420954220

$7.90

12

Valve Lifter Bucket 34/3.38

420954219

$7.90

12

Valve Lifter Bucket 34/3.36

420954218

$7.90

12

Valve Lifter Bucket 34/3.34

420954217

$7.90

12

Valve Lifter Bucket 34/3.32

420954216

$7.90

12

Valve Lifter Bucket 34/3.30

420954215

$7.90

12

Valve Lifter Bucket 34/3.28

420954214

$7.90

12

Valve Lifter Bucket 34/3.44

420954222

$7.90

12

Valve Lifter Bucket 34/3.46

420954223

$7.90

12

Valve Lifter Bucket 34/3.48

420954224

$7.90

12

Valve Lifter Bucket 34/3.50

420954225

$7.90

12

Valve Lifter Bucket 34/3.42

420954221

$7.90

13

Cylinder Head Gasket | Included in engine gasket set

420450341

$103.70

14

Camshaft Housing Gasket

420431760

$3.01

15

Valve Cover Gasket

420431751

$3.01

16

Upper Chain Guide

420936540

$5.76

17

Torx Screw M10 X 159

420441287

$11.81

18

Torx Flange Screw M6 X 85

420641228

$7.01

19

Gasket Set

703501252

$103.70
