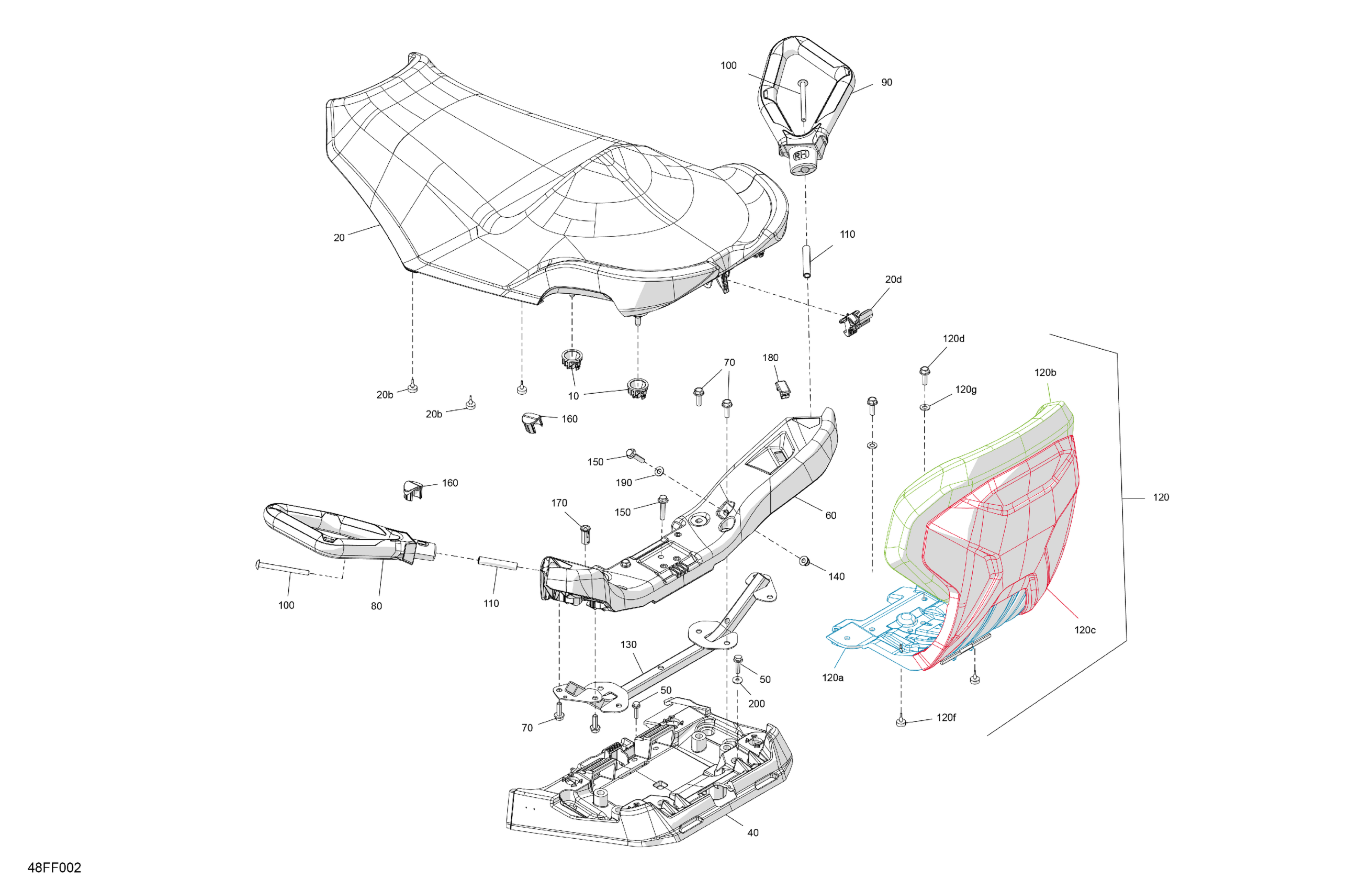

Can-Am OUT-MAX - 4X4 - DPS - 500 - 1VTB - Legion Red - 2026 Body - Seat Diagram

#

Description
Price

4950a

Hex. Flange Screw M8 X 25

207682544

Unavailable

10

Seat Stopper

708003609

Unavailable

20

2 Places Seat | Includes 30 to 30b

708003927

Unavailable

20b

Seat Stopper

708003866

Unavailable

20d

Seat Latch

708003926

Unavailable

40

Seat Anchorage

708003811

Unavailable

50

Hex. Flange Screw M6 X 25

207662544

Unavailable

60

Handle Support This part replaces 708003812.

708003812

Unavailable

70

Hex. Flange Screw M8 X 25

207682544

Unavailable

80

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

Unavailable

90

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

Unavailable

100

Torx Truss M8 X 90

250000806

Unavailable

110

Sleeve

705009248

Unavailable

120

Backrest Support Ass'y | Includes 120 to 120g

708004004

Unavailable

120a

Backrest Support

708003937

Unavailable

120b

Passenger Backrest

708003112

Unavailable

120c

Backrest Trim

708003191

Unavailable

120d

Hex. Flange Screw M8 X 25

207682544

Unavailable

120f

Seat Stopper

708003866

Unavailable

120g

Flat Washer 8 mm

234081410

Unavailable

130

Handle Support Reinforcement Ass'y

708003529

Unavailable

140

Hex. Flange Elastic Nut M8

233281414

Unavailable

150

Hex. Flange Screw M8 X 40

207684054

Unavailable

160

Cap

708004198

Unavailable

170

Pilot Lamp Cap

710003910

Unavailable

180

Insert

708001511

Unavailable

190

Flat Washer 8 mm

234081410

Unavailable

200

Flat Washer 6 mm

234062410

Unavailable
