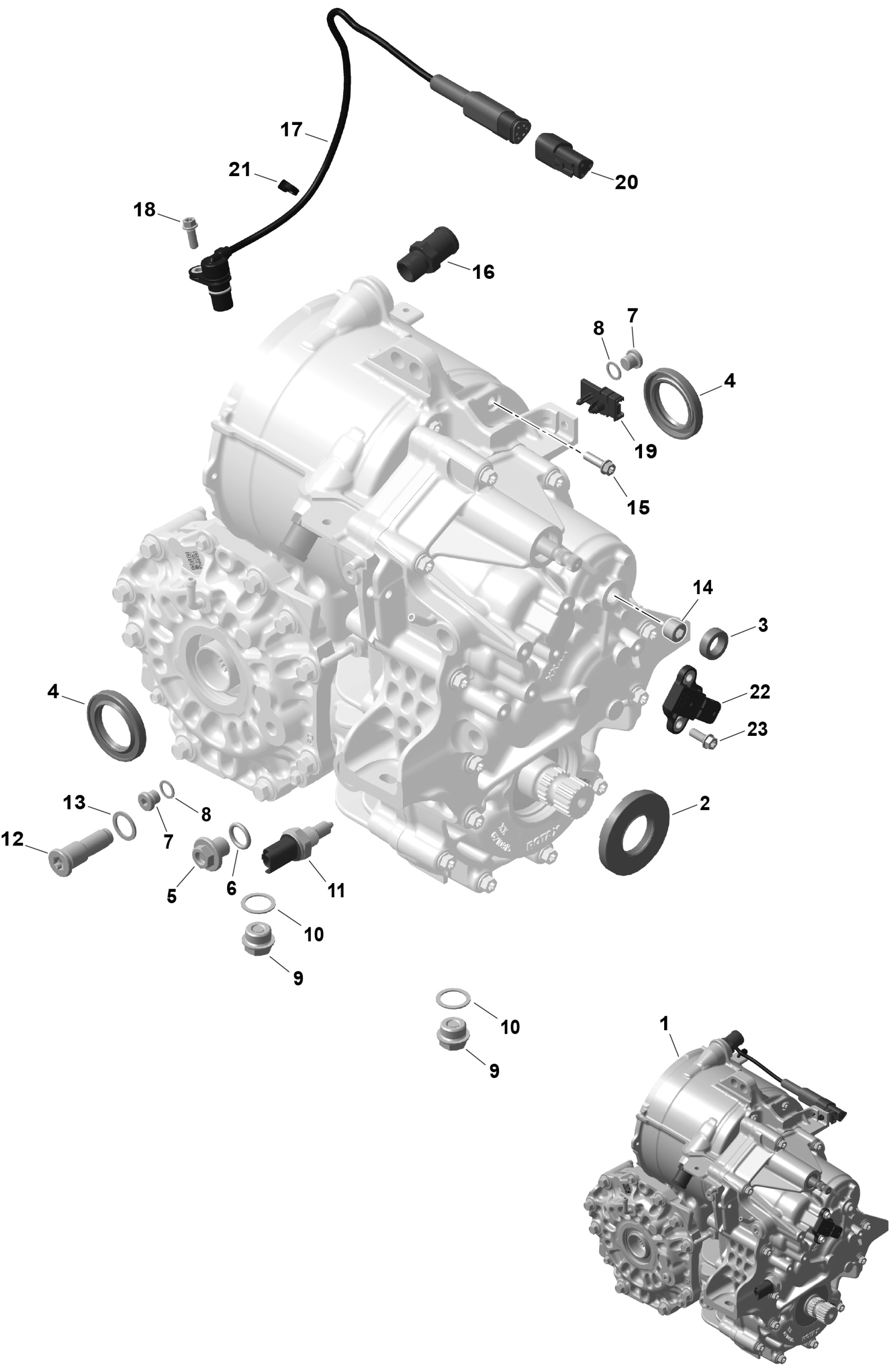

Can-Am OUTLANDER - 4X4 - EV - 2WTA - Granite Grey - 2026 ROTAX - GearBox Diagram

#

Description
Price

1

Gearbox

420686574

Unavailable

2

Oil Seal 32X60X7 | Included in gasket kit

420830753

$35.79

3

Oil Seal

420250457

$14.57

4

Oil Seal

420831187

$14.57

5

Plug Screw M14 X 1.5

420241662

$13.51

6

O-Ring

420650350

$10.12

7

Plug Screw M10 X 1.5

420641326

$12.15

8

Oil Seal

420230154

$2.85

9

Drain Plug M18 X 1.5

420840278

$22.36

10

Crush Washer

420552280

$3.43

11

Switch

420640196

$21.61

12

Index Screw Ass'y M16X1.5

420441395

$14.22

13

Gasket Ring

420430624

$1.73

14

Plug Screw M14 X 1.5

420641309

$12.19

15

Torx Flange Screw M6 X 20

420441835

$3.01

16

Tube Ass'y

420224099

$8.66

17

Camshft Position Sensor Ass'y

420265727

$104.45

18

Torx Flange Screw M6 X 16

420440164

$1.67

19

Speed Sensor Holder

420267729

$9.31

20

Connector Speed Sensor

420267728

$6.13

21

Locking Tie 175 X 4 MM

420651817

$0.99

22

Angle Rotation Sensor

420265123

$25.34

23

Torx Flange Screw M6 X 16

420440162

$3.01
