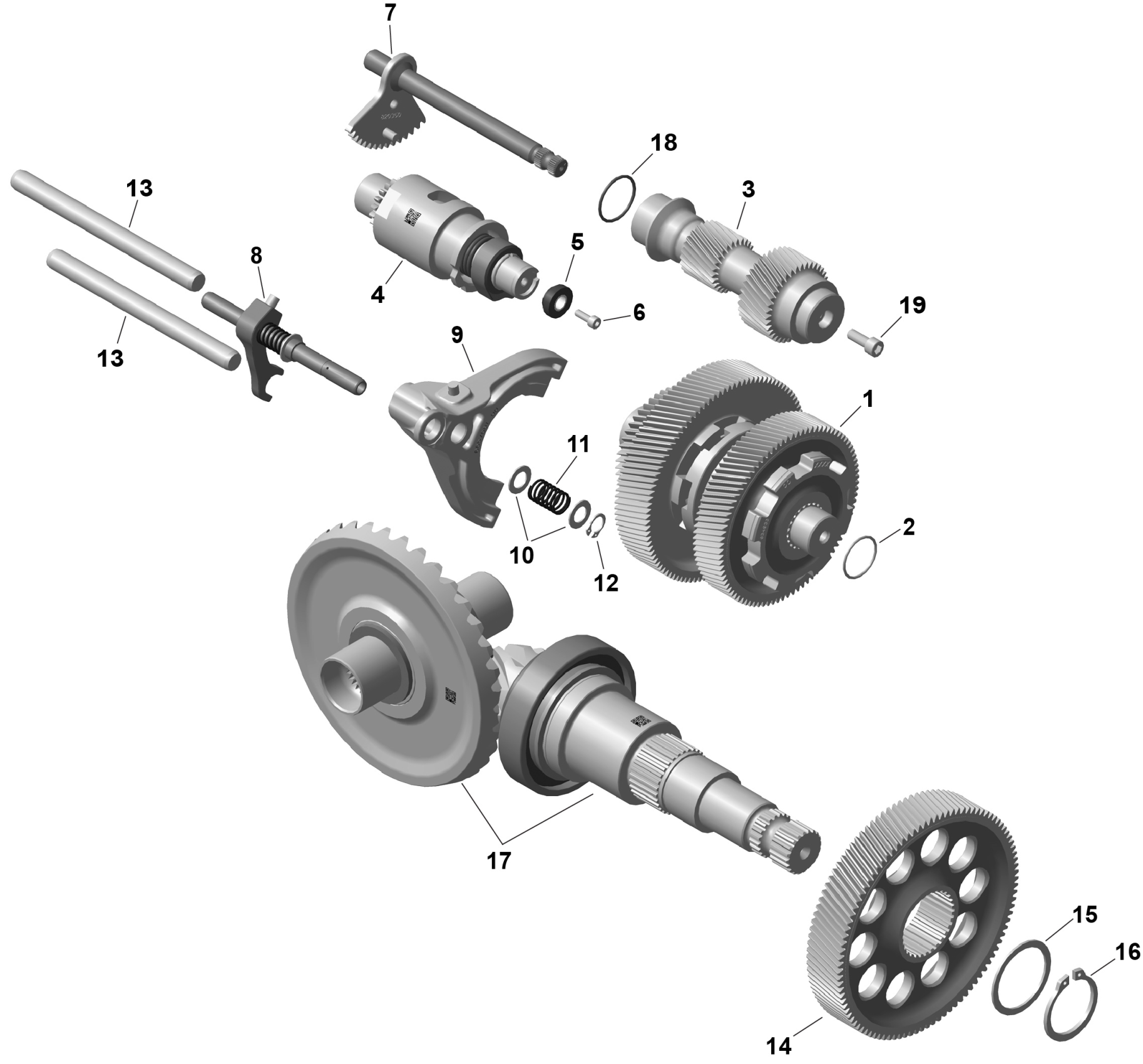

Can-Am Off-Road T Regulation - OUT-MAX - 4X4 - EV - 2VTB - Bright White - 2026 01- ROTAX - GearBox 2 Diagram

#

Description
Price

1

Main Shaft

420220401

Unavailable

2

O-Ring

420931391

$10.59

3

Counter Shaft 37T 25T

420220077

$139.99

4

Shift Drum Ass'y

420257415

$309.99

5

Magnet

420256000

$17.99

6

Allen Screw M4X12 8.8 MK

420440297

$1.01

7

Shift Shaft

420220024

$98.99

8

Guide Pin

420257393

$96.99

9

Shifting Fork Ass'y

420657686

$43.99

10

Thrust Washer

420827590

$4.01

11

Spring

420638151

$4.59

12

Snap Ring

420245330

$1.79

13

Dowel Pin 12X140

420229242

$7.29

14

Intermediate Gear 99T

420434375

$85.99

15

Thrust Washer

420626831

$12.65

16

Retaining Ring

420945727

$6.59

17

Not Available As Spare Parts

XXX

Unavailable

18

O-Ring | Included In Gasket Set

420650503

$10.59

19

Allen Screw M6 x 16

420241239

Unavailable
