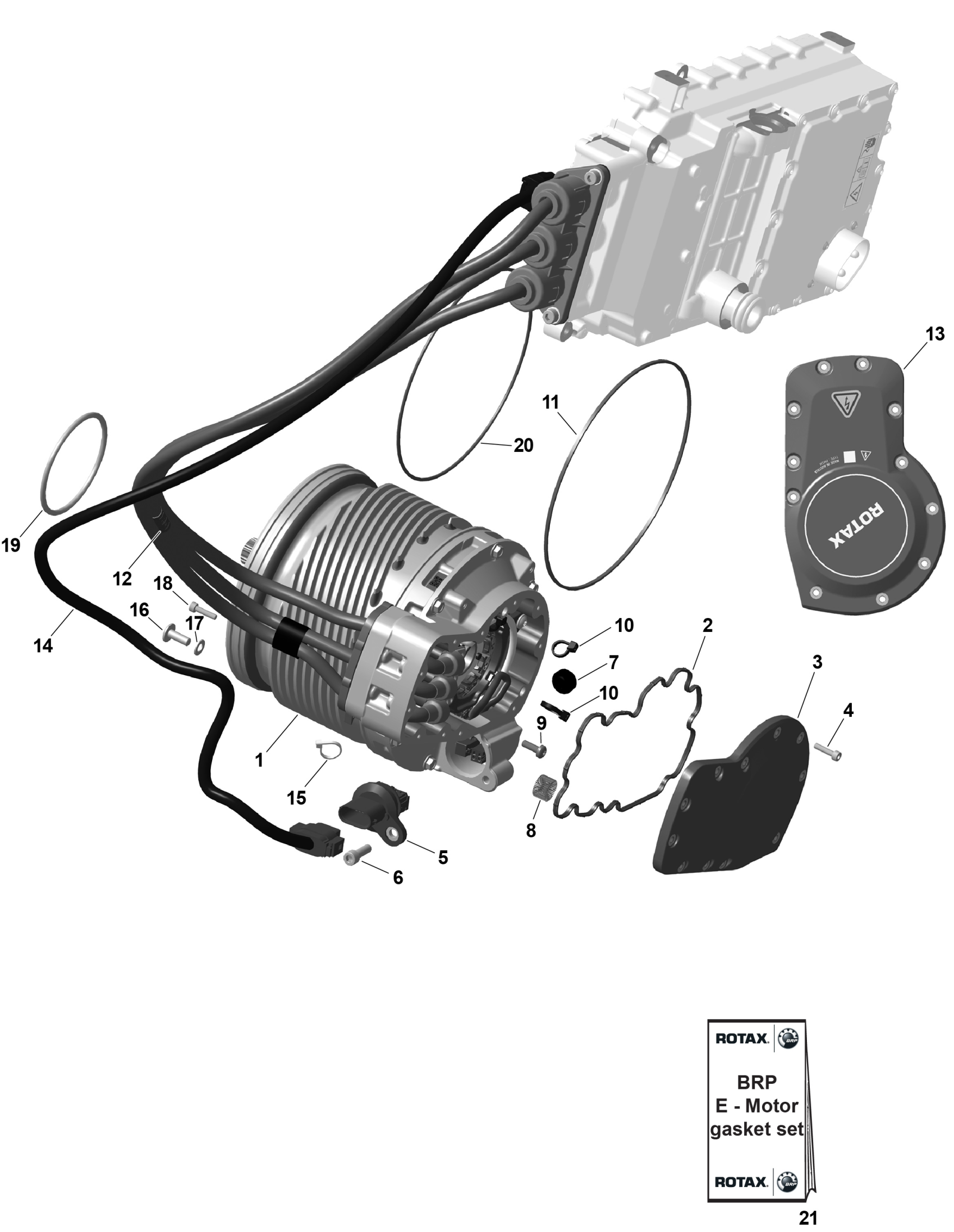

Can-Am Off-Road T Regulation - OUT-MAX - 4X4 - EV - 2VTB - Bright White - 2026 01- ROTAX - E-Motor Diagram

#

Description
Price

1

M-20 Motor Ass'y | Includes no 1-11

420352025

Unavailable

2

Gasket

420651192

Unavailable

3

Motor Cover | Blank ( Without Logo)

420629136

$73.99

4

Allen Screw M4X16

420440303

$5.27

5

Multiple Connector

420264552

$31.99

6

Allen Screw M6x20

420241935

$1.01

7

Vent Plug

420572796

$9.96

8

EMI Spring

420210666

$28.49

9

Flange Screw

420440281

$4.44

10

Tie Rap

420866714

$1.90

11

O-Ring | Included in Gasket Set

420629117

Unavailable

12

Power Harness

420573220

$539.99

13

Socket Head Screw M6 X 20 S.Grip

205562054

$1.90

13

Motor Cover

420201608

$73.99

14

Communication Cable

420898384

$88.99

15

Tie Rap

420866710

$5.49

16

Torx Head Screw M6 X 16

250000717

$2.11

17

Copper Washer

250200185

$1.46

18

Allen Screw M4X16

420440304

$5.27

19

O-Ring

293300278

Unavailable

20

O-Ring Seal

420650502

Unavailable

21

BRP E-Motor Gasket Set

861805574

$94.49
