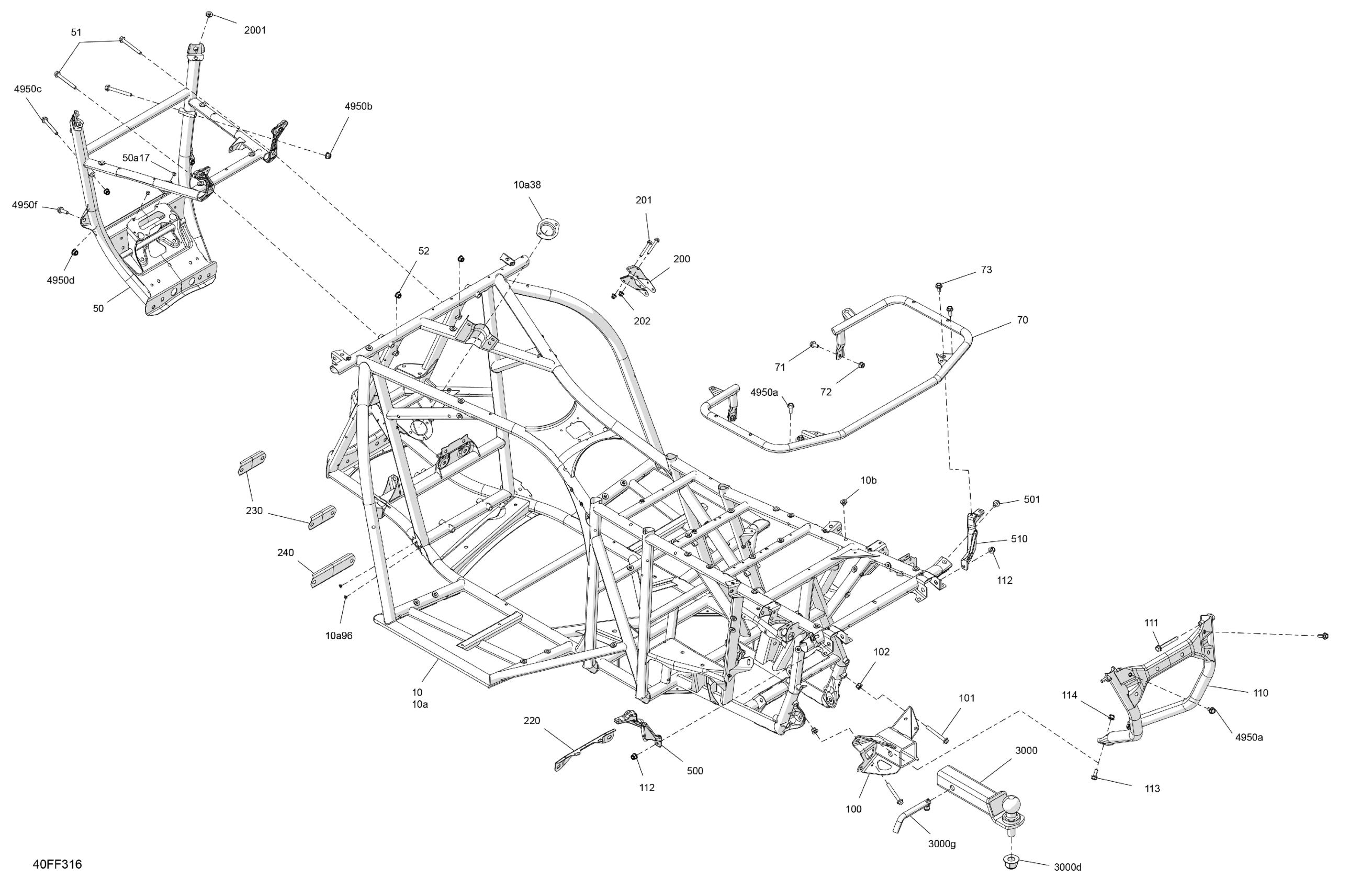

Can-Am OUT-MAX - 4X4 - DPS - 850 - 4PTC - Granite Grey - 2026 Frame - System Diagram

Hex Screw Washer Head M8 X 20

207582054

$2.61

Hex. Flange Nut M8

233181414

$0.91

Hex. Flange Screw S.Grip M8 X 75

250001296

$2.85

Hex. Flange Nut M8

233181414

$0.91

Hex Screw Washer Head M8 X 20

207582054

$2.61

Chassis Max Assy | Includes 10 to 10b

715010933

$2,399.99

Not Available As Spare Parts

XXX

Unavailable

Lower Bearing Support

709402713

$39.52

Pop Rivet 3/16 X ,425

293150293

$0.26

Threaded Insert

293450383

$2.03

Front Bumper | Includes 50 to 50a17

705211446

$246.24

Pop Rivet 3/16 X ,425

293150293

$0.26

Hex. Flange Screw M8 X 70

207687044

$6.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Rear Bumper Anchorage

705211733

$231.31

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Nut M8

233181414

$0.91

Hex Torx Truss M8 X30

250000745

$2.96

Trailer Hitch Kit | Includes 100 to 100a3

715010531

$122.99

Hex. Flange Screw, M8 X 65

207686544

$9.74

Hex. Flange Elastic Nut M8

233281414

$1.14

Rear Chassis Reinforcement Kit

715010516

$91.99

Hex. Flange Screw M8 X 70

207687044

$6.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Elastic Nut M8

233281414

$1.14

Lever Support

705208228

$10.30

Hex. Flange Screw M6 X 45

207664544

$1.07

Hex. Flange Elastic Nut M6

233261466

$1.66

Rear Suspension Arm Reinforcement

705209026

$4.76

Front Upper Suspension Arm Reinforcement

705212296

$4.91

Front Lower Suspension Arm Reinforcement

705211664

$4.91

LH Machined Bumper Anchorage

705211736

$33.55

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

RH Machined Bumper Anchorage

705211738

$33.55

Threaded Insert

293450383

$2.03

Trailer Hitch Ass'y | Includes 3000 to 3000g

705211765

$122.99

Elastic Flange Nut M20

250100104

$9.71

Hitch Pin

705204490

$52.96
