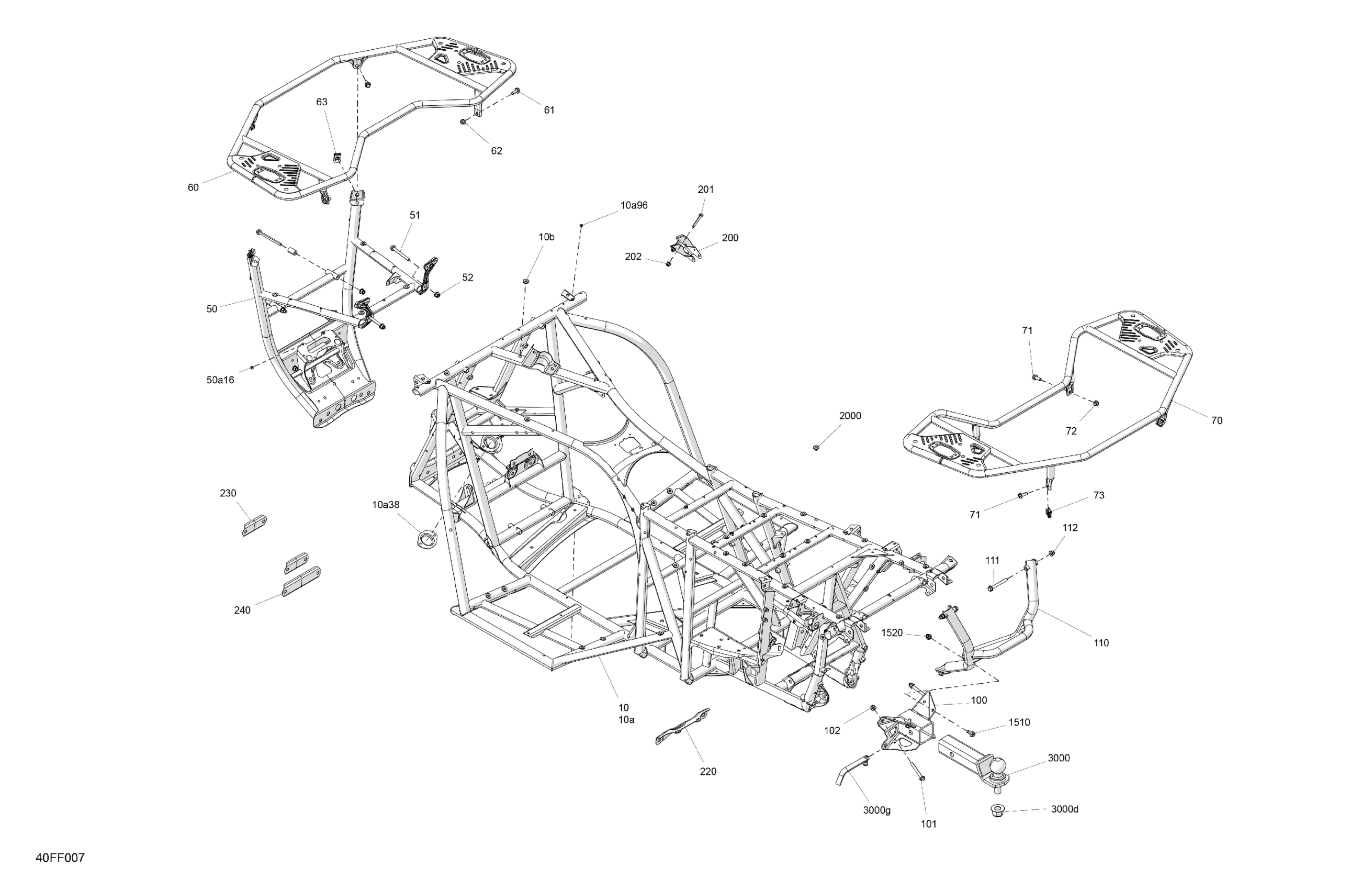

Can-Am OUT-MAX - 4X4 - DPS - 700 - 1WTL - Granite Grey - 2026 Frame - System Diagram

#

Description
Price

10

Chassis Max Assy | Includes 10 to 10b

715010933

$2,399.99

10a

Chassis Max Assy | Includes 10 to 10b

715010933

$2,399.99

10a38

Lower Bearing Support

709402713

$39.52

10a96

Pop Rivet 3/16 X ,425

293150293

$0.26

10b

Threaded Insert

293450383

$2.03

50

Front Bumper | Includes 50 to 50a16

705208429

$246.24

50a16

Pop Rivet 3/16 X ,425

293150293

$0.26

51

Hex. Flange Screw M8 X 70

207687044

$6.11

52

Hex. Flange Elastic Nut M8

233281414

$1.14

60

Deep Black, Front Luggage Rack

705208148

$246.24

61

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

62

Hex. Flange Nut M8

233181414

$0.91

63

Panel Nut M8 X 1.25

250100236

$3.43

70

Deep Black, Rear Luggage Rack

705208247

$231.31

71

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

72

Hex. Flange Nut M8

233181414

$0.91

73

Panel Nut M8 X 1.25

250100236

$3.43

100

Trailer Hitch | Includes 100 to 100a3

705211925

Unavailable

101

Hex. Flange Screw, M8 X 65

207686544

$9.74

102

Hex. Flange Elastic Nut M8

233281414

$1.14

110

Deep Black, Rear Chassis Reinforcement

705212173

Unavailable

111

Hex. Flange Screw M8 X 70

207687044

$6.11

112

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Lever Support

705208228

$10.30

201

Hex. Flange Screw M6 X 45

207664544

$1.07

202

Hex. Flange Elastic Nut M6

233261466

$1.66

220

Rear Suspension Arm Reinforcement

705209026

$4.76

230

Front Upper Suspension Arm Reinforcement

705212296

$4.91

240

Front Lower Suspension Arm Reinforcement

705211664

$4.91

1510

Hex. Flange Screw M8 X 20

207682044

$0.92

1520

Hex. Flange Elastic Nut M8

233281414

$1.14

2000

Threaded Insert

293450383

$2.03

3000

Trailer Hitch Ass'y | Includes 3000 to 3000g

705211827

$122.99

3000d

Elastic Flange Nut M20

250100104

$9.71

3000g

Hitch Pin

705204490

$52.96
