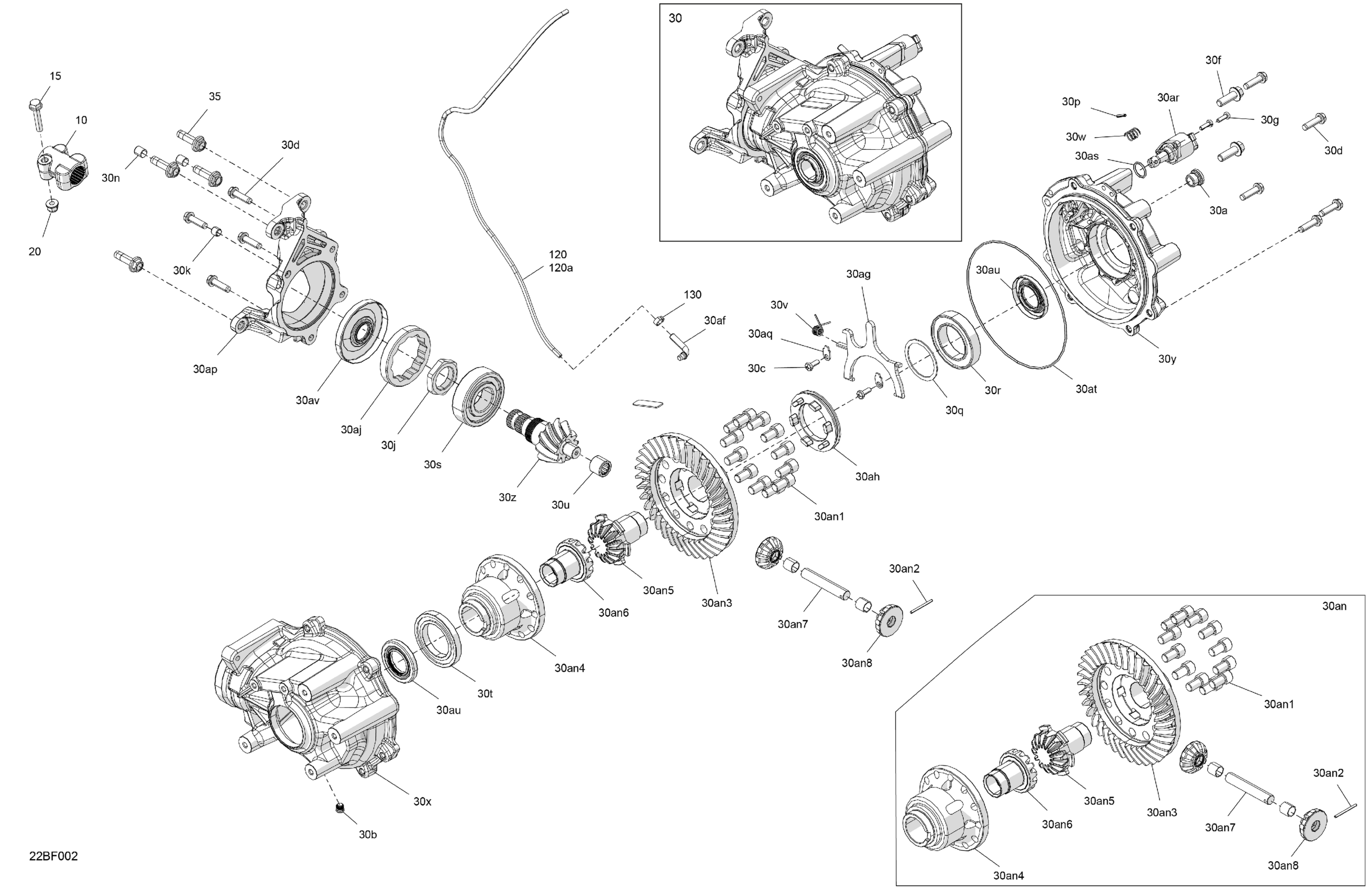

Can-Am Commander - 700 EFI - DPS - 9PTA - Compass Green - 60" Width - CALI, 2026 Drive - Final Drive Unit Diagram

Description

Price

Coupling Sleeve

709402586

$35.99

Hex. Flange Screw M8 X 42

250001050

$1.16

Hex. Elastic Flange Nut M8

233281416

$1.48

Rear Differential Ass'y | Includes 30 to 30av

705503735

$1,568.49

30a

Fill Level Plug

705501889

$20.49

30b

Fill Level Plug M10

715900563

$27.49

30c

Torx Screw M6 X 16

705402845

$11.05

30d

Bolt

705501886

$7.69

30f

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

30g

Screw

715900736

$20.99

30j

Nut

715900737

$32.99

30k

Dowel Pin

715900738

$29.99

30n

Dowel Pin

715900739

$29.99

30p

Spring Pin

715900754

$11.99

30q

Shim

715900740

$37.99

30r

Ball Bearing

715900741

$40.49

30s

Ball Bearing

715900782

$67.99

30t

Ball Bearing

715900742

$28.49

30u

Needle Bearing

705501874

$73.99

30v

Torsion Spring

715900755

$10.49

30w

Compression Spring

715900756

$14.99

30x

Case

715900816

$309.99

30y

Cover

715900840

$211.99

30z

Pinion, 10T Spiral

715900746

$132.49

30af

Vent Valve

705401935

$16.49

30ag

Pivot Fork

715900761

$48.99

30ah

Engagement

715900821

$74.99

30aj

Nut

705501882

$36.99

30an

Differential Sub-Assembly | Includes 30an to 30an8

715900765

$1,009.99

30an1

Screw

715900752

$14.99

30an2

Dowel Pin

715900753

$12.18

30an3

Ring Gear, 36T Spiral

715900757

$299.99

30an4

Carrier

715900758

$184.99

30an5

Output Gear

715900759

$149.99

30an6

Output Gear

715900760

$149.99

30an7

Differential Pin

715900763

$38.99

30an8

Pinion, Differential

715900764

$211.99

30ap

Differential Support

705503213

$189.99

30aq

Retainer Fork | Not Shown

715900766

$14.49

30ar

Servomotor

420265845

$229.99

30as

O-Ring | Included in gasket set gearbox

420450450

$2.19

30at

O-Ring

715900749

$12.11

30au

Oil Seal

715900531

$26.49

30av

Seal

715900751

$42.49

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.11

120

Hose 6.35MM ID

219704534

$25.99

120a

Not Available As Spare Parts

XXX

Unavailable

130

Oetiker Clamp

293650042

$3.09
