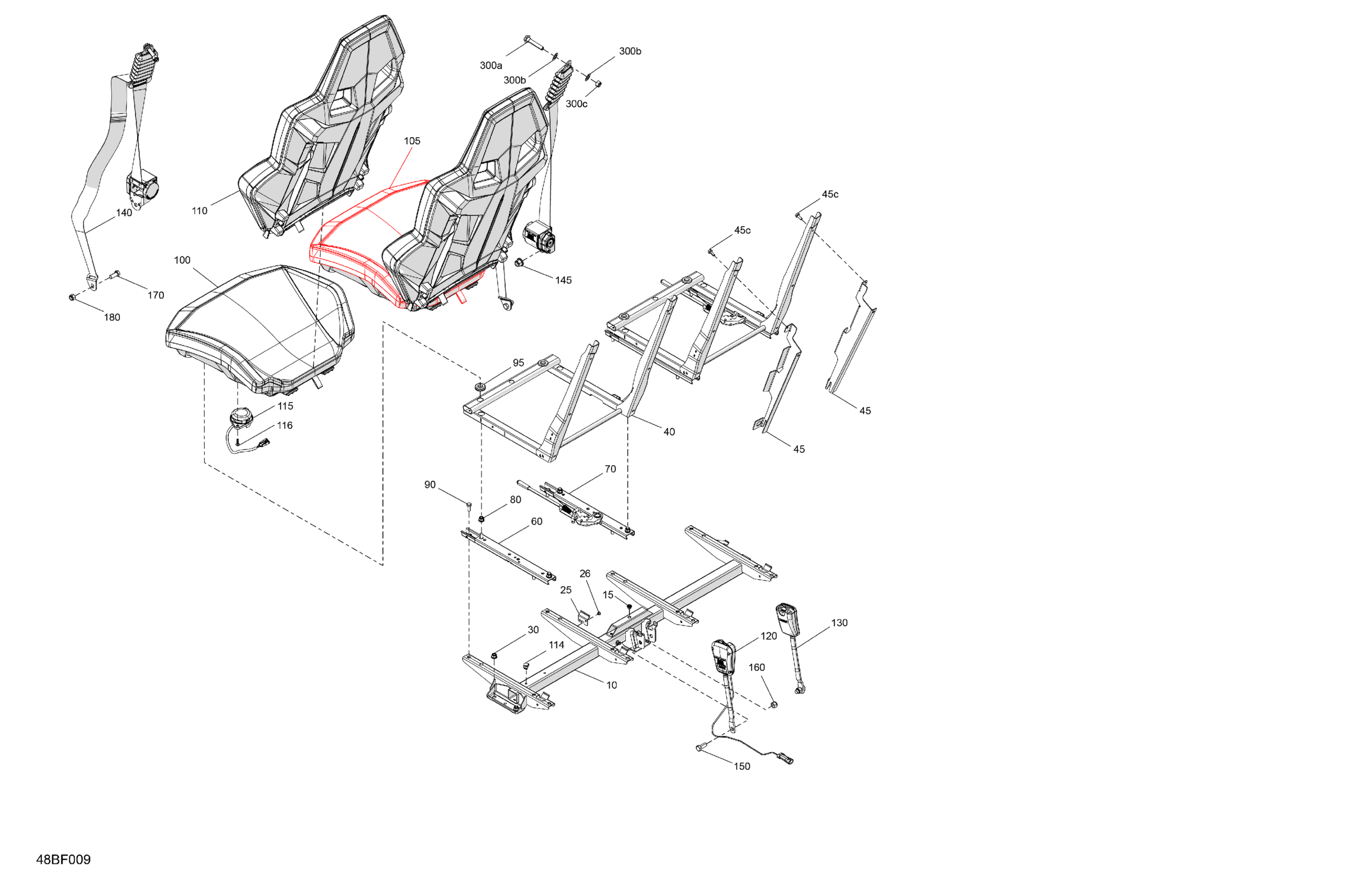

Can-Am Maverick Trail - 700 EFI - BASE - 7RTA - Catalyst Gray - 50" Width, 2026 Body - Seat Diagram

Description

Price

Seat Member

708003469

$499.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Seat Stopper

708003672

$2.59

Pop Rivet 3/16 X ,425

293150293

$0.35

Hex. Flange Elastic Nut M8

233281414

$1.47

Seat Frame

708002423

$329.99

Seat Support Kit | Includes 45 to 45c

708002945

$199.99

45c

Hex. Flange Screw M6 X 16

207661654

$2.11

LH Seat Rail

708003314

$52.99

RH Slide

708003316

$34.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Screw M8 X 20

207182044

$0.74

Grommet

517303756

$4.09

100

Cushion Ass'y

708002839

$249.99

105

Cushion Ass'y

708002839

$249.99

110

Backrest Ass'y

708002430

$349.99

114

Tie Rap Mount (screwable)

515176795

$5.39

115

Passenger Detection Switch

710008103

$76.99

116

Torx Screw Truss Head K50X20 T20

250000760

$2.11

120

Driver Buckle

708002331

$70.99

130

Passenger Buckle

708002329

$67.99

140

Safety Belt

708003378

$238.49

145

Elastic Flange Nut M12

233221416

$2.85

150

Hex. Cap Screw 7/16'' X 1''

250001316

$1.90

160

Lock Nut Nylon 7/16

250100183

$2.00

170

Hex. Cap Screw 7/16'' X 1''

250001316

$1.90

180

Lock Nut Nylon 7/16

250100183

$2.00

300a

Safet Belt Screw

708002443

$19.99

300b

Position Washer

708000891

$1.29

300c

Lock Nut Nylon 7/16

250100183

$2.00
