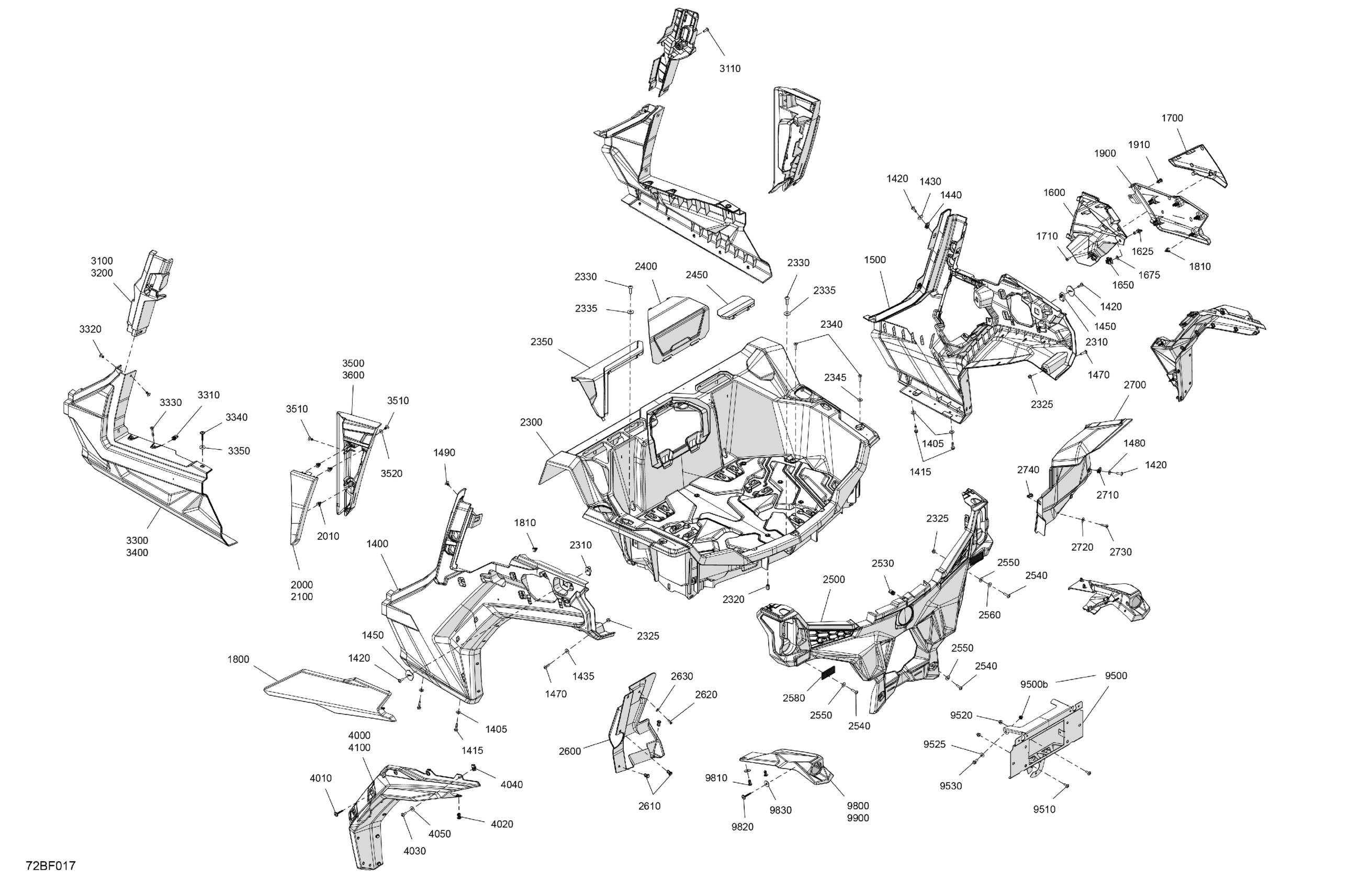

Can-Am Maverick Sport MAX - 1000R EFI - DPS - 9JTA - Timeless Black Metallic - 60" Width, 2026 Body - Rear Section Diagram

LH Rear Panel

705011335

$204.99

Washer

503192494

$3.17

Hex. Flange Screw M6 X 25

207662554

$1.48

Torx Screw M6 X 20

250000722

$1.68

Flat Washer M6.6 X 22

250200162

$2.32

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Support Plate

705003841

$0.99

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Black, Dart

414644300

$0.98

RH Rear Panel

705011336

$204.99

Air Filter Acces Door

705011338

$75.99

Quarter Turn

708400278

$4.29

Clip

708400285

$3.99

Washer

708400286

$3.99

Timeless Black, Access Panel Trim

705019685

$109.99

Torx Screw K50 X 16

250000720

$1.69

Timeless Black, LH Open Carrier Trim

705019686

$184.99

Clip

517306478

$1.09

Timeless Black, RH Open Carrier Trim

705019687

$184.99

Tuflok Plastic Rivet

293150230

$1.47

Timeless Black, LH Rear Panel Trim

705019677

$139.99

Clip

517306478

$1.09

Timeless Black, RH Rear Panel Trim

705019678

$139.99

Rear Box

705016885

$399.99

Panel Nut M6 X 1.0

250100224

$2.11

Hex. Coupling Nut M6

250100207

$2.00

Hex. Elastic Flange Nut M6

233161464

$1.01

Hex Torx Truss M8 X30

250000745

$3.17

Stainless Steel Flat Washer

234082670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

CVT Air Inlet Cover

705011339

$18.99

Liquid Acces Cover

705011341

Unavailable

Air Intake Cover

705011340

$16.99

Rear Fascia

705011426

$169.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Red Reflector

520001820

$20.99

LH Rear Wheel Arch Protector

705015886

$45.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Washer M5

250200025

$0.74

RH Rear Wheel Arch Protector

705016135

$45.49

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Tuflok Plastic Rivet

293150230

$1.47

LH Median Side Panel

705011430

$109.99

Torx Screw M6 X 20

250000722

$1.68

RH Median Side Panel

705011431

$109.99

LH Rear Rocker Panel

705013190

$90.99

Panel Nut M6 X 1.0

250100198

$2.11

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Flat Washer M6.6 X 22

250200162

$2.32

RH Rear Rocker Panel

705013191

$90.99

LH Rear Fixed Panel

705013140

$49.99

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

Washer M5

250200025

$0.74

RH Rear Fixed Panel

705013141

$49.99

LH Rear Mud Guard

705019030

$56.99

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

RH Rear Mud Guard

705019031

$56.99

License Plate Support Ass'y | Includes 9500 to 9500b

705018376

$119.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Torx Truss Screw M6 X 16

250000721

$1.69

Hex. Flange Elastic Nut M6

233261466

$2.00

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 16

207661654

$2.11

LH Rear Flasher Support Model T

705012799

$58.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Stainless Steel Flat Washer

234082670

$2.11

RH Rear Flasher Support Model T

705012800

$30.49
