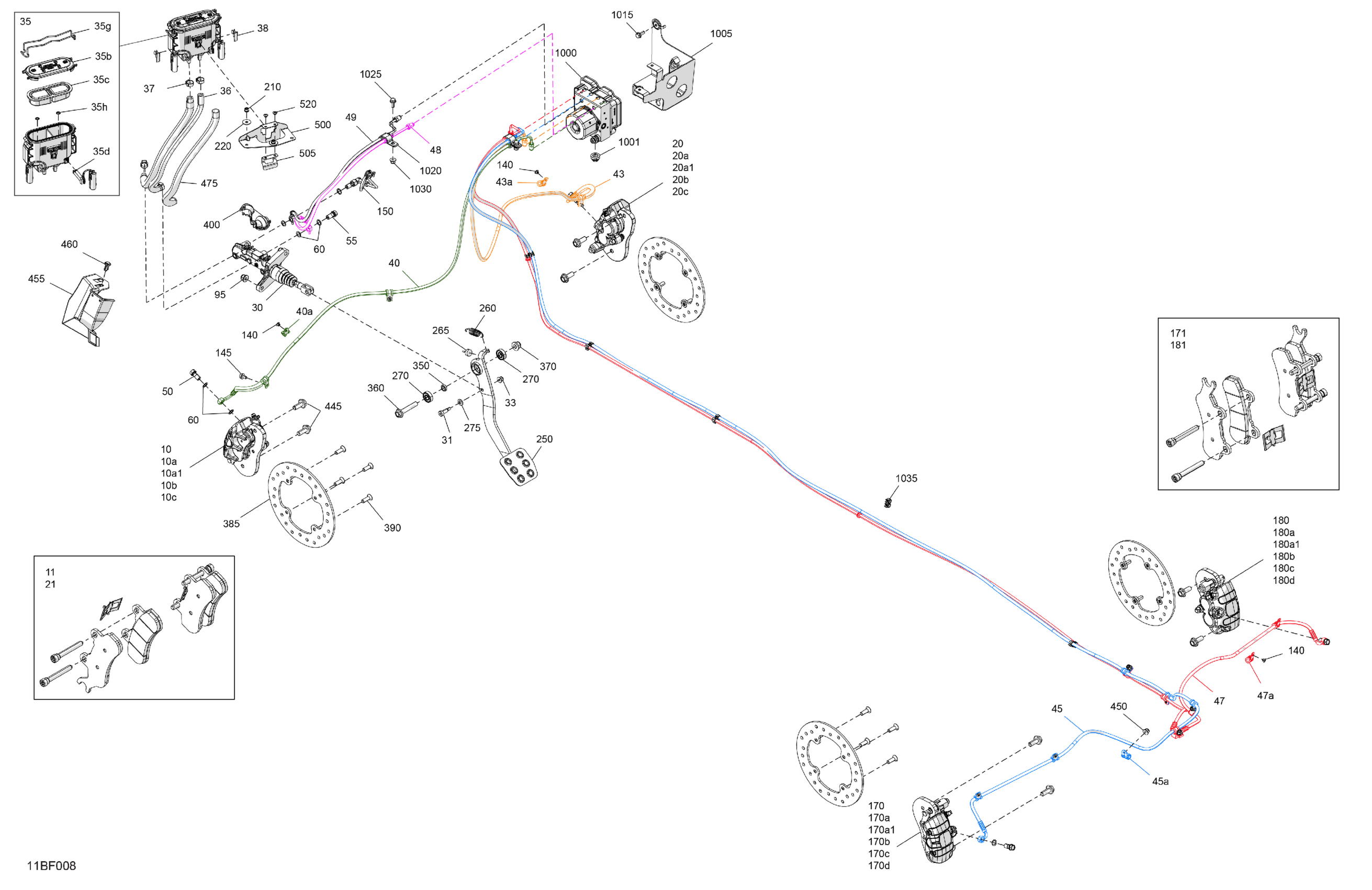

Can-Am Maverick Sport - 1000R EFI - DPS - 9GTA - Timeless Black Metallic - 60" Width, 2026 Mechanic - Brake System Diagram

LH Front Brake Caliper | Includes 10 to 10c

705602180

$360.49

LH Brake Pads

715900379

$79.49

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

Front Brake Pad Set

703501198

$116.49

RH Front Brake Caliper | Includes 20 to 20c

705602181

$370.99

RH Brake Pads

715900380

$79.49

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

Front Brake Pad Set

703501198

$116.49

Master Cylinder

705602306

$379.99

Socket Head Screw M8 X 16

250000669

$3.17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

Diaphragm Cover Ass'y

219800350

$17.59

Diaphragm Cover Ass'y

219800350

$17.59

Oil Level Sensor

705601073

$54.99

Spindle Lock

705601294

$15.81

Push Nut | Not shown

211100002

$2.19

Hose

705601801

$10.49

Oetiker Clamp

293650046

$2.89

Clip

710001343

$9.09

LH Front Caliper Hose | Includes 40 to 40a

705601858

$79.49

Clamp

293650256

$5.49

RH Front Caliper Hose | Includes 43 to 43a

705601859

$86.99

Clamp

293650256

$5.49

LH Rear Caliper Hose | Includes 45 to 45a

705601960

$211.99

Clamp

293650256

$5.49

RH Rear Caliper Hose | Includes 47 to 47a

705601961

$206.49

Clamp

293650256

$5.49

Front Master Cylinder Hose

705601663

$79.49

Rear Master Cylinder Hose

705601664

$86.99

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Copper Washer

705601628

$4.44

Hex. Elastic Flange Nut M8

233281416

$1.48

Pop Rivet 3/16 X ,425

293150293

$0.35

Hex. Flange Screw M6 X 10

210261040

$1.48

Brake Switch

705601669

$51.99

LH Rear Brake Caliper | Includes 170 to 170d

705602184

$264.99

LH Brake Pads

715900386

$79.49

Pin Kit | Packages STD & PRO

715900384

$12.12

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

Rear Brake Pad Set

703501199

$116.49

RH Rear Brake Caliper | Includes 180 to 180d

705602185

$328.49

RH Brake Pads

715900387

$79.49

Pin Kit | Packages STD & PRO

715900384

$12.12

Pin Kit | Packages STD & PRO

715900384

$12.12

Bleeding Screw

705601017

$6.35

Cap Spring Kit

715900385

$17.59

Rear Brake Pad Set

703501199

$116.49

Elastic Flange Nut M5

233251494

$2.11

Flat Washer

250200040

$1.90

Brake Pedal

705601537

$57.99

Brake Pedal Spring

705600792

$9.10

Rubber Stopper

708000759

$4.19

Bearing

705600458

$19.99

Nylon Flat Washer M8

250200183

$1.39

Bushing

705601622

$14.81

Hex. Flange Screw M10 X 55

207605546

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11

Brake Disc

705601511

$66.49

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

Hose Support

705601750

$4.55

Hex. Flange Screw M10 X 25

207502546

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Master Cylinder Deflector

705601626

$8.60

Tuflok Plastic Rivet

293150230

$1.47

Corrugated Sheath 16 mm ID 1000mm | Not Shown

219704651

Unavailable

Reservoir Support

705601644

$14.76

Stopper Bracket

705601608

$7.55

Pop Rivet 3/16 X ,425

293150293

$0.35

Vehicle Control Module Kit

703501232

$1,499.99

Shock Damper

710003279

$10.49

Module Support

705602175

$85.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

OPEN CLAMP - Call your local BRP dealership

515175980

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hose Clip

705601818

$19.09
