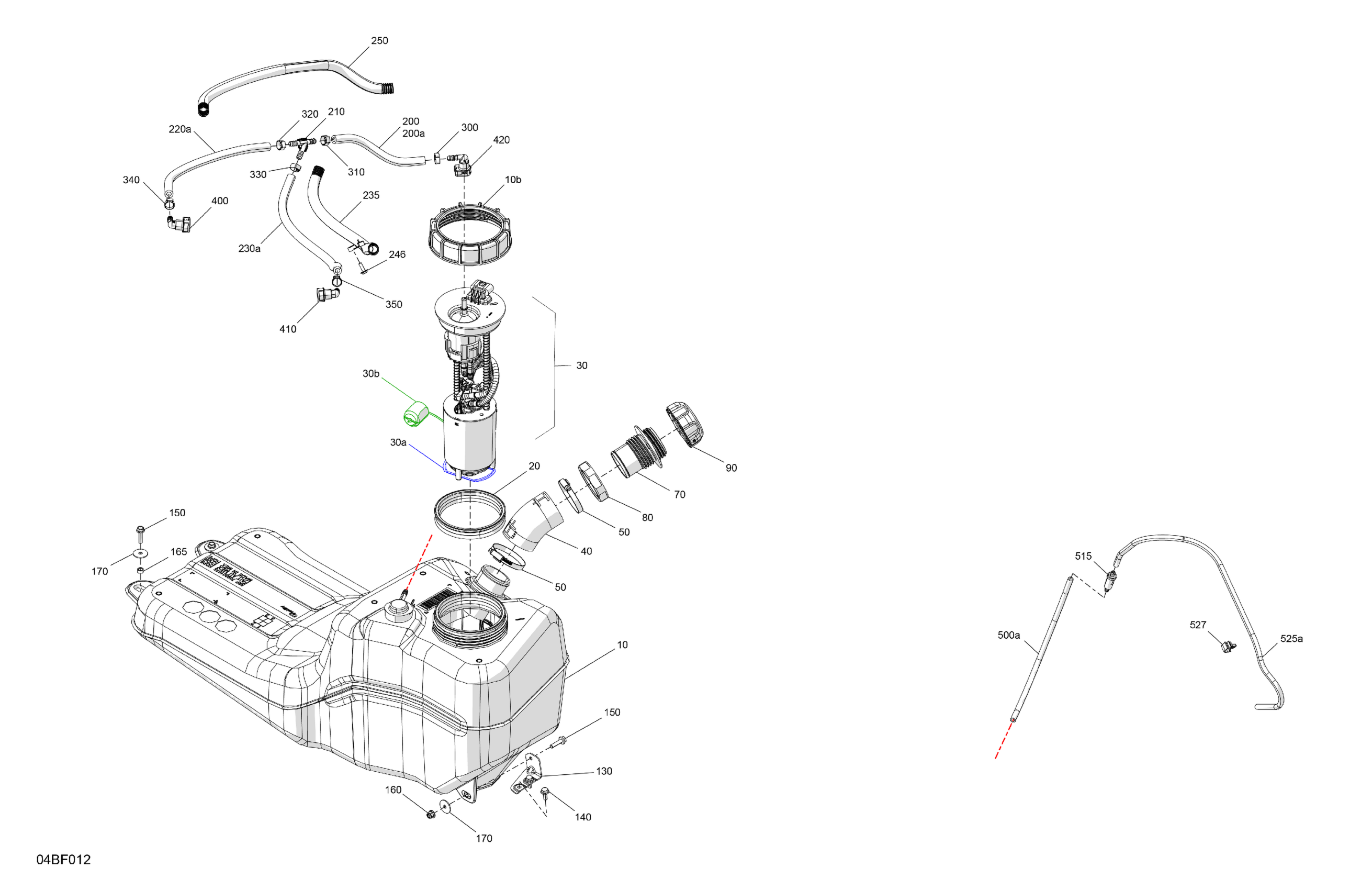

Can-Am Maverick Sport - 1000R EFI - DPS - 9GTB - Timeless Black Metallic - 60" Width, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709001674

$379.07

10b

Special Nut M130

250100062

$20.12

Pump Gasket

293250514

$17.88

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

Filler Neck Hose

709001699

$34.30

Norma Clamp

293650081

$11.33

Filler Neck

709000867

$14.33

Fuel Filler Neck Nut

293600206

$11.51

Fuel Cap

709000868

$29.07

130

Fuel Tank Support

709001453

$5.21

140

Hex. Flange Screw M6 X 16

207661644

$0.70

150

Hex. Flange Screw M6 X 25

207662554

$1.43

160

Hex. Flange Elastic Nut M6

233261466

$1.91

165

Spacer

293900135

$1.04

170

Washer M6

250200029

$1.78

200

Hose 7,94 MM ID

219704621

$81.31

200a

Not Available As Spare Parts

XXX

Unavailable

210

Y Fitting

709001329

$9.85

220a

Hose 7,94 MM ID

219704621

$81.31

230a

Hose 7,94 MM ID

219704621

$81.31

235

Tubing 16 Mm 1000Mm Long

219704408

$7.15

246

Screw PT Type K-50 X 16

250000959

$2.00

250

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

310

Crimp Clamp, 15.3-706R

293650047

$3.03

320

Crimp Clamp, 15.3-706R

293650047

$3.03

330

Crimp Clamp, 15.3-706R

293650047

$3.03

340

Crimp Clamp, 15.3-706R

293650047

$3.03

350

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Disconnect

275500921

$14.48

410

Quick Disconnect

275500921

$14.48

420

Quick Disconnect

275500921

$14.48

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

515

Filter

709001120

$7.48

525a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

527

Tie Rap Mount (screwable)

515176795

$4.96
