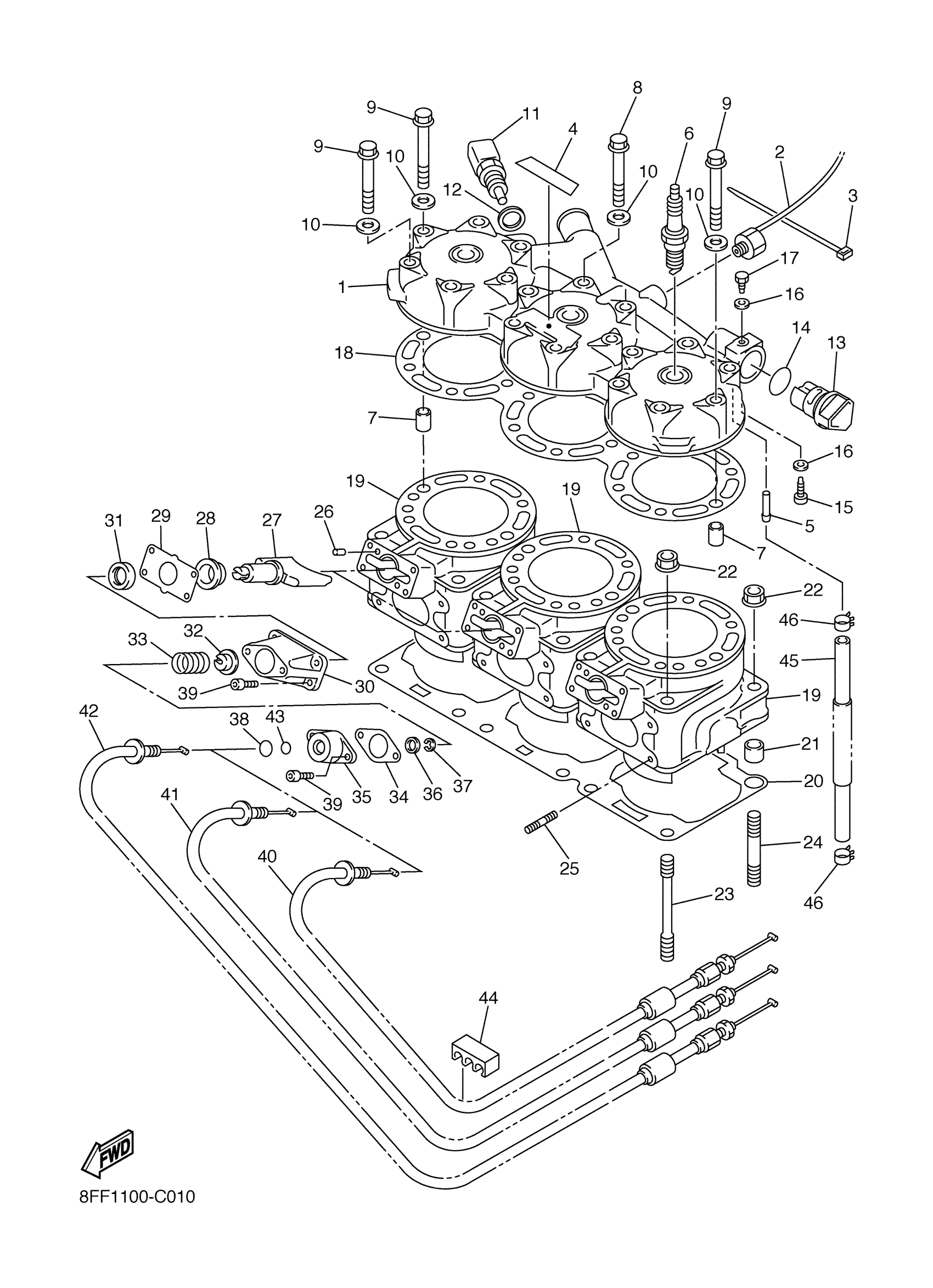

Yamaha SXV70SJ (SX VIPER S) 8FE1 2004 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8FE-11111-00-00

Unavailable

2

SENSOR, KNOCK

8FE-85780-00-00

Unavailable

3

CLAMP

5Y9-12491-00-00

$6.99

4

EMBLEM

8EK-1111K-00-00

Unavailable

5

JOINT, HOSE 3

26H-12584-00-00

Unavailable

6

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, FLANGE

95817-08055-00

$4.21

9

BOLT, WASHER BASED

90105-084A1-00

$10.49

10

WASHER, PLATE

90201-080L8-00

$4.41

11

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

12

WASHER, PLATE

90201-12790-00

$9.49

13

COCK, DRAIN

8DF-12478-00-00

Unavailable

14

O-RING (646)

93210-19123-00

Unavailable

15

BOLT

90109-063E8-00

Unavailable

16

WASHER, SEAL (7G5)

90210-06006-00

Unavailable

17

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

18

GASKET, CYLINDER HEAD 1

8EK-11181-00-00

Unavailable

19

CYLINDER 1

8EK-11311-00-00

Unavailable

20

GASKET, CYLINDER

8EK-11351-00-00

Unavailable

21

PIN, DOWEL

99530-14016-00

Unavailable

22

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

23

BOLT, STUD (26H)

90116-10411-00

Unavailable

24

BOLT, STUD(1JK)

90116-10506-00

Unavailable

25

BOLT, STUD

90116-06031-00

Unavailable

26

PIN, DOWEL (278)

93604-08071-00

Unavailable

27

VALVE 1

8EK-1131A-00-00

Unavailable

28

HOLDER 1

8EK-1131E-00-00

Unavailable

29

GASKET

8DF-11354-03-00

Unavailable

30

HOLDER 2

8DF-1131F-01-00

Unavailable

31

OIL SEAL

93109-15074-00

Unavailable

32

SEAT, SPRING

8DF-11317-01-00

Unavailable

33

SPRING, COMPRESSION

90501-120L7-00

Unavailable

34

GASKET

8DF-11397-10-00

Unavailable

35

HOLDER 3

8DF-1131U-01-00

Unavailable

36

WASHER, PLATE

90201-092U3-00

Unavailable

37

CIRCLIP(53L)

99001-06600-00

Unavailable

38

O-RING (1J7)

93210-09350-00

Unavailable

39

BOLT, SOCKET

91317-05016-00

Unavailable

40

CABLE, PULLEY 1

8EK-1133E-00-00

Unavailable

41

CABLE, PULLEY 2

8EK-1133F-00-00

Unavailable

42

CABLE, PULLEY 3

8EK-1133G-00-00

Unavailable

43

O-RING (26H)

93210-06632-00

Unavailable

44

CLAMP

90464-06253-00

Unavailable

45

PIPE 8

8EK-1248A-00-00

Unavailable

46

CLIP(3BM)

90467-10135-00

Unavailable
