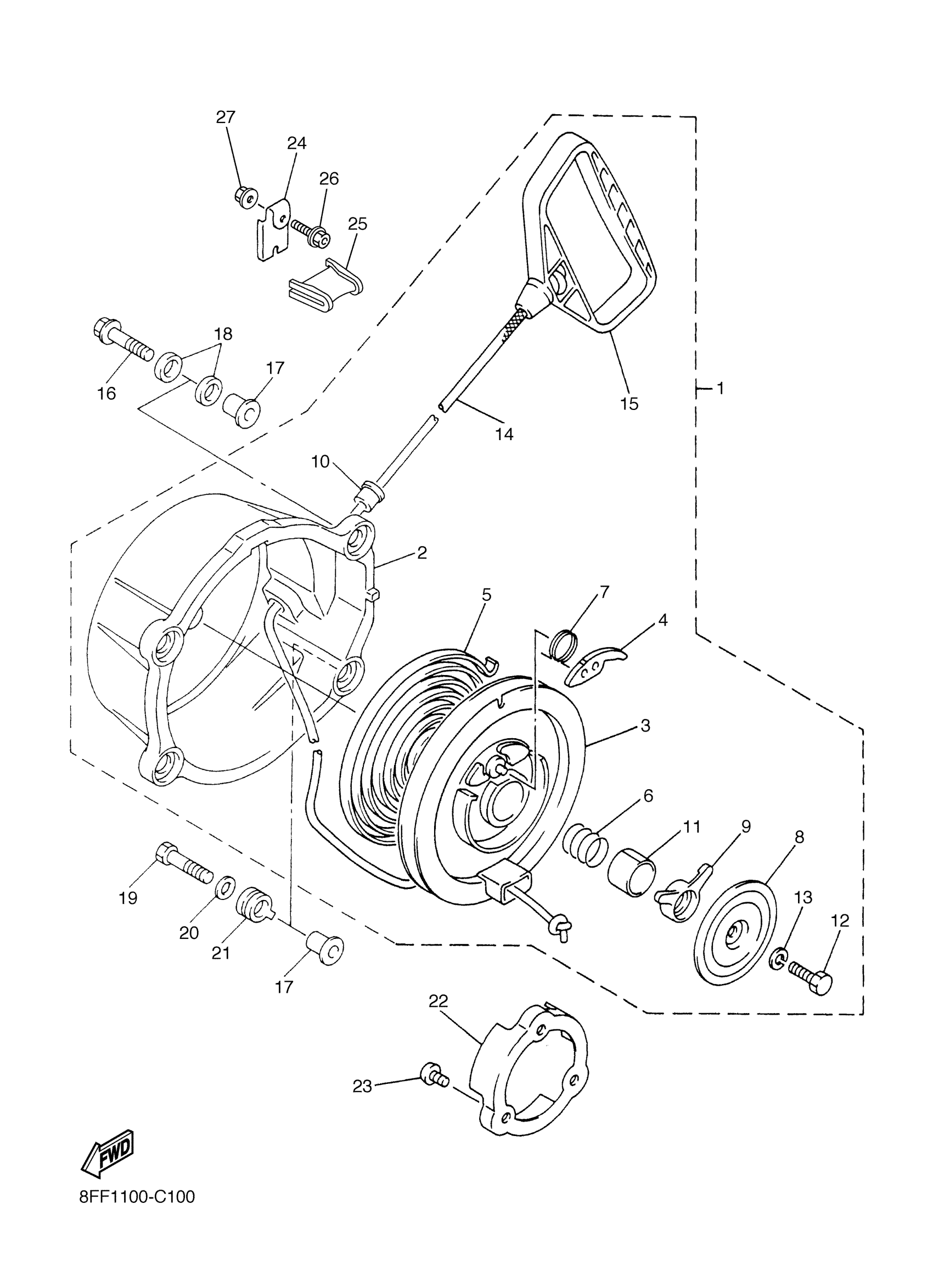

Yamaha SXV70ML (SX VIPER MOUNTAIN) 8EN7 2006 STARTER Diagram

#

Description

Price

1

STARTER ASSY

8EK-15710-00-00

Unavailable

2

CASE, STARTER

8EK-15711-00-00

Unavailable

3

DRUM, SHEAVE

8DF-15714-01-00

Unavailable

4

PAWL, DRIVE

8EK-15741-00-00

Unavailable

5

. SPRING, STARTER

8DF-15713-00-00

Unavailable

6

SPRING, FRICTION

8DF-15715-00-00

Unavailable

7

. SPRING

8CH-15767-00-00

Unavailable

8

. PLATE, DRIVE

8DF-15716-00-00

Unavailable

9

. GUIDE, CAM

8DF-15735-00-00

Unavailable

10

GUIDE, ROPE

8F3-15758-00-00

$20.99

11

. BUSH

8DF-15753-00-00

Unavailable

12

. BOLT

8DF-15768-00-00

Unavailable

13

WASHER(JN5)

92907-08100-00

$8.49

14

WIRE, STARTER (BRAIDED)

8CH-15751-00-00

$29.99

15

HANDLE, STARTER

8F3-15755-00-00

$29.99

16

BOLT, WITH WASHER

90119-08240-00

Unavailable

17

COLLAR

90387-08071-00

Unavailable

18

BUSH (8M6)

90385-12036-00

Unavailable

19

BOLT

97017-08035-00

Unavailable

20

WASHER(6TA)

92907-08600-00

Unavailable

21

BUSH

90386-12001-00

Unavailable

22

PULLEY, STARTER

8DF-15723-00-00

Unavailable

23

BOLT, BUTTON HEAD

92017-08012-00

Unavailable

24

GUIDE, ROPE

8DF-15758-10-00

Unavailable

25

HOLDER

8FF-1546C-00-00

Unavailable

26

BOLT, FLANGE

95817-06014-00

Unavailable

27

NUT, FLANGE(4MV)

95707-06500-00

Unavailable
