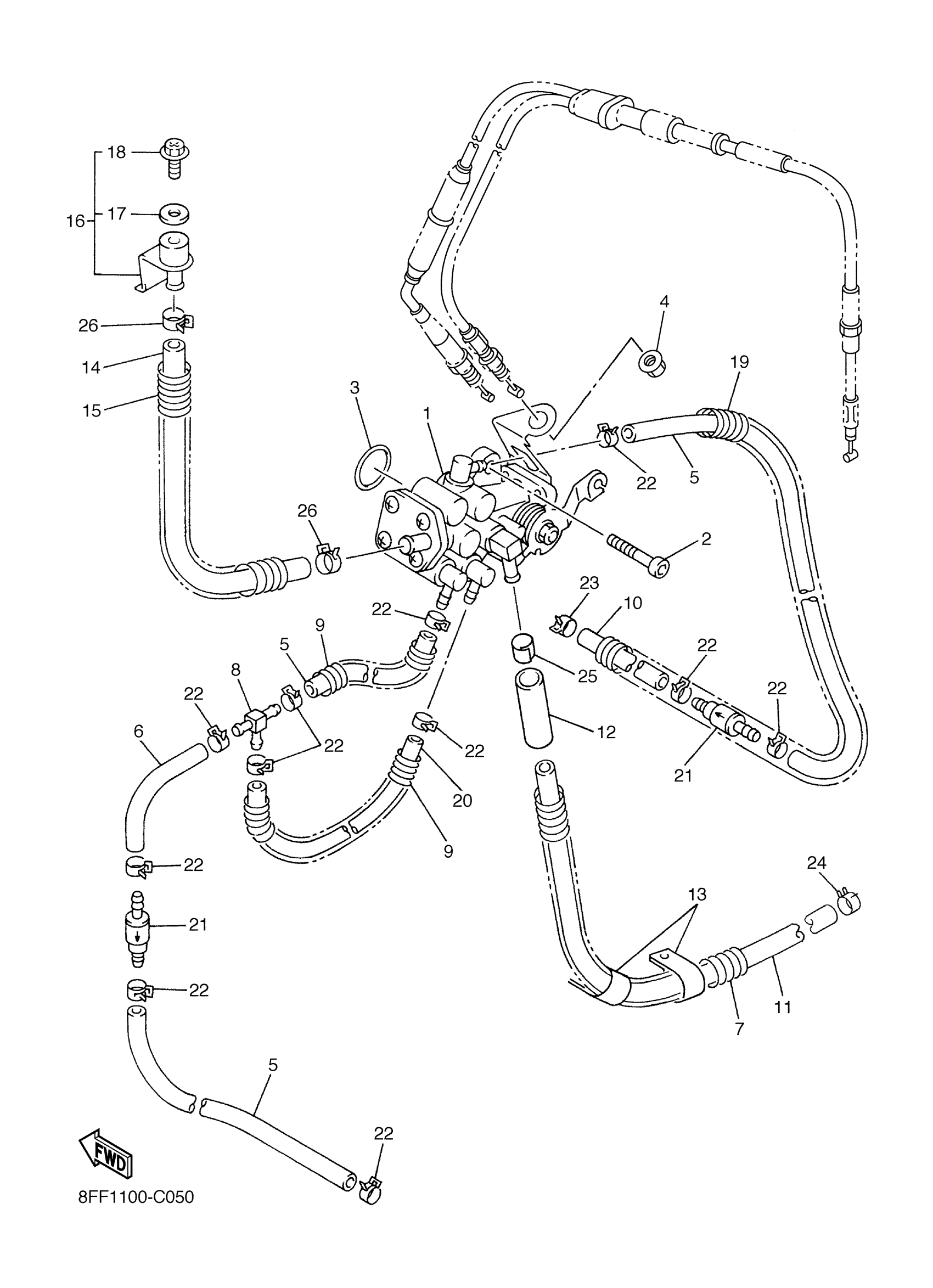

Yamaha SXV70ML (SX VIPER MOUNTAIN) 8EN7 2006 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
8DN-13100-00-00
Unavailable
2
BOLT,SOCKET
91317-05014-00
$8.49
3
O-RING(3SB)
93210-20712-00
$4.29
4
NUT, NYLON
95717-08300-00
$2.70
5
TUBE, FLEXIBLE VINYL(8AV)
91A30-03039-00
$10.49
6
TUBE, FLEXIBLE VINYL(8AV)
91A30-03039-00
$10.49
7
SPRING, COMPRESSION
90501-080A0-00
Unavailable
8
. JOINT
8H0-24379-00-00
Unavailable
9
SPRING, COMPRESSION
90501-06028-00
Unavailable
10
TUBE, FLEXIBLE VINYL(8AV)
91A30-03039-00
$10.49
11
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
$18.99
12
HOSE
90445-136E2-00
Unavailable
13
CLAMP
90462-08237-00
Unavailable
14
HOSE
91A30-07036-00
Unavailable
15
SPRING, COMPRESSION(1YU)
90501-061E8-00
$12.49
16
BOLT, BREATHER
8DF-13185-00-00
Unavailable
17
. GASKET, BREATHER BOLT
8DF-13187-00-00
Unavailable
18
BOLT 1
8DF-13573-00-00
Unavailable
19
SPRING, COMPRESSION(3JK)
90501-101J5-00
Unavailable
20
TUBE, FLEXIBLE VINYL(8AV)
91A30-03039-00
$10.49
21
CHECK VALVE
8CH-1316A-00-00
Unavailable
22
CLIP (2A6)
90468-02025-00
Unavailable
23
CLIP(42X)
90467-07093-00
Unavailable
24
CLIP (8A1)
90467-09026-00
Unavailable
25
CLIP (2A6)
90468-02078-00
Unavailable
26
CLIP (7K7)
90467-11044-00
Unavailable
