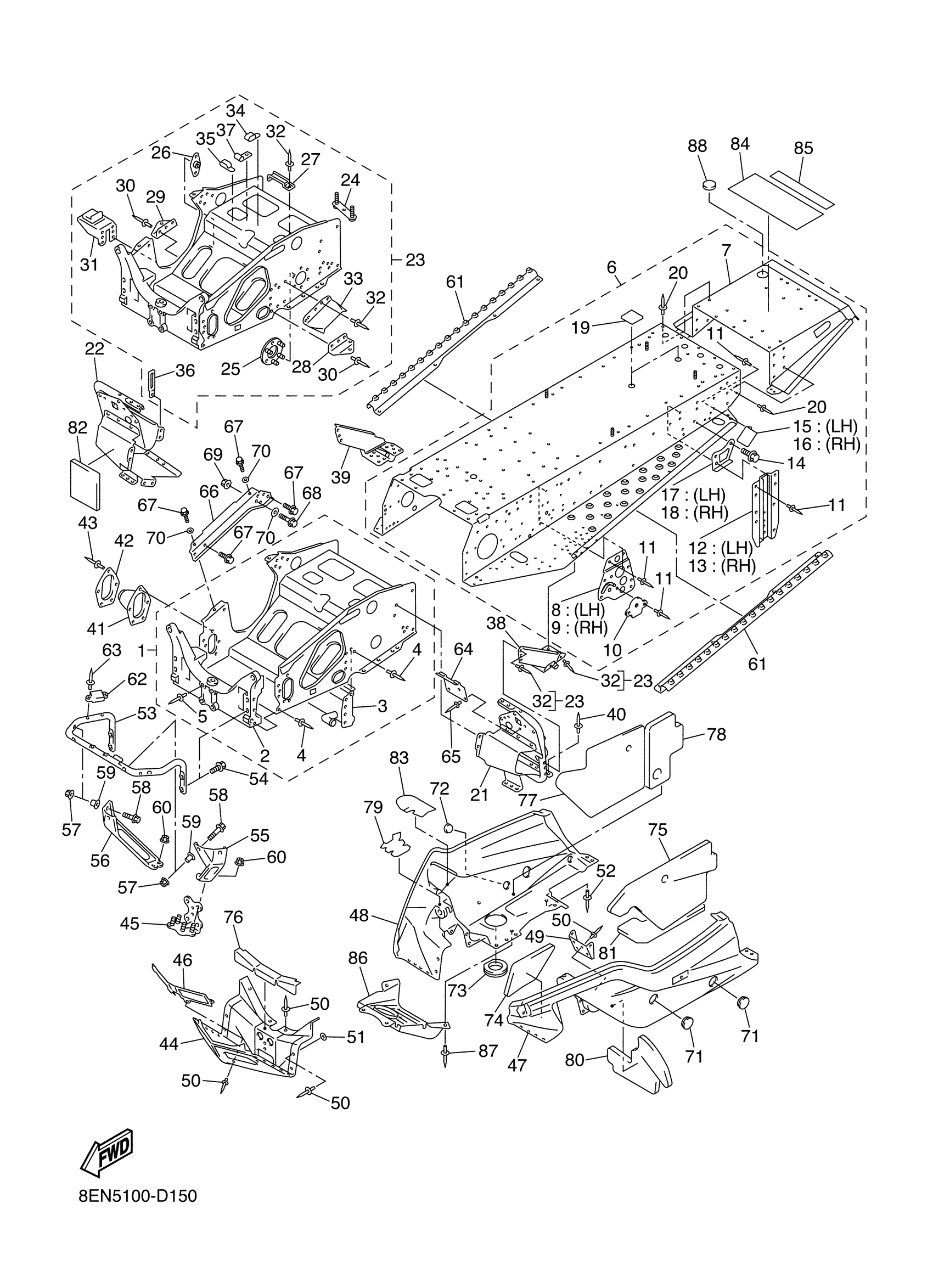

Yamaha SXV70ML (SX VIPER MOUNTAIN) 8EN7 2006 FRAME Diagram
#
1
FRONT FRAME COMP.
8EK-21940-18-00
Unavailable
2
. BULKHEAD
8EK-2191A-00-00
Unavailable
3
. HEAT EXCHANGER ASSY
8EK-12440-10-00
Unavailable
4
RIVET, BLIND
90267-48016-00
$10.49
5
RIVET, BLIND (8J5)
90267-48057-00
$8.49
6
REAR FRAME COMP.
8EN-21950-A9-00
Unavailable
7
. PANEL, SUB FRAME 5
8EN-21916-00-00
Unavailable
8
. REINF, PANEL FRAME 1
8EN-21991-A0-00
Unavailable
9
. REINF, PANEL FRAME 2
8EN-21992-A0-00
Unavailable
10
. BRACKET, MAIN TRACK 2
8EN-21953-00-00
Unavailable
11
RIVET, BLIND
90267-47195-00
$3.88
12
BRACKET, RR.TRACK SUSPENTION 1
8EN-21944-00-00
Unavailable
13
BRACKET, RR.TRACK SUSPENTION 2
8EN-21954-00-00
Unavailable
14
BOLT, FLANGE
95817-06016-00
$2.75
15
BRACKET, 6
8EN-2197M-00-00
Unavailable
16
BRACKET 7
8EN-2197N-00-00
Unavailable
17
. PATCH 8
8EN-21988-00-00
Unavailable
18
. PATCH 9
8EN-21989-00-00
Unavailable
19
COVER 3
8CR-2198J-00-00
Unavailable
20
RIVET, BLIND
90267-48010-00
Unavailable
21
FOOTREST COMP. 1
8EK-21960-09-00
Unavailable
22
FOOTREST COMP. 2
8EK-21970-09-00
Unavailable
23
FRAME CONNECTION KIT
8EN-W2195-01-00
Unavailable
24
BRACKET 3
8CR-2196F-00-00
Unavailable
25
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
26
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
27
CLAMP, FUEL PIPE
8DN-21977-00-00
Unavailable
28
PANEL, SUB FRAME 6
8EK-21917-00-00
Unavailable
29
PANEL, SUB FRAME 7
8EK-21918-00-00
Unavailable
30
RIVET, BLIND
90267-48016-00
$10.49
31
STAY, MUFFER
8EK-2194J-00-00
Unavailable
32
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
33
COVER 2
8CR-2198G-01-00
Unavailable
34
CLAMP(83R)
90461-08113-00
Unavailable
35
CLAMP(8CR)
90461-06142-00
Unavailable
36
CLAMP
90462-10236-00
Unavailable
37
CLAMP
90461-10148-00
Unavailable
38
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
39
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
40
RIVET
90269-07080-00
Unavailable
41
COVER 1
8DN-2198F-00-00
Unavailable
42
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
43
RIVET, BLIND
90267-47197-00
Unavailable
44
PANEL, SUB FRAME 1
8EK-21912-00-00
Unavailable
45
PLATE, BACK UP
8EK-23788-00-00
Unavailable
46
STAY 4
8CR-77128-00-00
Unavailable
47
FRAME UNDER 1
8EK-2196A-01-00
Unavailable
48
FRAME, UNDER 2
8EN-2196E-00-00
Unavailable
49
BRACKET, GUARD FITTING
8EK-21972-00-00
Unavailable
50
RIVET, BLIND
90267-48018-00
Unavailable
51
WASHER PLATE 829771780000
90201-05033-00
Unavailable
52
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
53
BUMPER, FRONT 2
8EK-77512-00-00
Unavailable
54
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
55
BRACKET, FRONT
8EK-21949-00-00
Unavailable
56
BRACKET, FRONT BUMPER
8EK-21959-00-00
Unavailable
57
NUT, SELF-LOCKING
90185-08169-00
Unavailable
58
BOLT, FLANGE
95817-08035-00
Unavailable
59
COLLAR
90387-08015-00
Unavailable
60
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
61
PLATE, ANTI-SKID
8ED-2192A-30-00
Unavailable
62
PROTECTOR, MUFFLER
8DJ-14728-00-00
Unavailable
63
RIVET, BLIND
90267-48018-00
Unavailable
64
HOOK
8CR-21973-00-00
Unavailable
65
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
66
REINEFORCEMENT, FRAME REAR 1
8EK-21921-00-00
Unavailable
67
BOLT, FLANGE
95817-10020-00
Unavailable
68
BOLT,FLANGE
95817-10065-00
Unavailable
69
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
70
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
71
PLUG (8H8)
90338-44093-00
Unavailable
72
PLUG(8CJ)
90338-30256-00
Unavailable
73
SPACER
8DF-21998-10-00
Unavailable
74
LINING, SHROUD 1
8EK-77261-00-00
Unavailable
75
LINING, SHROUD 2
8EK-77262-00-00
Unavailable
76
LINING, SHROUD 3
8EK-77263-00-00
Unavailable
77
LINING, SHROUD 4
8EK-77264-00-00
Unavailable
78
LINING, SHROUD 5
8EK-77265-00-00
Unavailable
79
LINING, SHROUD 6
8EK-77266-10-00
Unavailable
80
LINING, SHROUD 7
8EK-77267-00-00
Unavailable
81
LINING,SHROUD 8
8EK-77268-00-00
Unavailable
82
LINING,SHROUD 9
8EK-77269-00-00
Unavailable
83
LINING, SHROUD 7
8EN-77267-00-00
Unavailable
84
EMBLEM 3
8EN-77143-09-00
Unavailable
85
LABEL, WARNING 2
88X-77762-10-00
Unavailable
86
PROTECTOR, MUFFLER
8EN-2194H-00-00
Unavailable
87
RIVET, BLIND
90267-49004-00
Unavailable
88
PLUG
90338-44019-00
Unavailable
