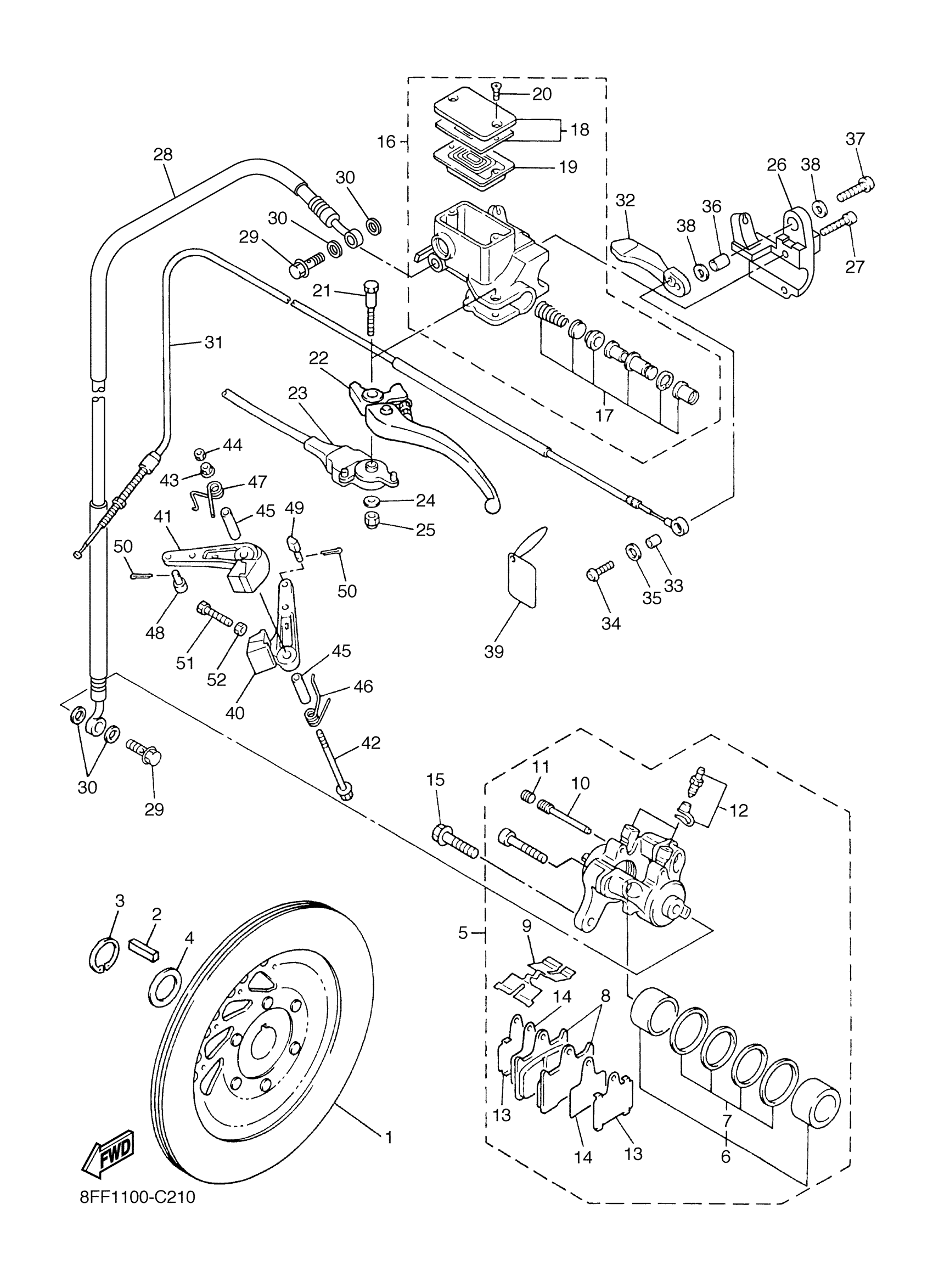

Yamaha SXV70MK (SX VIPER MOUNTAIN) 8EN5 2005 BRAKE Diagram

#

Description
Price

1

DISK BRAKE ASSY

8DN-2581T-00-00

Unavailable

2

KEY, SLIDING(88K)

90281-07004-00

$13.99

3

CIRCLIP(8CJ)

93410-27080-00

$2.55

4

WASHER, PLATE

90201-270U5-00

Unavailable

5

CALIPER ASSY (LEFT)

8DF-2580T-02-00

Unavailable

6

PISTON ASSY, CALIPER

8CR-W0057-00-00

Unavailable

7

CALIPER SEAL KIT

8CR-W0047-00-00

$21.99

8

BRAKE PAD KIT 2

8DF-W0046-01-00

$60.99

9

SUPPORT, PAD

8CR-25919-00-00

Unavailable

10

PIN, PAD

8CR-25924-00-00

$14.49

11

BOLT

8CR-25926-00-00

Unavailable

12

BLEED SCREW KIT

8CR-W0048-00-00

$13.49

13

. RETAINER

8DF-2582F-00-00

Unavailable

14

. SHIM, CALIPER

8DF-25828-00-00

Unavailable

15

BOLT, WASHER BASED(1AR)

90105-10634-00

$10.49

16

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

Unavailable

17

CYLINDER KIT, MASTER

8CR-W0041-00-00

Unavailable

18

RESERVOIR CAP SET

8CR-W2585-00-00

Unavailable

19

DIAPHRAGM, RESERVOIR

55U-25854-00-00

Unavailable

20

SCREW, FLAT

98707-04012-00

Unavailable

21

BOLT, LEVER

8CR-2589F-00-00

Unavailable

22

LEVER 1

8CR-83912-00-00

Unavailable

22

LEVER 1

8DN-83912-00-00

Unavailable

23

STOP SWITCH ASSY

8CR-82530-01-00

Unavailable

24

WASHER, PLAIN

8CR-8398X-00-00

Unavailable

25

NUT, NYLON

95707-05300-00

Unavailable

26

BRACKET, MASTER CYLINDER

8FA-25867-00-00

Unavailable

27

BOLT,SOCKET

91317-06025-00

Unavailable

28

HOSE, BRAKE 1

8EN-25872-10-00

Unavailable

29

BOLT, UNION(3GM)

90401-10159-00

Unavailable

30

WASHER, PLATE(481)

90201-10118-00

Unavailable

31

CABLE, BRAKE

8EN-26351-00-00

Unavailable

32

LEVER 2

8CR-83922-00-00

Unavailable

33

COLLAR

90387-06043-00

Unavailable

34

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

35

. WASHER, PLATE

90201-06050-00

Unavailable

36

COLLAR

90387-081M9-00

Unavailable

37

BOLT, BUTTON

92017-08020-00

Unavailable

38

WASHER PLATE 141181390000

90201-08085-00

Unavailable

39

TAG, CAUTION

8CR-23496-00-00

Unavailable

40

CALIPER BODY COMP.1

8CR-25730-00-00

Unavailable

41

CALIPER BODY COMP. 2

8CR-25740-00-00

Unavailable

42

BOLT, FLANGE

90105-08094-00

Unavailable

43

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

44

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

45

COLLAR(82M)

90387-084R5-00

Unavailable

46

SPRING, TORSION(8CJ)

90508-291B2-00

Unavailable

47

SPRING, TORSION

90508-291B1-00

Unavailable

48

PIN

90249-06009-00

Unavailable

49

PIN (810)

90249-06012-00

Unavailable

50

PIN, COTTER (648)

91490-20015-00

Unavailable

51

BOLT, HEXAGON

97017-06025-00

Unavailable

52

NUT(JN5)

95317-06700-00

Unavailable
