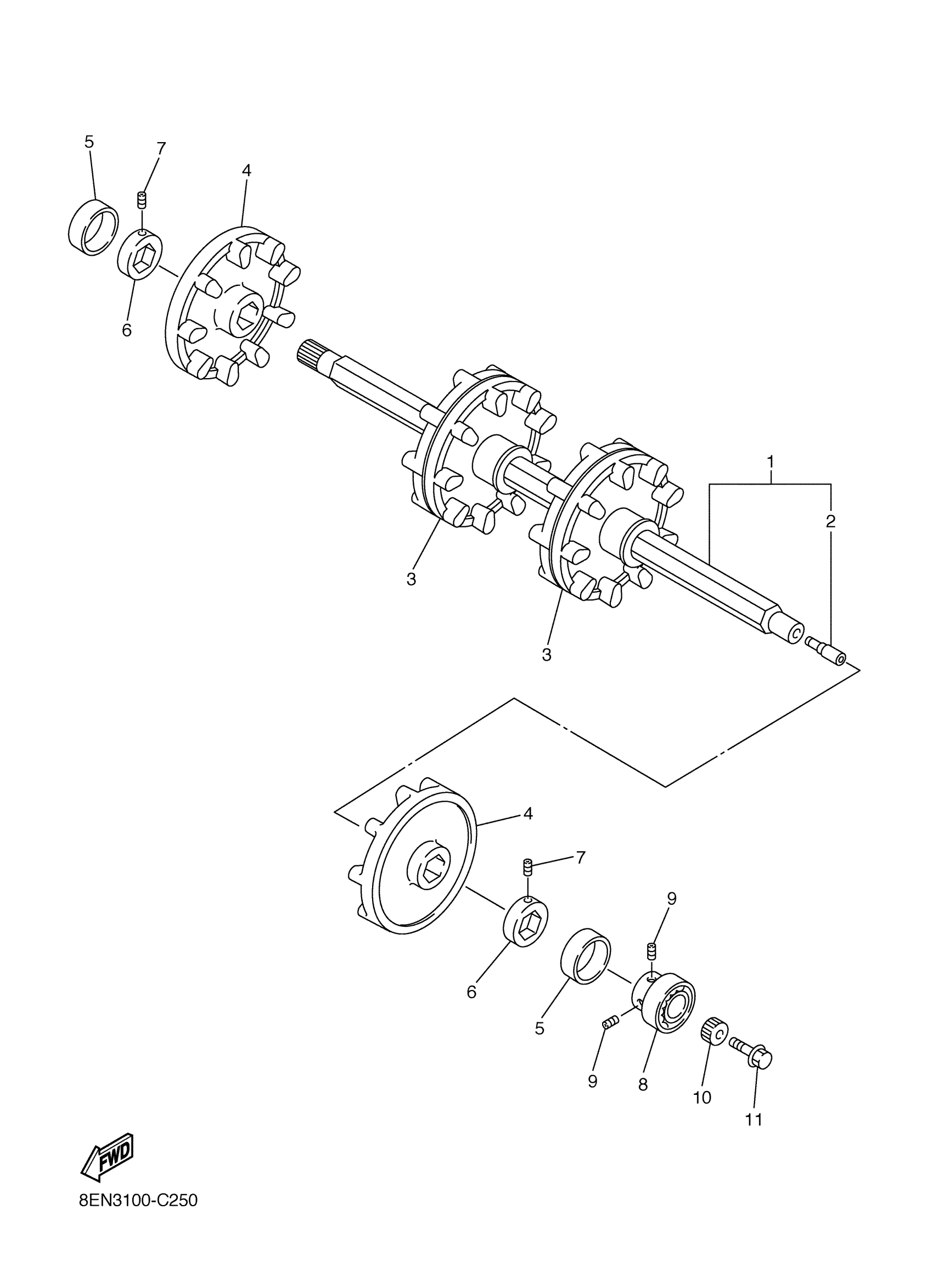

Yamaha SXV70MJ (SX VIPER MOUNTAIN) 8EN3 2004 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8EK-47511-00-00

Unavailable

2

CONNECTOR

8K4-47577-00-00

$15.47

3

WHEEL, SPROCKET 1

8BF-47531-00-00

Unavailable

4

WHEEL, SPROCKET 2

8DP-47532-00-00

$71.48

5

COLLAR(83R)

90387-514Y2-00

$11.06

6

COLLAR

8BW-47526-00-00

$51.80

7

BOLT, SET (8K2)

90113-06039-00

$6.51

8

BEARING(8CJ)

93306-20589-00

$48.16

9

BOLT, SET

90113-06006-00

$3.34

10

JOINT

8EK-47715-00-00

$28.34

11

BOLT, WASHER BASED

90105-105A0-00

$8.61
