- SXV70MJ (SX VIPER MOUNTAIN) 8EN3 2004
RADIATOR HOSE

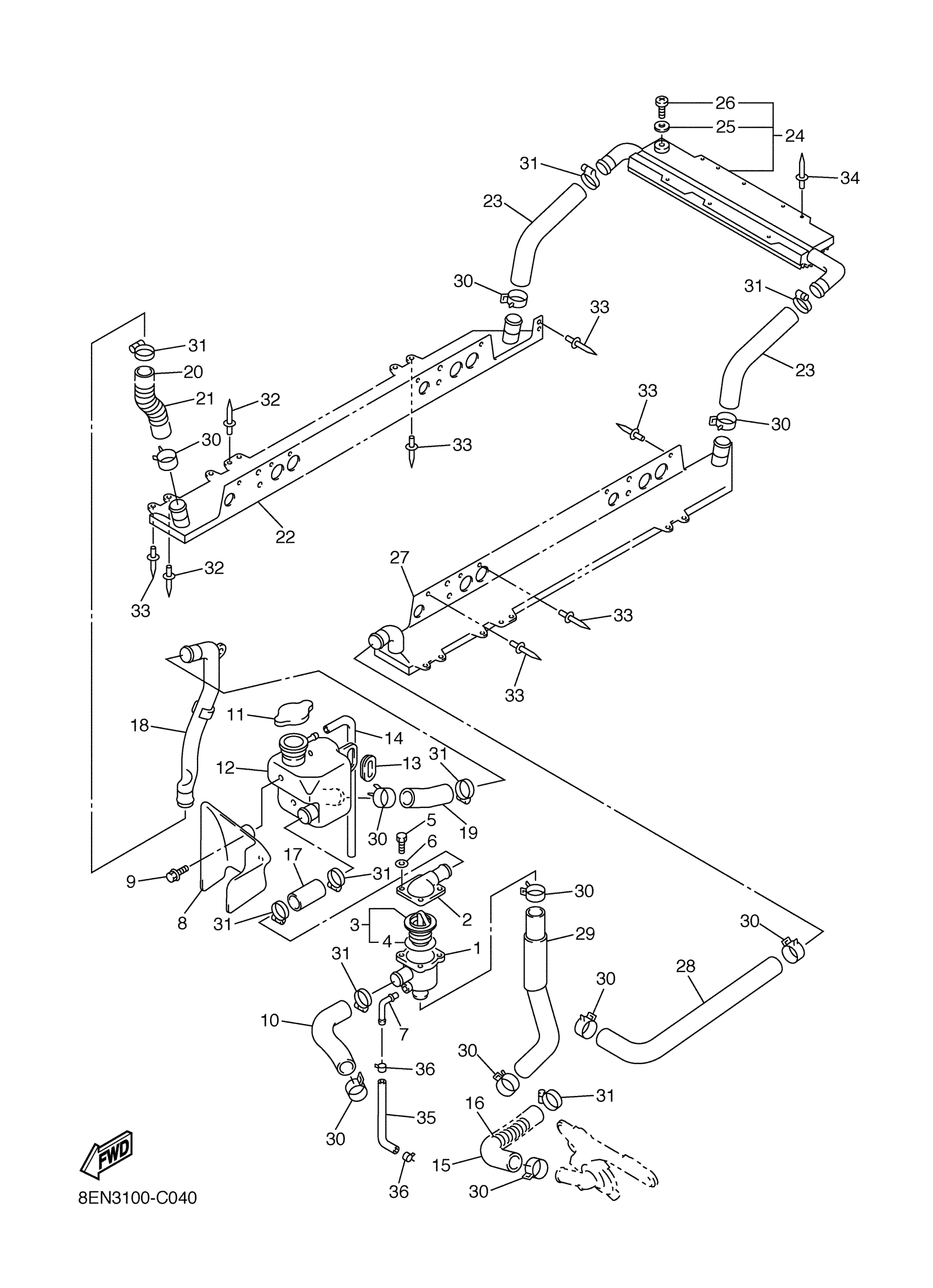

Yamaha SXV70MJ (SX VIPER MOUNTAIN) 8EN3 2004 RADIATOR HOSE Diagram
#
1
HOUSING, THERMOSTAT
8EK-12417-00-00
Unavailable
2
COVER, THERMOSTAT
8EK-12413-00-00
Unavailable
3
THERMOSTAT ASSY
8EK-12410-00-00
Unavailable
4
SEAL, THERMOSTAT
8EK-12412-00-00
$16.49
5
BOLT, HEXAGON
97017-06020-00
$4.06
6
WASHER(6TA)
92907-06600-00
$2.72
7
JOINT, HOSE 3
3FV-12584-00-00
Unavailable
8
DUCT
8EK-12661-00-00
Unavailable
9
BOLT, FLANGE
95817-06012-00
$1.43
10
PIPE 1
8EK-12481-00-00
Unavailable
11
CAP, RADIATOR
4FL-12462-00-00
$62.99
12
TANK, RESERVE
8EK-1249B-00-00
Unavailable
13
GROMMET
90480-01003-00
Unavailable
14
HOSE (L340)
90445-08684-00
$4.29
15
PIPE 2
8EK-12482-00-00
Unavailable
16
SPRING, COMPRESSION
90501-12002-00
Unavailable
17
PIPE 9
8EK-1248E-00-00
Unavailable
18
PIPE 3
8EK-12483-00-00
Unavailable
19
HOSE 2
8EK-1243E-00-00
Unavailable
20
HOSE,3
8DF-1243F-00-00
Unavailable
21
SPRING, COMPRESSION
90501-144L4-00
Unavailable
22
HEAT EXCHANGER
8EN-1240F-00-00
Unavailable
23
PIPE 4
8EN-12484-00-00
Unavailable
24
HEAT EXCHANGER ASSY 4
8EN-1241A-00-00
Unavailable
25
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
26
SCREW, PAN
98517-06008-00
Unavailable
27
HEAT EXCHANGER
8EN-1240E-00-00
Unavailable
28
PIPE 5
8DF-12485-00-00
Unavailable
29
PIPE 6
8EK-12476-00-00
Unavailable
30
CLIP (8M6)
90467-28046-00
Unavailable
31
HOSE CLAMP ASSY
90450-35001-00
Unavailable
32
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
33
RIVET, BLIND
90267-47195-00
Unavailable
34
RIVET, BLIND
90267-47195-00
Unavailable
35
PIPE 7
8EK-12477-01-00
Unavailable
36
CLIP(3BM)
90467-10135-00
Unavailable
