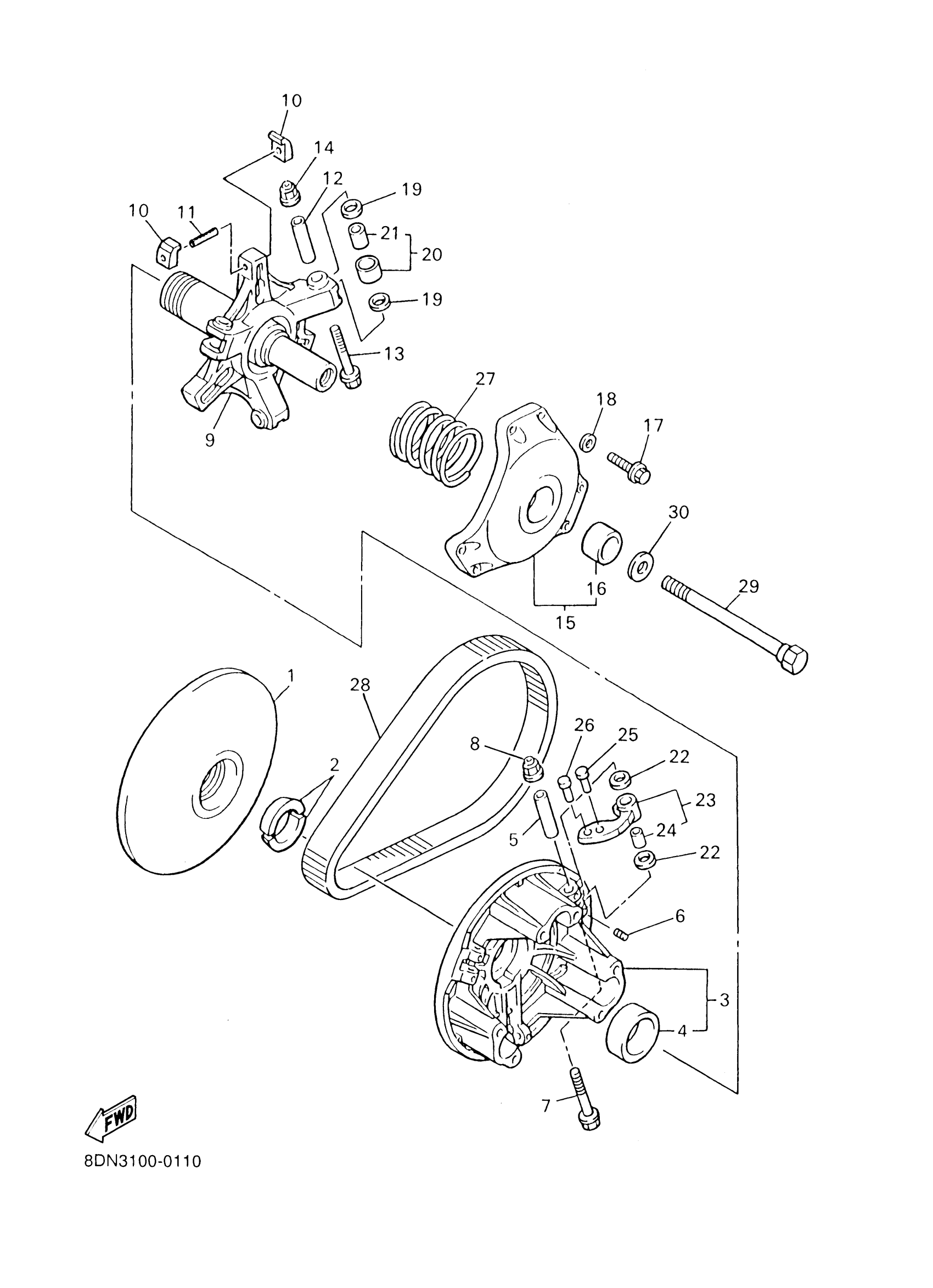

Yamaha SXV70MH (SX Viper Mountain) 8EN1 2003 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

$212.99

2

STOPPER

8V0-17639-00-00

$14.99

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

$437.99

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$60.99

5

COLLAR

90387-0514T-00

$16.99

6

BOLT, SET

90113-05041-00

$8.49

7

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

8

NUT, S/L FLANGE

95607-05200-00

$9.49

9

SPIDER COMP.

8CA-17640-12-00

Unavailable

10

SLIDER

8BW-17653-00-00

$16.49

11

PIN, SPRING (7F7)

91609-50032-00

$4.14

12

COLLAR

90387-0514U-00

$20.99

13

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

14

NUT, S/L FLANGE

95607-05200-00

$9.49

15

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$186.99

16

BUSH, SOLID(8CP)

90380-28237-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable

19

WASHER, PLATE(8BV)

90202-09227-00

Unavailable

20

ROLLER, COMP

8CR-17624-00-00

Unavailable

20

ROLLER, COMP

8CR-17624-20-00

Unavailable

21

. BUSH, SOLID

90380-09245-00

Unavailable

22

WASHER, PLATE(88R)

90202-08204-00

Unavailable

23

WEIGHT COMP

8DN-17605-10-00

Unavailable

23

WEIGHT COMP

8EK-17605-00-00

Unavailable

24

. BUSH, SOLID

90380-08244-00

Unavailable

25

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

Unavailable

25

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

26

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

Unavailable

27

SPRING, COMPRESSION

90501-603L2-00

Unavailable

27

SPRING, COMPRESSION

90501-603L3-00

Unavailable

28

V-BELT

8DN-17641-01-00

Unavailable

29

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

30

WASHER(JN5)

92907-16100-00

Unavailable
