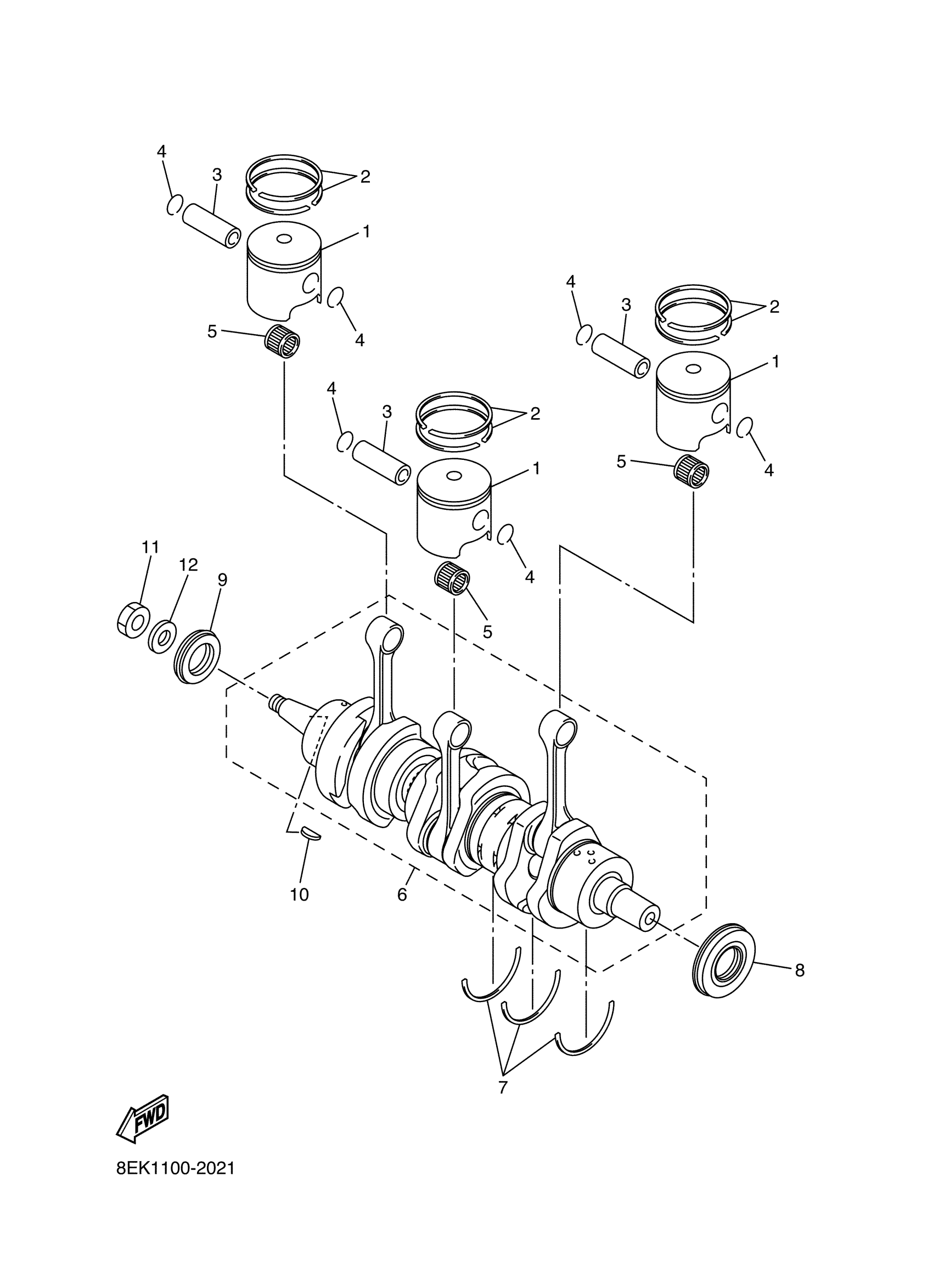

Yamaha SXV70MH (SX Viper Mountain) 8EN1 2003 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8EK-11631-00-A0

$231.99

2

PISTON RING SET (STD)

8DN-11603-00-00

$56.99

3

PIN, PISTON

8J0-11633-00-00

$37.99

4

CIRCLIP (8H0)

93450-21053-00

$3.85

5

BEARING

93310-32009-00

$55.99

6

CRANKSHAFT ASSY

8EK-11400-00-00

$1,908.99

7

CIRCLIP (1J7)

93440-72049-00

Unavailable

8

OIL SEAL

93103-34181-00

$50.99

9

OIL SEAL(82M)

93103-32153-00

$30.99

10

KEY, WOODRUFF (8R9)

90280-05033-00

$10.49

11

NUT

90170-16425-00

$9.49

12

WASHER(6TD)

92907-16600-00

Unavailable
