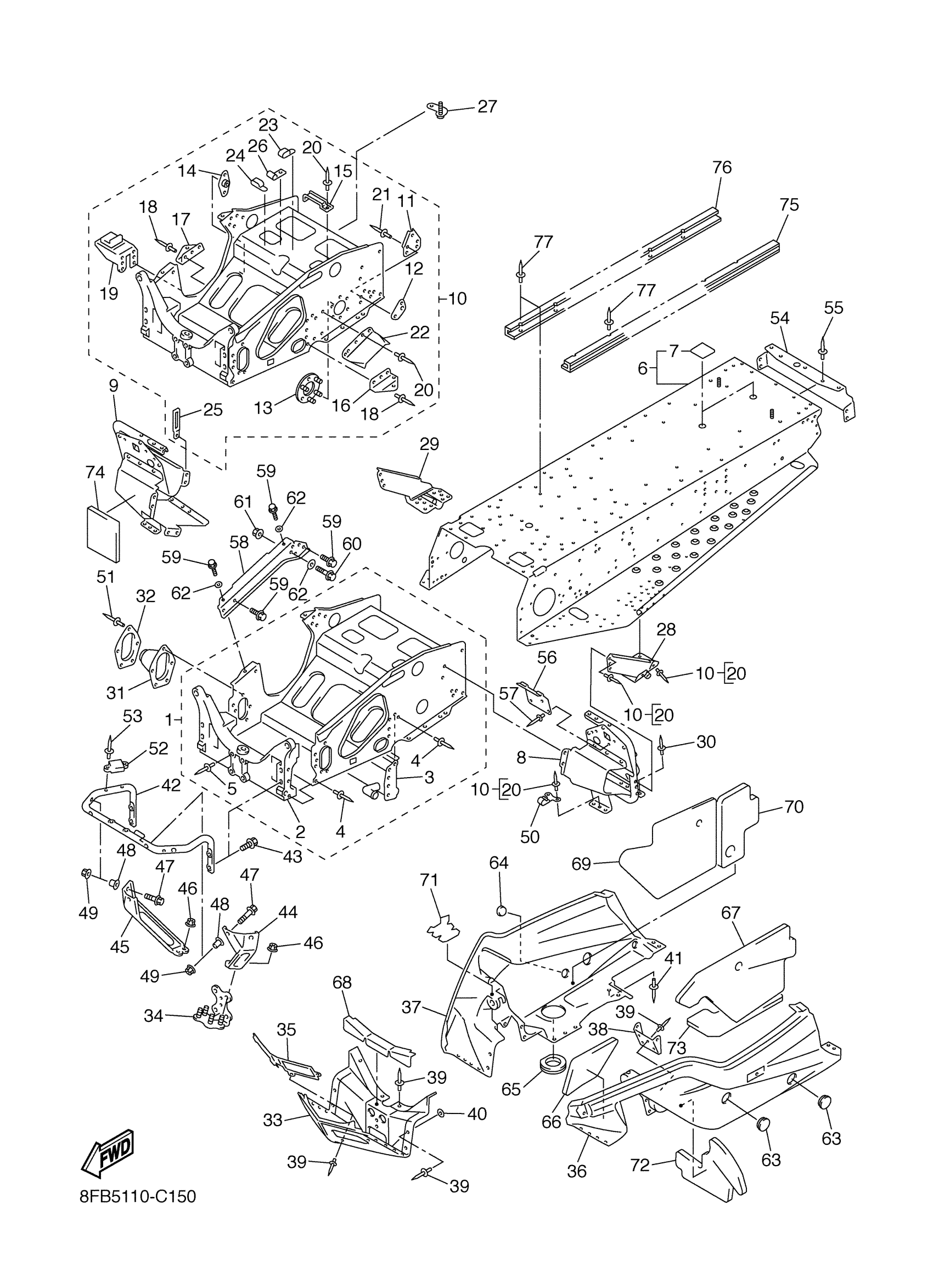

Yamaha SXV70ERJ (SX VIPER ER) 8FB5 2004 FRAME Diagram
#
1
FRONT FRAME COMP.
8EK-21940-28-00
Unavailable
2
. BULKHEAD
8EK-2191A-00-00
Unavailable
3
. HEAT EXCHANGER ASSY
8EK-12440-20-00
Unavailable
4
RIVET, BLIND
90267-48016-00
$10.49
5
RIVET, BLIND (8J5)
90267-48057-00
$8.49
6
REAR FRAME COMP.
8EK-21950-07-00
Unavailable
7
COVER 3
8CR-2198J-00-00
Unavailable
8
FOOTREST COMP. 1
8EK-21960-09-00
Unavailable
9
FOOTREST COMP. 2
8EK-21970-09-00
Unavailable
10
FRAME CONNECTION KIT
8EK-W2195-01-00
Unavailable
11
BRACKET, MAIN TRACK 1
8CR-21943-01-00
$6.99
12
BRACKET, MAIN TRACK 2
8CR-21953-00-00
$2.24
13
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
$19.99
14
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
15
CLAMP, FUEL PIPE
8DN-21977-00-00
Unavailable
16
PANEL, SUB FRAME 6
8EK-21917-00-00
Unavailable
17
PANEL, SUB FRAME 7
8EK-21918-00-00
Unavailable
18
RIVET, BLIND
90267-48016-00
$10.49
19
STAY, MUFFER
8EK-2194J-00-00
Unavailable
20
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
21
RIVET, BLIND
90267-47197-00
Unavailable
22
COVER 2
8CR-2198G-01-00
Unavailable
23
CLAMP(83R)
90461-08113-00
Unavailable
24
CLAMP(8CR)
90461-06142-00
Unavailable
25
CLAMP
90462-10236-00
Unavailable
26
CLAMP
90461-10148-00
Unavailable
27
BRACKET 3
8EK-2196F-00-00
Unavailable
28
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
29
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
30
RIVET
90269-07080-00
Unavailable
31
COVER 1
8DN-2198F-00-00
Unavailable
32
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
33
PANEL, SUB FRAME 1
8EK-21912-00-00
Unavailable
34
PLATE, BACK UP
8EK-23788-00-00
Unavailable
35
STAY 4
8CR-77128-00-00
Unavailable
36
FRAME UNDER 1
8EK-2196A-01-00
Unavailable
37
FRAME, UNDER 2
8EK-2196E-01-00
Unavailable
38
BRACKET, GUARD FITTING
8EK-21972-00-00
Unavailable
39
RIVET, BLIND
90267-48018-00
Unavailable
40
WASHER PLATE 829771780000
90201-05033-00
Unavailable
41
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
42
BUMPER, FRONT 2
8EK-77512-00-00
Unavailable
43
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
44
BRACKET, FRONT
8EK-21949-00-00
Unavailable
45
BRACKET, FRONT BUMPER
8EK-21959-00-00
Unavailable
46
NUT, SELF-LOCKING
90185-08169-00
Unavailable
47
BOLT, FLANGE
95817-08035-00
Unavailable
48
COLLAR
90387-08015-00
Unavailable
49
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
50
CLAMP, WIREHARNESS
8EK-21999-00-00
Unavailable
51
RIVET, BLIND
90267-47197-00
Unavailable
52
PROTECTOR, MUFFLER
8DJ-14728-00-00
Unavailable
53
RIVET, BLIND
90267-48018-00
Unavailable
54
REINEFORCEMENT, FRAME REAR 1
8EK-21923-01-00
Unavailable
55
RIVET, BLIND
90267-47195-00
Unavailable
56
HOOK
8CR-21973-00-00
Unavailable
57
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
58
REINEFORCEMENT, FRAME REAR 1
8EK-21921-00-00
Unavailable
59
BOLT, FLANGE
95817-10020-00
Unavailable
60
BOLT,FLANGE
95817-10065-00
Unavailable
61
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
62
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
63
PLUG (8H8)
90338-44093-00
Unavailable
64
PLUG(8CJ)
90338-30256-00
Unavailable
65
SPACER
8DF-21998-10-00
Unavailable
66
LINING, SHROUD 1
8EK-77261-00-00
Unavailable
67
LINING, SHROUD 2
8EK-77262-00-00
Unavailable
68
LINING, SHROUD 3
8EK-77263-00-00
Unavailable
69
LINING, SHROUD 4
8EK-77264-00-00
Unavailable
70
LINING, SHROUD 5
8EK-77265-00-00
Unavailable
71
LINING, SHROUD 6
8EK-77266-10-00
Unavailable
72
LINING, SHROUD 7
8EK-77267-00-00
Unavailable
73
LINING,SHROUD 8
8EK-77268-00-00
Unavailable
74
LINING,SHROUD 9
8EK-77269-00-00
Unavailable
75
PROTECTOR, FRAME A
8FE-2195A-00-00
Unavailable
76
PROTECTOR, FRAME B
8FE-2195B-00-00
Unavailable
77
RIVET, BLIND
90267-50004-00
Unavailable
