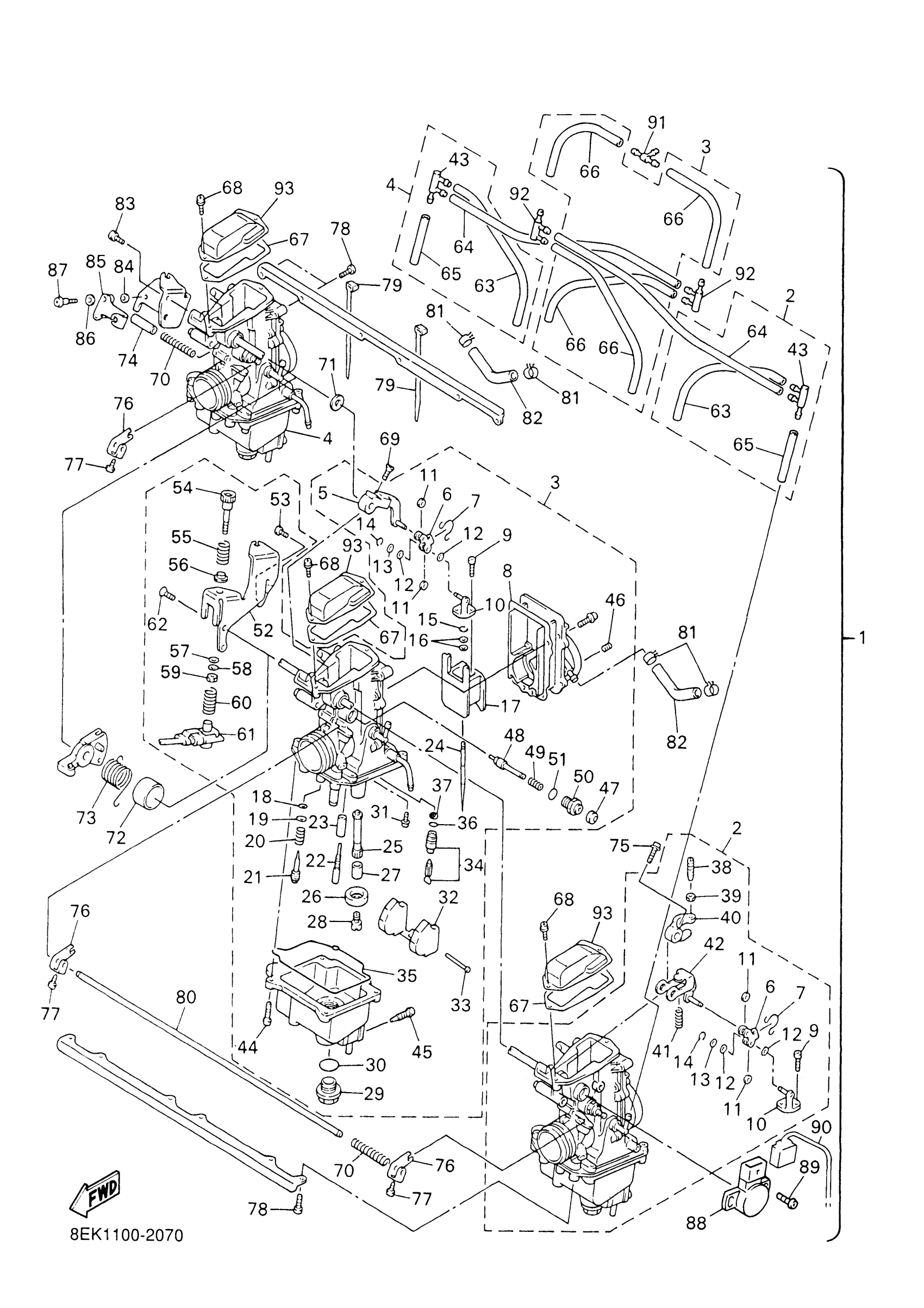

Yamaha SXV70ERH (SX VIPER ER) 8FB3 2003 CARBURETOR Diagram
#
1
CARBURETOR ASSY
8EK-14100-00-00
Unavailable
2
. CARBURETOR ASSY 1
8EK-14101-00-00
Unavailable
3
. CARBURETOR ASSY 2
8EK-14102-00-00
Unavailable
4
. CARBURETOR ASSY 3
8EK-14103-00-00
Unavailable
5
BRACKET 2
89A-14292-00-00
Unavailable
6
PLATE
89A-14243-00-00
Unavailable
7
CLIP
89A-14137-00-00
$3.33
8
GASKET
89A-14199-00-00
$31.99
9
. SCREW
8CC-14216-00-00
Unavailable
10
CONNECTOR
89A-14188-00-00
$34.99
11
RING
3MA-14918-00-00
Unavailable
12
GASKET
3GF-14126-00-00
$0.47
13
GASKET
620-14198-00-00
$2.65
14
CLIP
3MA-14937-00-00
Unavailable
15
CLIP
3MA-14159-00-00
$7.99
16
WASHER
8AB-14227-00-00
Unavailable
17
VALVE, THROTTLE 1
8EK-14112-15-00
Unavailable
18
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
19
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
20
SPRING
5K7-14134-00-00
Unavailable
21
SCREW, ADJ.
89A-14565-00-00
Unavailable
22
JET, PILOT (# 45)
3H1-14142-45-00
Unavailable
22
JET, PILOT (# 47.5)
3H1-14142-47-00
Unavailable
22
JET, PILOT (# 50)
3H1-14142-50-00
Unavailable
22
JET, PILOT (# 52.5)
3H1-14142-52-00
Unavailable
22
JET, PILOT (# 55)
3H1-14142-55-00
Unavailable
23
PIPE
89A-14996-00-00
Unavailable
24
.. NEEDLE
1T1-14116-A4-00
Unavailable
25
.. NOZZLE, MAIN
89A-14141-48-00
Unavailable
26
WASHER, MAIN JET
1LX-14153-00-00
Unavailable
27
RING
89A-14194-00-00
Unavailable
28
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
28
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
28
JET, MAIN (#150)
3G2-14231-30-A0
Unavailable
28
JET, MAIN (#155)
3G2-14231-31-00
Unavailable
28
JET, MAIN (#160)
3G2-14231-32-00
Unavailable
28
JET,MAIN #147.5
3G2-1423A-80-A0
Unavailable
28
JET,MAIN #152.5
3G2-1423A-81-00
Unavailable
28
JET,MAIN #157.5
3G2-1423A-82-00
Unavailable
28
JET, MAIN (#138.8)
3G2-1423E-55-00
Unavailable
28
JET, MAIN (#141.3)
3G2-1423E-56-00
Unavailable
28
JET MAIN (#143.8)
3G2-1423E-57-00
Unavailable
28
JET, MAIN (#146.3)
3G2-1423E-58-00
Unavailable
28
JET, MAIN #148.8
3G2-1423E-59-00
Unavailable
28
JET, MAIN (#151.3)
3G2-1423E-60-00
Unavailable
28
JET, MAIN (#153.8)
3G2-1423E-61-00
Unavailable
28
JET, MAIN (#156.3)
3G2-1423E-62-00
Unavailable
28
. JET, MAIN (#1588)
3G2-1423E-63-00
Unavailable
29
PLUG, SCREW
500-14115-00-00
Unavailable
30
O-RING (541)
558-14147-00-00
Unavailable
31
SCREW
2LN-14565-00-00
Unavailable
32
.. FLOAT
8EK-14185-00-00
Unavailable
33
PIN, FLOAT
537-14186-00-00
Unavailable
34
NEEDLE VALVE ASSY
1AE-14190-13-00
Unavailable
35
O-RING
89A-14147-00-00
Unavailable
36
O-RING
8F2-14147-00-00
Unavailable
37
NET, FILTER
1J7-14994-00-00
Unavailable
38
SCREW
89A-14216-00-00
Unavailable
39
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
40
. LEVER
89A-14276-00-00
Unavailable
41
SPRING
89A-14286-00-00
Unavailable
42
. LEVER, STARTER
89A-14905-00-00
Unavailable
43
. NIPPLE
8EK-14251-00-00
Unavailable
44
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
45
PLUG, DRAIN
12R-14191-00-00
Unavailable
46
JET, AIR (#1.0)
239-14172-10-00
Unavailable
47
. COVER, PLUNGER CAP
302-14173-00-00
Unavailable
48
.. PLUNGER, STARTER
8EK-14171-00-00
Unavailable
49
SPRING, PLUNGER
1AW-14135-00-00
Unavailable
50
. CAP, PLUNGER
1FN-14174-00-00
Unavailable
51
O-RING
1AE-14147-00-00
Unavailable
52
.. BRACKET
8CH-14995-00-00
Unavailable
53
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
54
SCREW, THROTTLE
8CC-14122-00-00
Unavailable
55
SPRING
8X0-14500-00-00
Unavailable
56
RING
8X0-14184-00-00
Unavailable
57
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
58
. WASHER
1UF-14952-00-00
Unavailable
59
NUT
89A-14594-00-00
Unavailable
60
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
61
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
62
SCREW,FLAT
98707-05008-00
Unavailable
63
.. PIPE 1
8EK-14348-00-00
Unavailable
64
.. PIPE
8EK-14349-00-00
Unavailable
65
. PIPE 1
8CH-14348-00-00
Unavailable
66
. PIPE
8F2-14197-00-00
Unavailable
67
GASKET
89A-14198-00-00
Unavailable
68
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
69
. SCREW, FLAT HEAD (98702-04014-00 )
6K8-14523-10-00
Unavailable
70
. SPRING, PLUNGER
1AE-14135-00-00
Unavailable
71
. WASHER
3H1-14227-00-00
Unavailable
72
. COLLAR
89A-14264-00-00
Unavailable
73
. SPRING
8CH-14589-00-00
Unavailable
74
. CAP
89A-14118-00-00
Unavailable
75
SCREW, PAN HEAD
98517-04016-00
Unavailable
76
. LEVER COMP. 1
89A-14208-00-00
Unavailable
77
SCREW
11H-14991-09-00
Unavailable
78
SCREW, PAN
98517-05012-00
Unavailable
79
CLIP, PIPE
35H-14139-00-00
Unavailable
80
. SHAFT, STARTER LEVER
8CH-14978-00-00
Unavailable
81
CLIP (3G0)
90467-10039-00
Unavailable
82
. HOSE
8CH-14987-10-00
Unavailable
83
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
84
. WASHER
3FV-14962-00-00
Unavailable
85
. LEVER
89A-14588-00-00
Unavailable
86
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
87
. PLUG, SCREW
22F-14115-00-00
Unavailable
88
THROTTLE SENSOR ASSY
2D1-85885-01-00
Unavailable
89
SCREW
8CC-14216-10-00
Unavailable
90
. WIRE, SUB LEAD
8DN-82309-00-00
Unavailable
91
NIPPLE
4N0-14251-00-00
Unavailable
92
. NIPPLE
8EK-14251-00-00
Unavailable
93
. COVER
89A-24452-00-00
Unavailable
